WATER FILL Time-out
- The maximum duration of the water fill phase
is 5 minutes.
- The time-out counter starts at the beginning
of each fill phase, and ends when a "full" signal
is received from the pressure switch (1 - 3).
- If the time required for the pressure switch
to reach "full" condition (1 - 3) is more than
5 minutes, an alarm condition is generated.

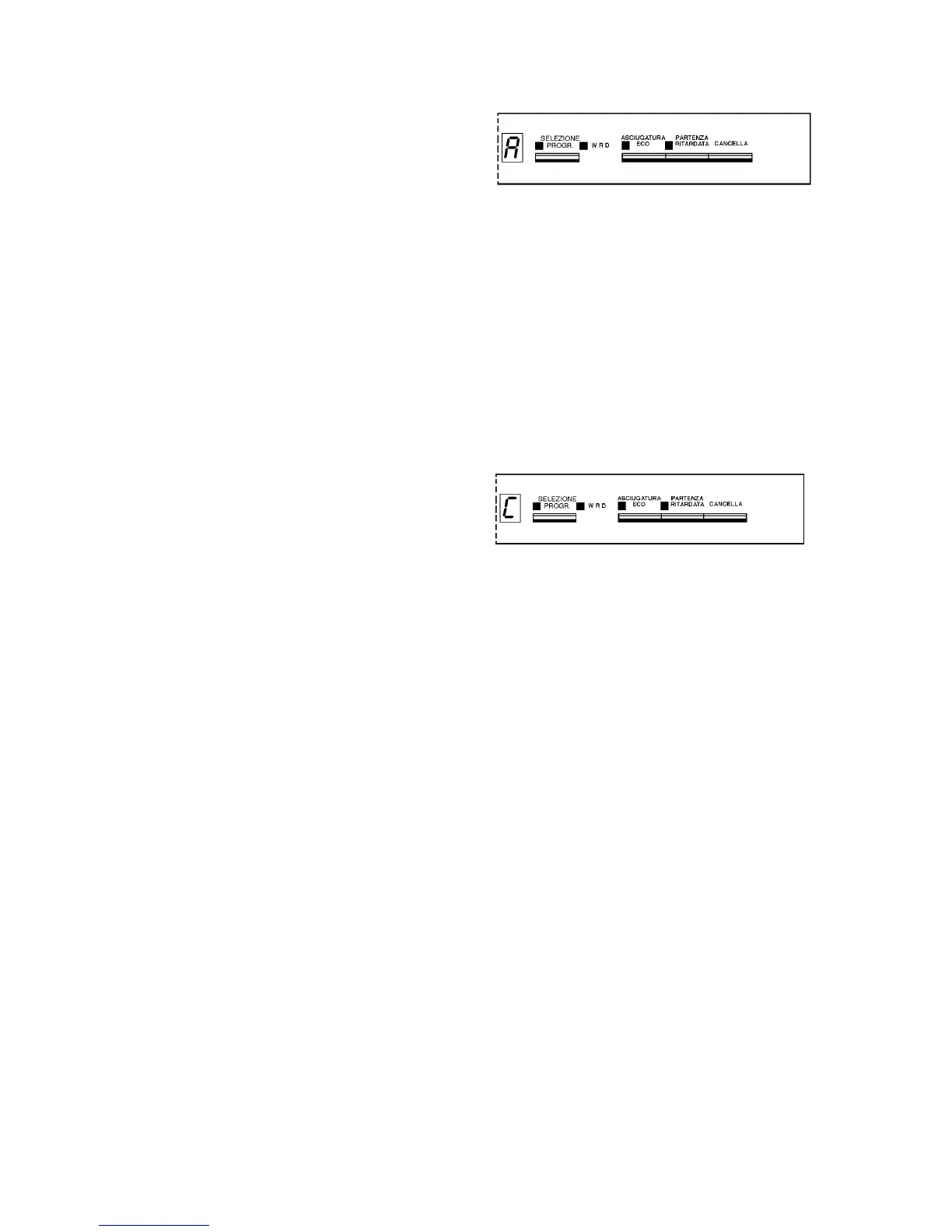

SITUATION
Appliance: STOPPED
When the door is opened:
DIGIT window: A (flashing)
LEDs: OFF
SUPPLEMENTARY FILL Time-out
- The maximum duration of the supplementary
water fill phase after the pressure switch has
been reset is 45 seconds.
- The time-out safety system becomes operative
when the water level is reached (pressure
switch "full" 1 - 3) and remains in operation
until the subsequent drain phase.
- The time-out counter starts as soon as
the pressure switch is reset to "empty" (1 - 2)
and ends when the pressure switch returns
to "full" (1 - 3).
- If the time required for the pressure switch
to return to the "full" condition (1 - 3) is more
han 45 seconds, an alarm condition is generated.
- If more than one supplementary fill is performed
because the pressure switch returns more
than once to "empty" (1 - 2), the total duration
of the supplementary fill phases must not
exceed 45 seconds. If this occurs, an alarm
condition is generated.
SITUATION
Appliance: STOPPED
When the door is opened:
DIGIT window: C (flashing)
LEDs: OFF
- 41 -
