2010 dmm 43/96 599 73 68-54
10.2.2 Operating principle of 4-compartment conveyor

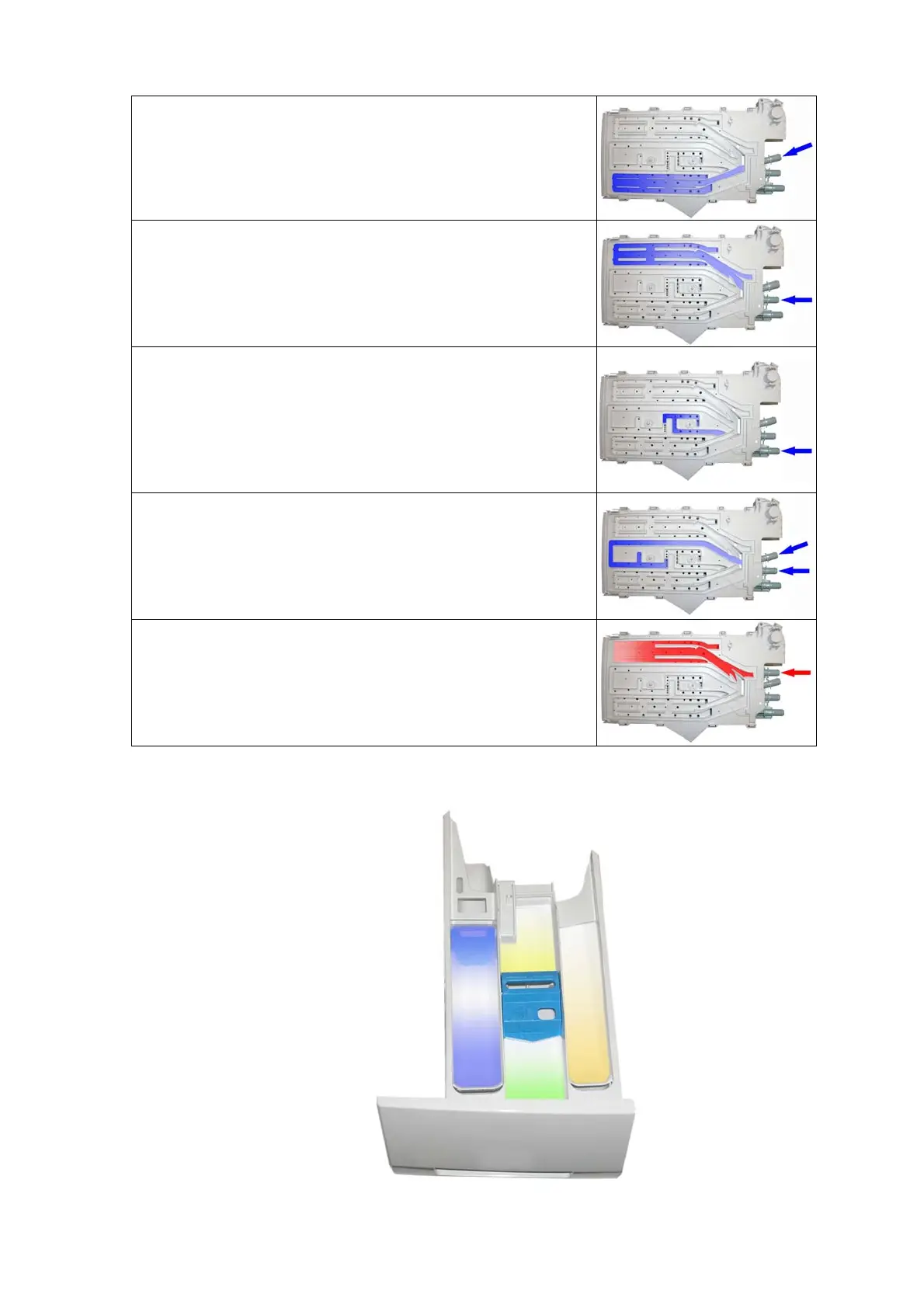

10.3 Detergent dispenser
Water fill to pre-wash compartment
(pre-wash solenoid)
• This solution is used with the four compartment tray: the detergent
in compartment “a” is loaded at the start of the pre-wash phase.
Water fill to wash compartment
(wash solenoid)
• In all models: compartment “b” is used to contain the detergent
loaded at the start of the washing.
Water fill to activating wash compartment
• In models with 4-compartment dispenser trays, the filling in
tray “d” is performed by a purpose-provided solenoid valve
during washing, when the water has reached 40°C.
• In models with 3-compartment dispenser trays, this section is
not used.
Water fill to conditioner compartment
(pre-wash and wash solenoid valves)
• In all models: compartment “c” is used for the conditioner,
which is loaded at the start of the final rinse. The prewash and
wash solenoid valves are activated simultaneously.
Hot water filling
(hot water solenoid)
• In models with a hot water solenoid valve, the hot water
solenoid valve is activated to fill water into the wash
compartment.
a
b
c
d
