Electrolux 7 Series User Manual

2010 dmm 46/96 599 73 68-54

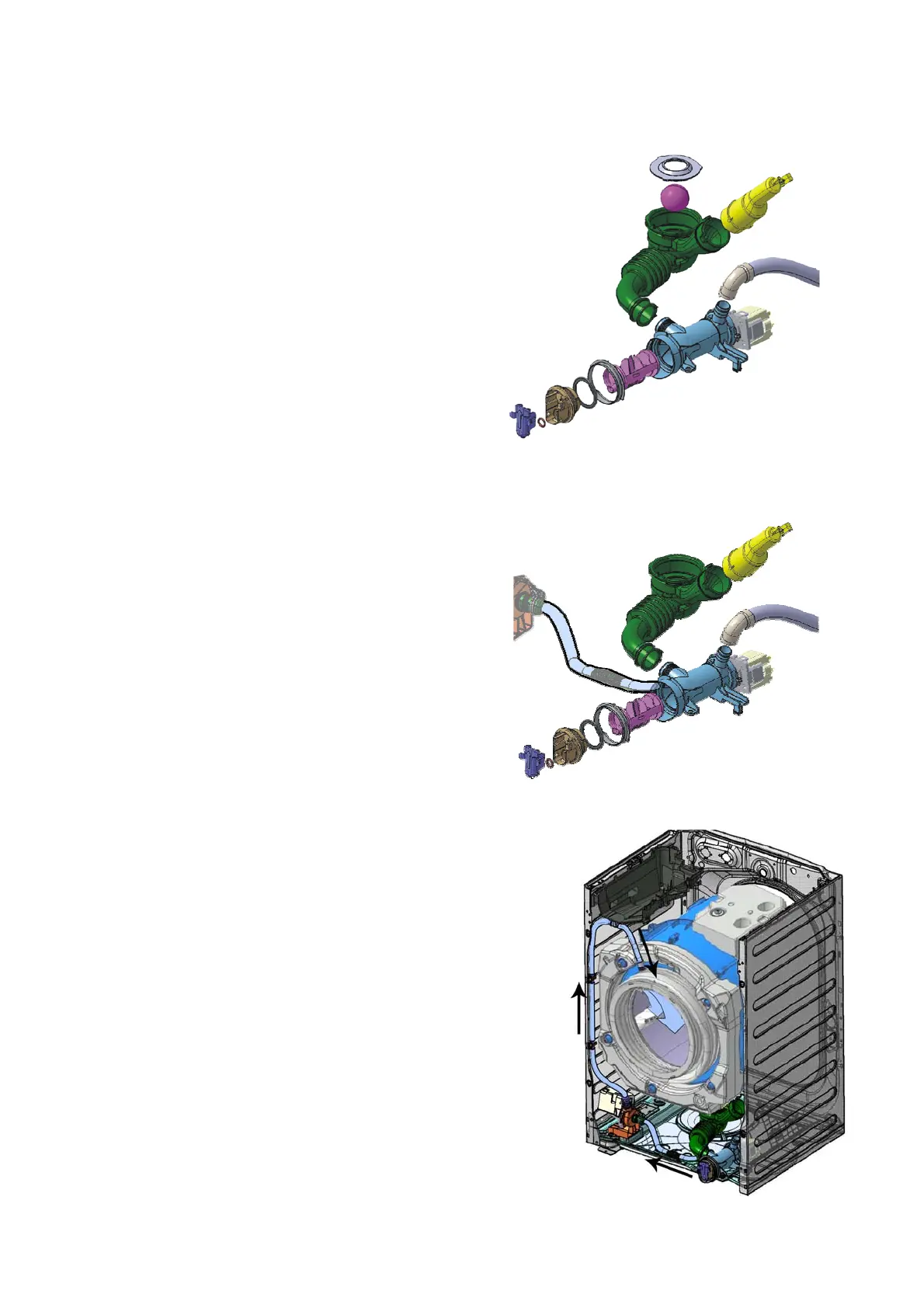

10.5 Water circuit
10.5.1 OKO version drain circuit
1. Sphere locking ring
2. Sphere
3. Pressure chamber
4. Filter body tub pipe
5. Drain pipe
6. Drain pump
7. Filter body
8. Filter
9. Filter body seal
10. Filter knob seal
11. Filter knob
12. Closing lever seal
13. Closing lever
10.5.2 JET version drain circuit
1. Filter body tub pipe
2. Pressure chamber
3. Drain pipe
4. Drain pump
5. Filter body
6. Filter
7. Filter body seal
8. Filter knob seal
9. Filter knob
10. Closing lever seal
11. Closing lever
12. Circulation pump suction tube
13. Circulation pump
10.5.3 JET circuit
The water circulating through the drain circuit (1) during the
washing is suctioned along the tube (2) by the circulation
pump (3) which conveys it through the tube (4) into the
bellow seal and from here into the laundry in the drum.
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13

Electrolux 7 Series Specifications

General

Steam Function	Yes
Color	White
Reversible Door	Yes
Spin Speed	1400 RPM
Type	Front Load
Programs	Cottons, Synthetics, Delicates, Wool, Refresh, Anti-Allergy, Bedding, Quick 20, UltimateCare
