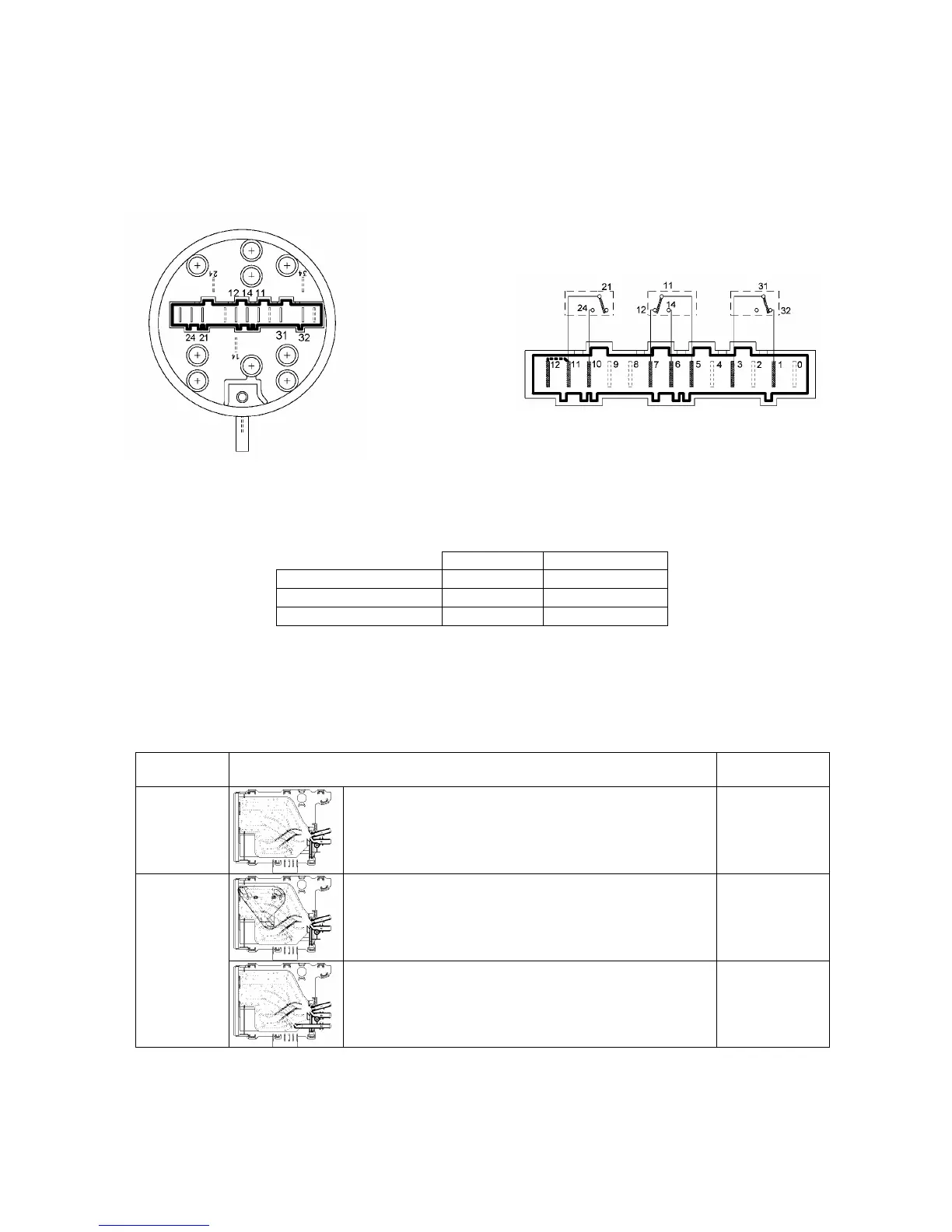

10.3 Pressure switch
Control of the water level is performed by a two or three-level pressure switch which functions as follows:
• contact 11-14: anti-boiling safety level
• contact 21-24: anti-boiling safety level
• contact 31-32: anti-overflow safety level (not all models)
10.3.1 Pressure switch settings
Full (mm) Refill (mm)
Anti-boiling level
50± 3 30± 3
Anti-boiling level
50± 3 30± 3
Anti- overflow level
390± 15 240±50
10.4 Detergent dispenser
The EWM 2000 plus electronic system and LCD can control different types of dispensers:
Type
Detergent dispenser No. of solenoid
valves
3 compart-
ments
Pre-wash/Stains – Wash – Conditioner
(pre-wash and stain are in alternance)
2
Pre-wash/Stains – Wash – Bleach - Conditioner
(the pre-wash/stain and conditioner compartment are
linked together with a “intersection”)
2
4 compart-
ments
Pre-wash/Stains – Wash – Bleach - Conditioner
(pre-wash and stain are in alternance)
3
