A.6
Dimensional drawings
Sensors are specified separately.
Dimensions are in inches (millimeters).

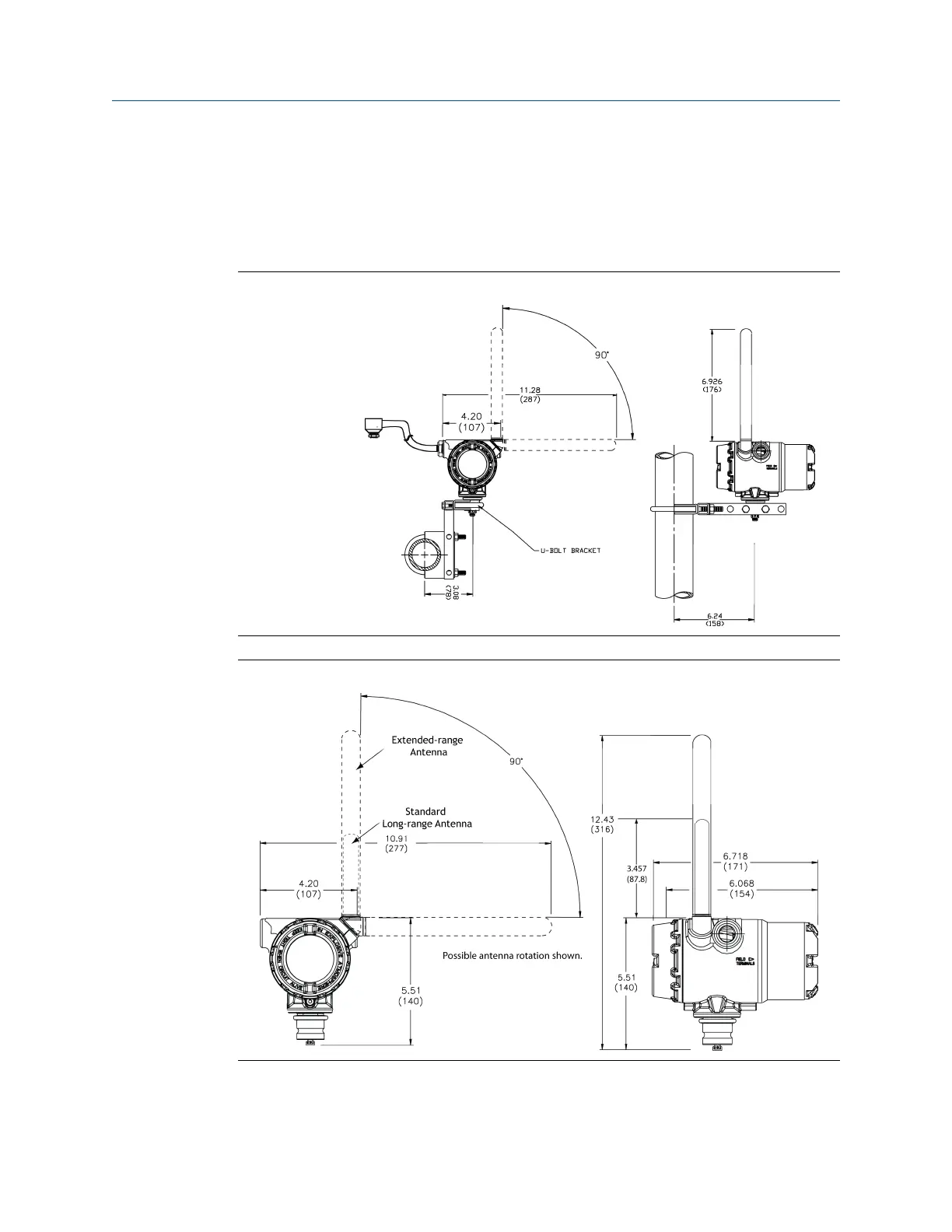

CSI 9420 with sensor and mounting brackets
Figure A-1:
CSI 9420 with long-range and extended antennas
Figure A-2:
