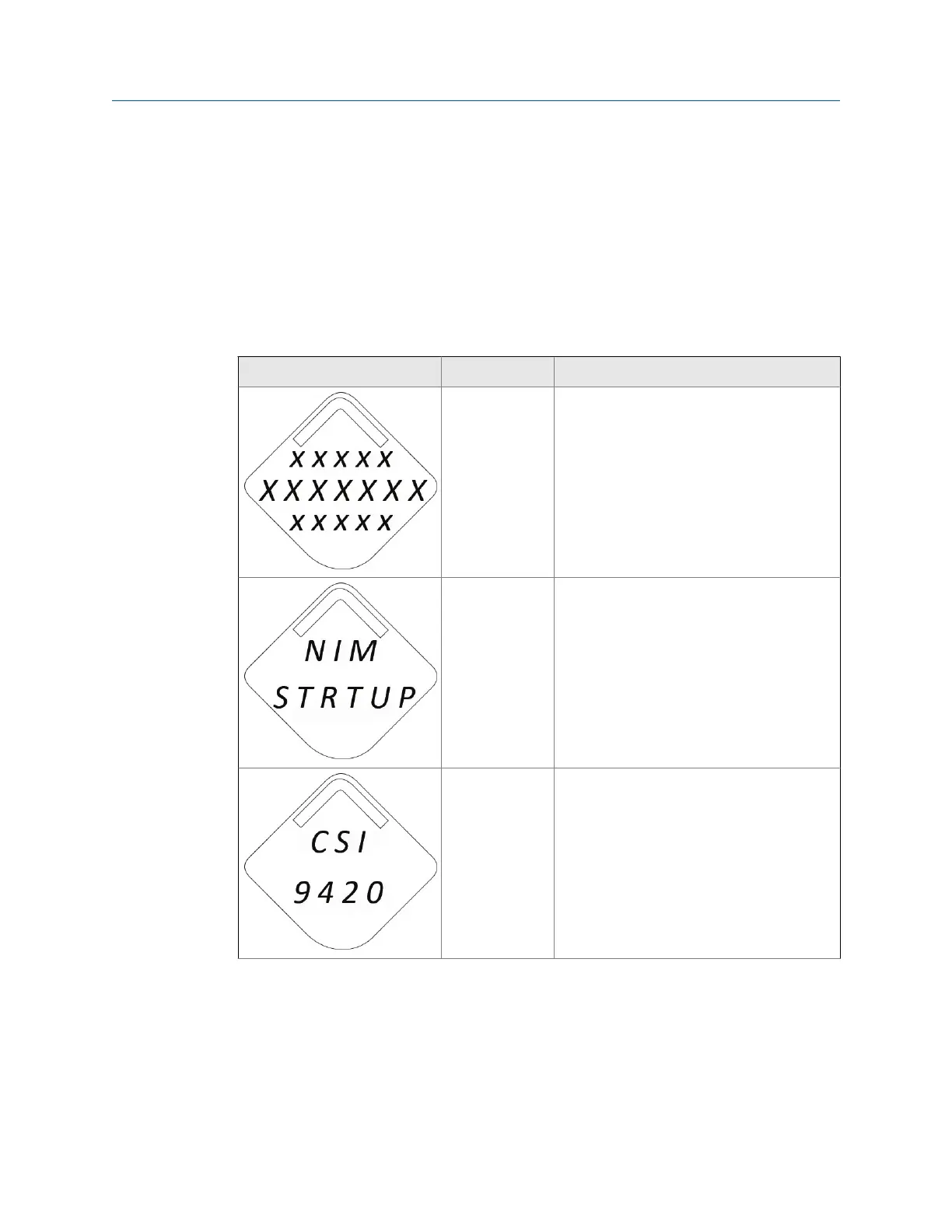

Appendix C
LCD screen messages
Startup screen sequence
These are the screens when the power module is first connected to the CSI 9420.
LCD screen
Meaning
Description
All Segments On
Used to visually determine if there are any
bad segments on the LCD.
NIM Startup
The device is waiting for the radio to initialize.
This takes approximately 15 seconds.
Device Name
Used to determine the device name.
LCD screen messages
MHM-97408, Rev 15
129
134
