1592040000 XR70T EN v1.1 2019.07.09 XR70T 35/40

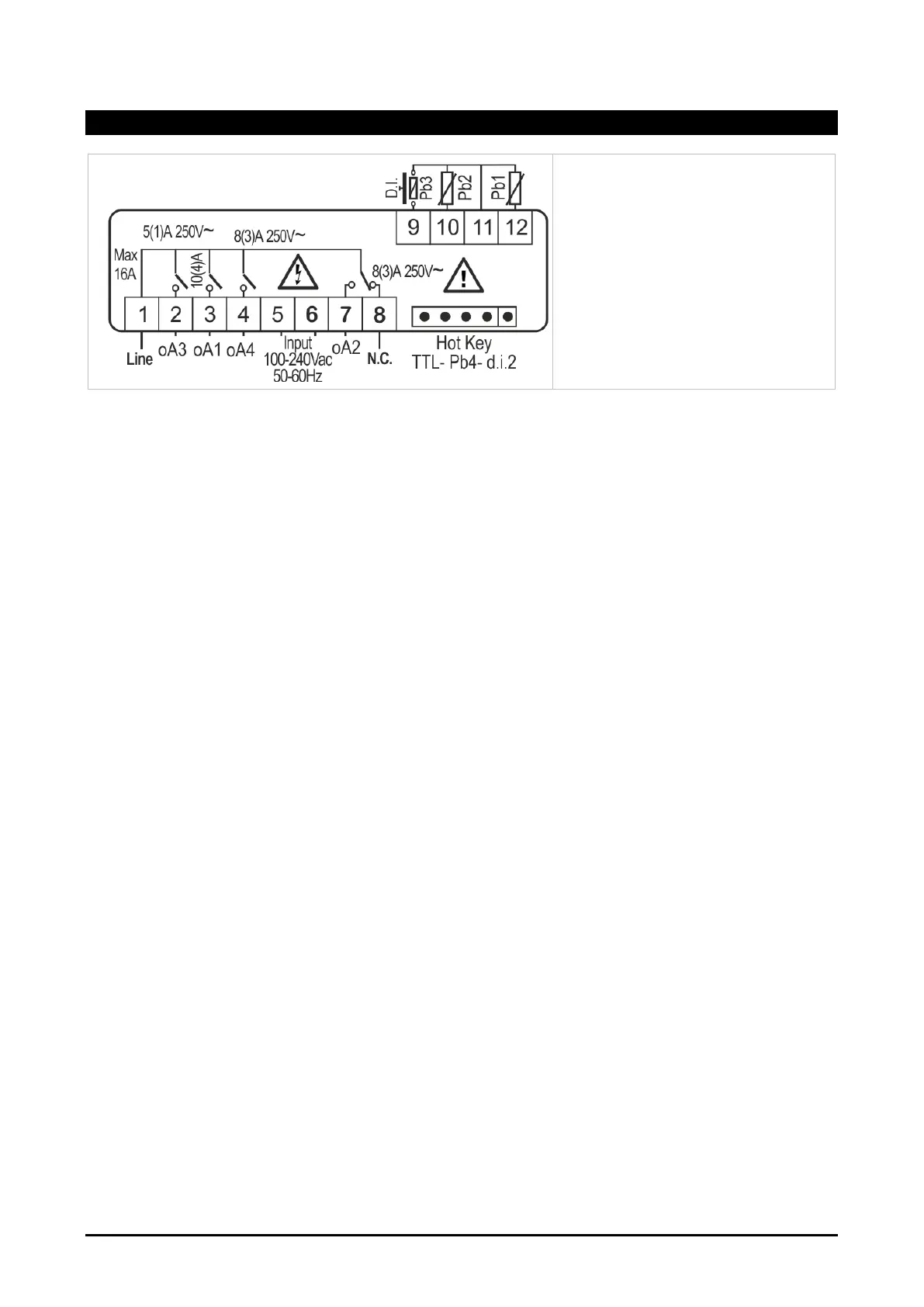

17. WIRING DIAGRAM
Power Supply: 110VAC, 230VAC or
100-240VAC, 50-60Hz
oA1: always set as main compresso
output (CP1)
