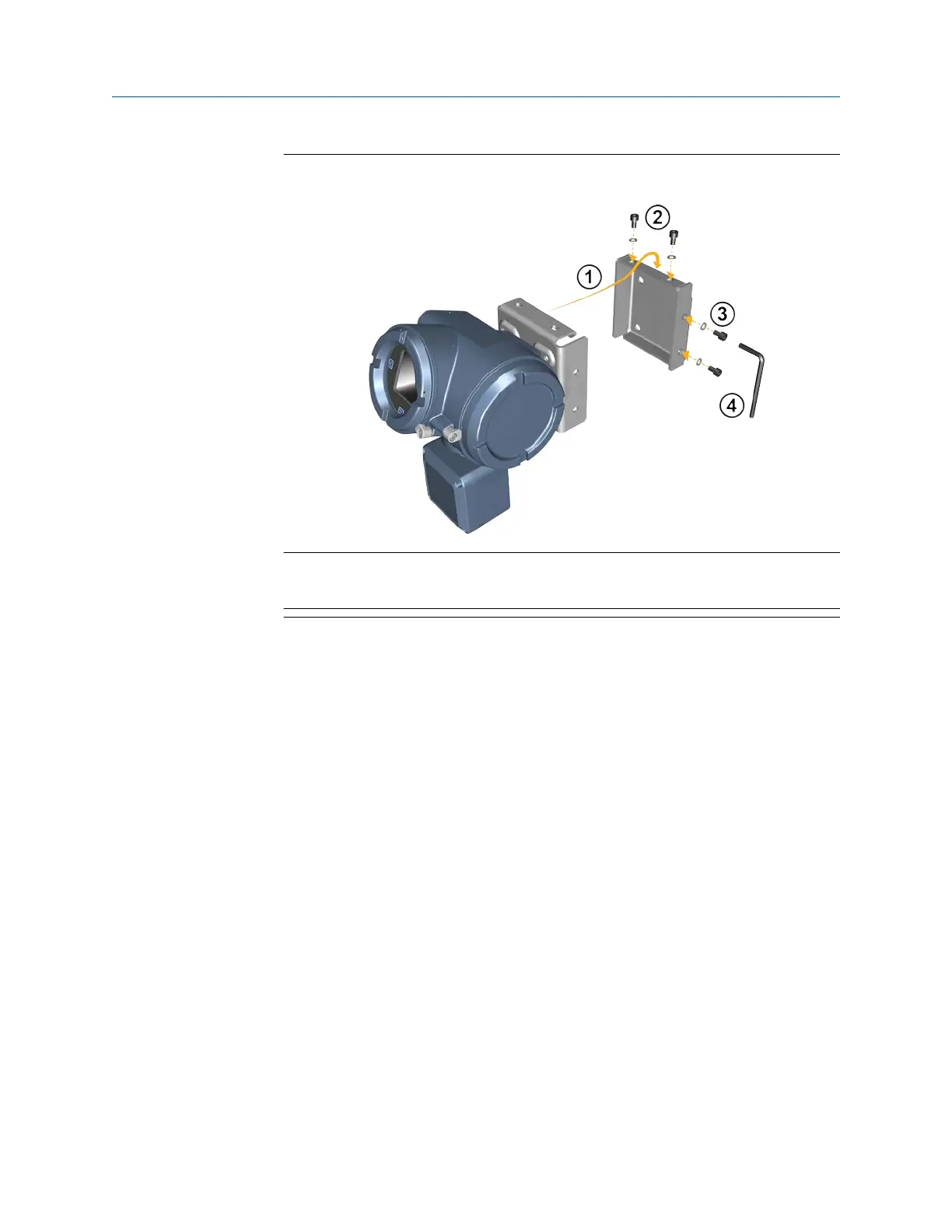

Figure 2-3: Attaching and securing a painted aluminum transmitter to
mounting bracket
Tip
To ensure the mounting bracket holes are aligned, insert all attachment bolts into
place before tightening.
2.3 Wire a remote-mount transmitter to the sensor
Use this procedure to wire a four-wire or nine-wire remote-mount transmitter to the
sensor.
Prerequisites
• Prepare the nine-wire cable as described in the Micro Motion 9-Wire Flow Meter Cable
Preparation and Installation Guide.
• Connect the cable to the sensor-mounted core processor or junction box as described
in the sensor documentation. You can access all product documentation on the
documentation DVD shipped with the product or at Emerson.com.
Mounting and sensor wiring Installation Manual
October2023 00825-0100-5710
14 Micro Motion 4700 CIO Transmitter
