6 Using the display controls
The transmitter display interface includes a display (LCD panel) and four capacitive buttons
– left, up, down, and right arrow keys – used to access the display menus and navigate the
display screens.
Procedure
1. To activate a capacitive button, press the desired button that is designated with
arrows (up, down, left, and right).
You can activate the capacitive button through the lens. Do not remove the
transmitter housing cover.
Important
The transmitter only detects one button selection at a time. Be sure to press your
thumb or finger on a single capacitive button.

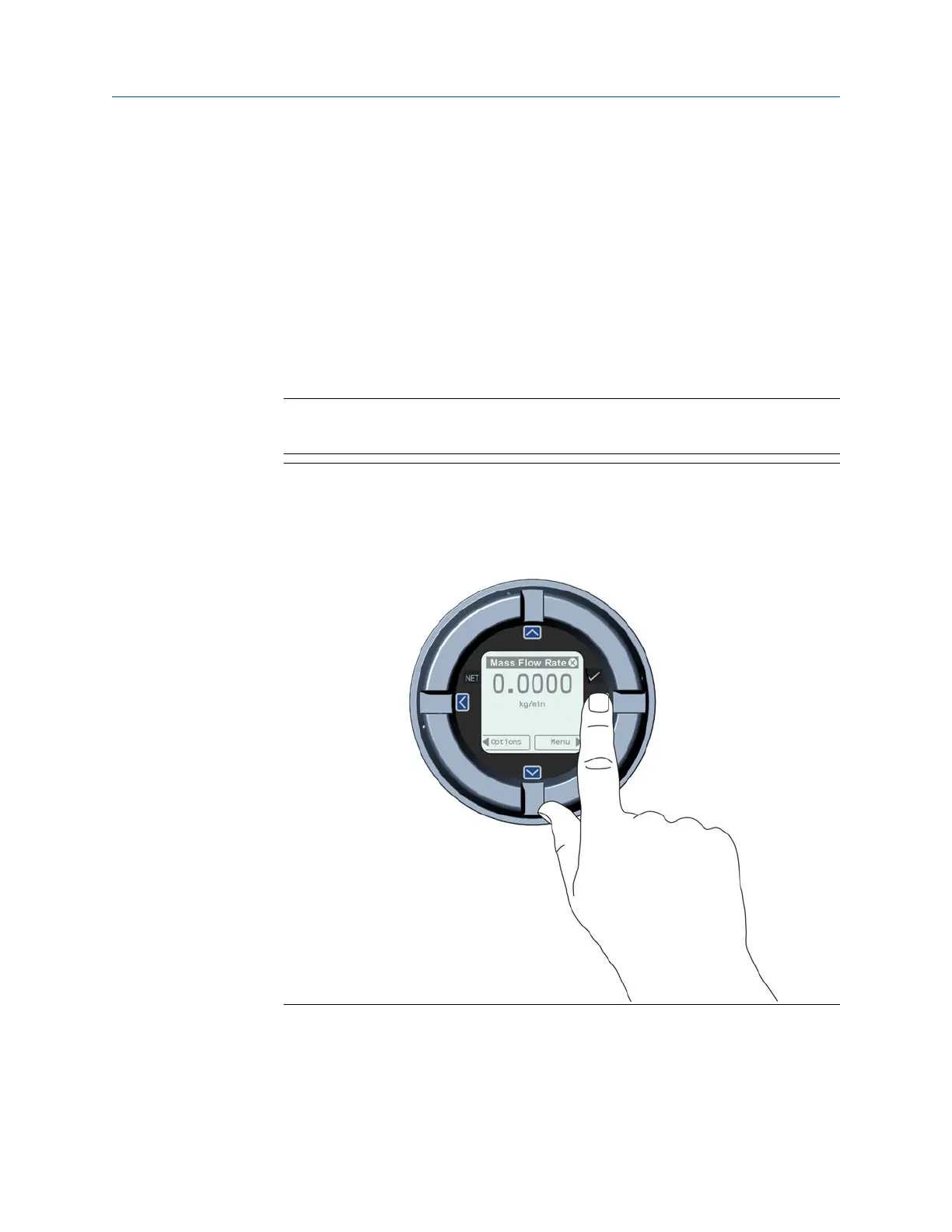

Figure 6-1: Proper finger positioning for activating a capacitive button
2. Use the arrow indicators on the display screen to identify which capacitive button to
use to navigate the screen (see examples 1 and 2).
Installation Manual Using the display controls
00825-0100-5710 October2023
Installation Manual 41
