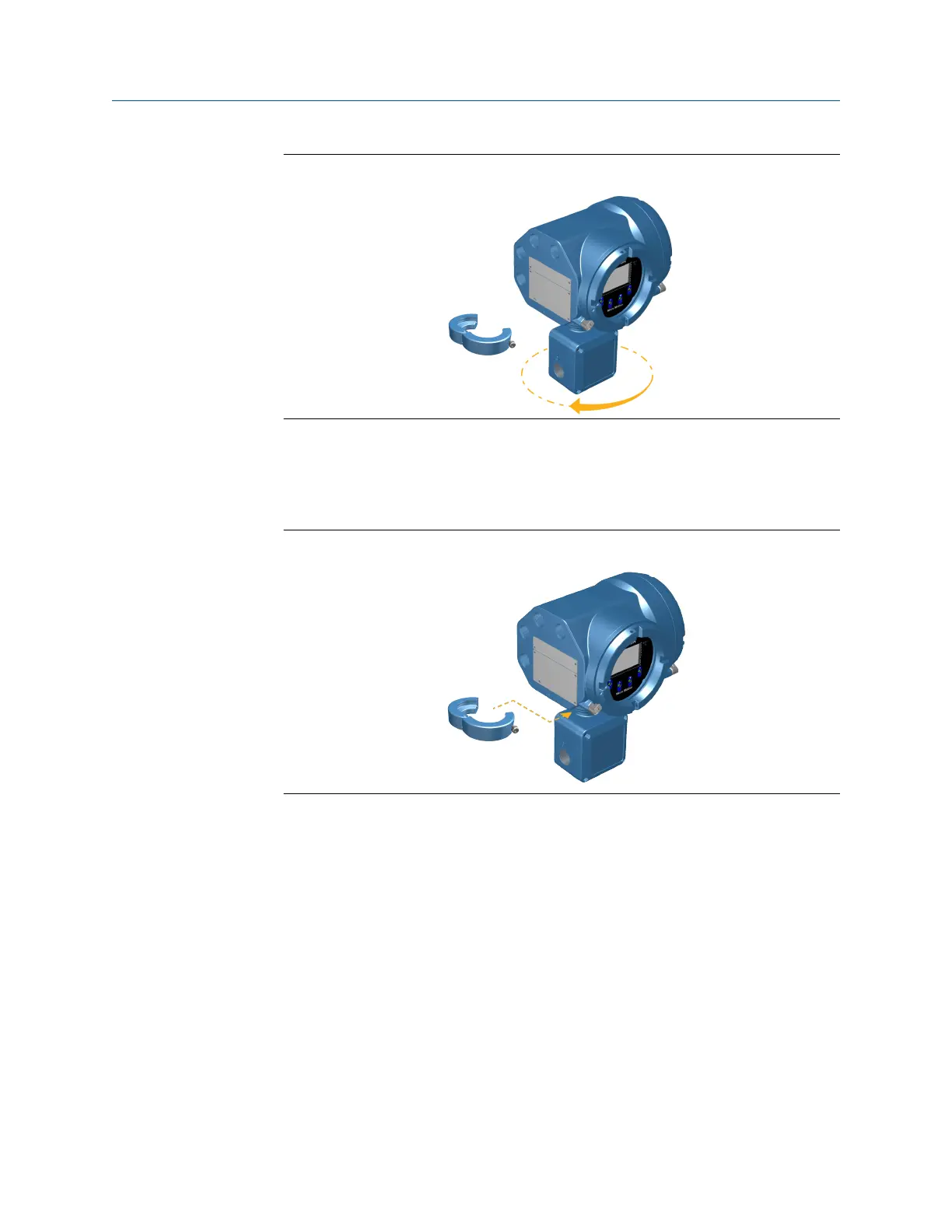

Figure 3-17: Rotate the transmitter on the junction box
3. Gently set the junction box into its new position, confirming that the position is
locked.
4. Replace the clamp in its original position and tighten the cap screw. Torque to 28 in
lbf (3.16 N m) to 30 in lbf (3.39 N m).
Figure 3-18: Re-attach the clamp
Mounting and sensor wiring Installation Manual
April 2022 MMI-20027478
24 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs
