Emerson Micro Motion 5700 User Manual

4.6.2 Wire the discrete output (externally powered)
Use this procedure to wire the externally-powered discrete output for Channel B or C.
Procedure
Wire to the appropriate output terminal and pins.

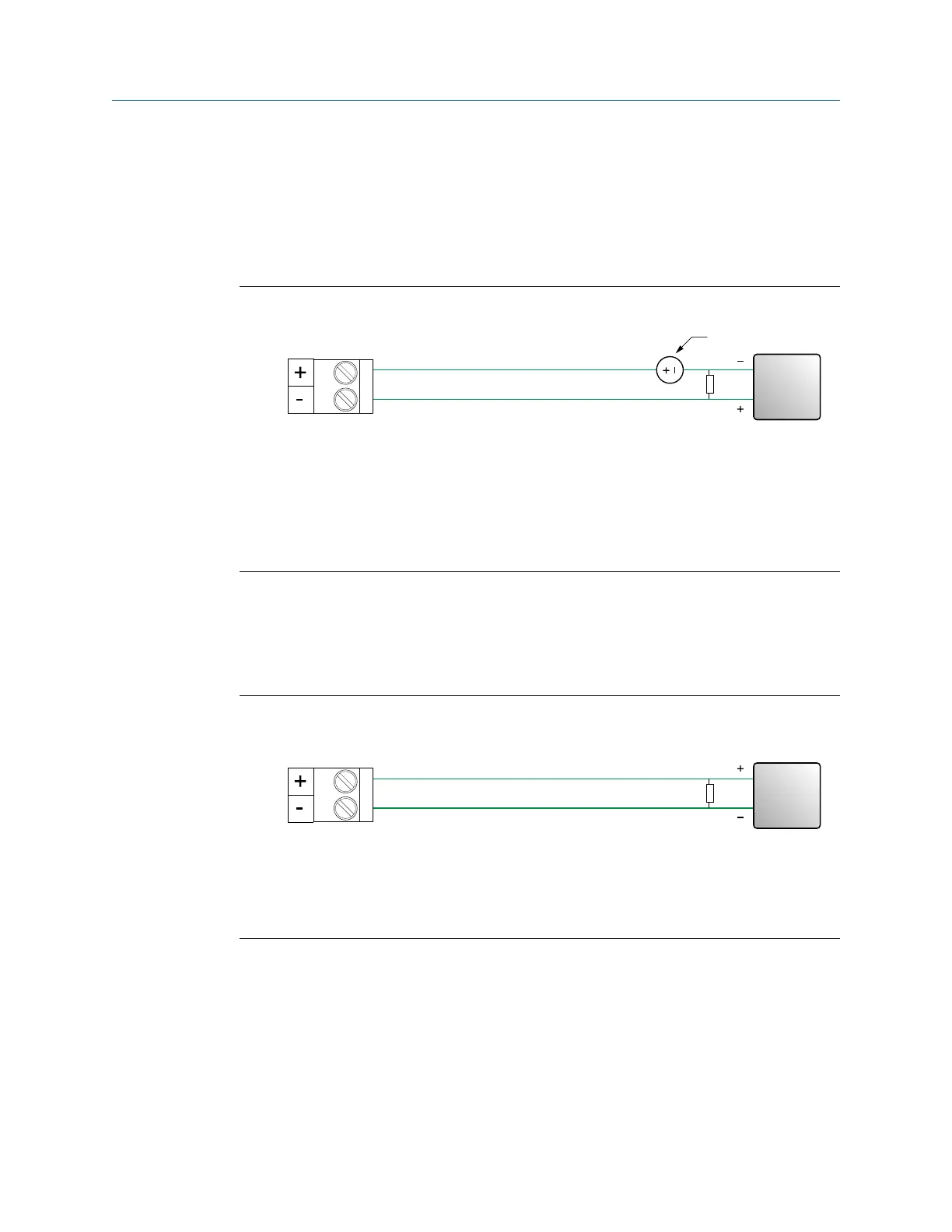

Figure 4-18: Discrete output wiring (externally powered)
A
B
E
D
C
A. Discrete output
B. Channel B or C
C. 3–30 VDC (maximum)
D. 500 mA current (maximum)
E. Counter
4.6.3
Wire the discrete output (internally powered Channel D)
Procedure
Wire to the appropriate output terminal and pins.
Figure 4-19: Discrete output wiring (internally powered)
A
7
8
C
B
A. Discrete output
B. See Figure 4-20 for output amplitude versus load resistance
C. Counter
Installation Manual Wiring the channels
MMI-20027478 April 2022
Installation Manual 35
