A.3.1 Ethernet Config Tool system requirements
• Pentium 133 MHz or higher
• 10 MB of free space
• 8 MB RAM
• Windows NT v4.0 or higher, Windows 2000, or Windows XP
• Internet Explorer v4.01 SP1 or higher
A.3.2 Install the Ethernet Config Tool
Procedure
1. Install the software program. Locate and run the EtherNet/IP Module setup
program on the EtherNet/IP Module Resource CD and follow the on-screen
instructions.

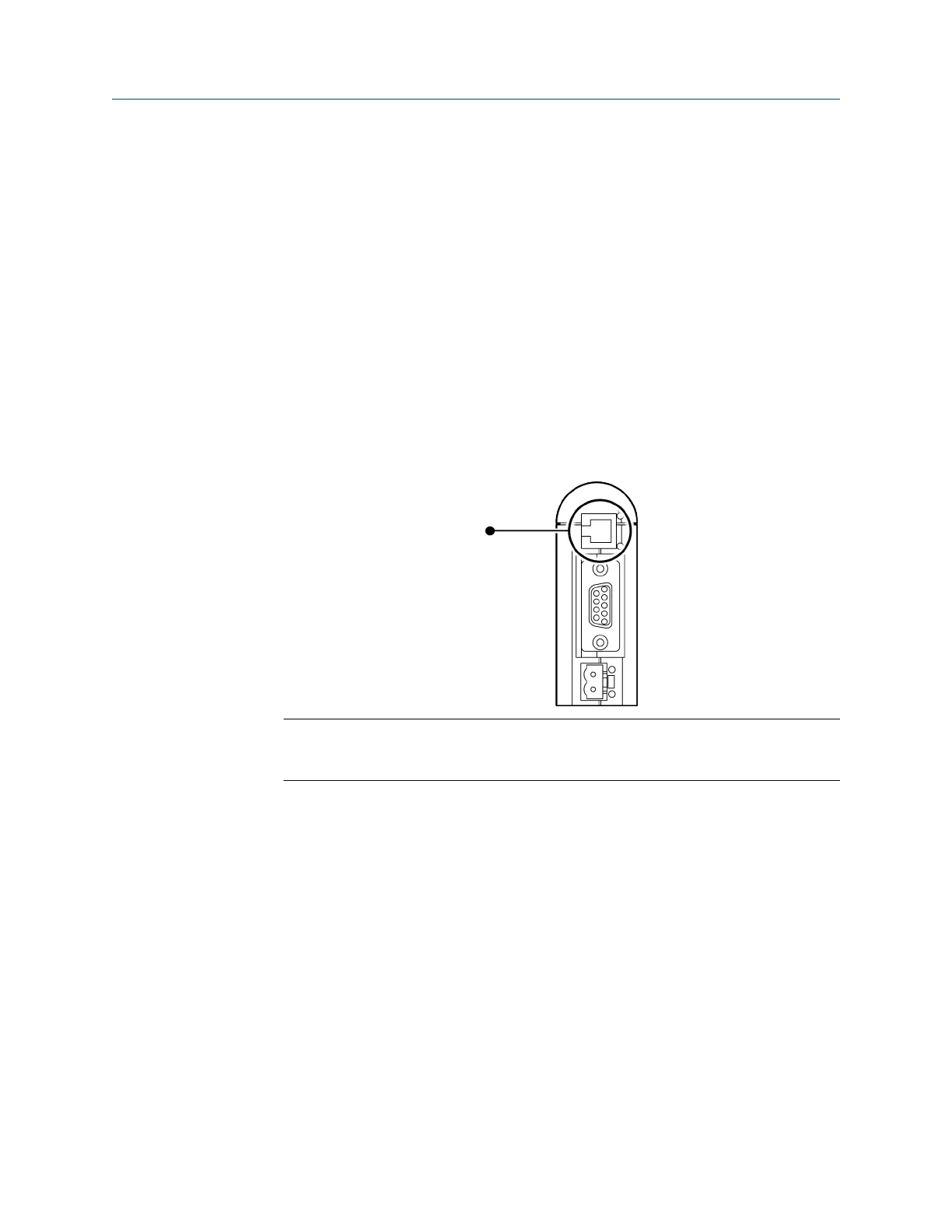

2. Connect the configuration cable from your PC to the EtherNet/IP Module.
Note
For information on the Micro Motion Ethernet Config Tool user interface, see the
Anybus Communicator manual.
Related concepts
Micro Motion Ethernet Config Tool installation (optional)
A.4 Modbus serial network interface
The Modbus serial network is based on an RS-485 physical layer.
A.4.1
Bias resistors
When idle, RS-485 enters an indeterminate state, which may cause the serial receivers to
pick up noise from the serial lines and interpret this as data. To prevent this, the serial lines
should be forced into a known state using pull-up and pull-down resistors, commonly
known as bias resistors.
Connector pin assignments User Guide
January 2019 MMI-20019808
32 Micro Motion EtherNet/IP Module
