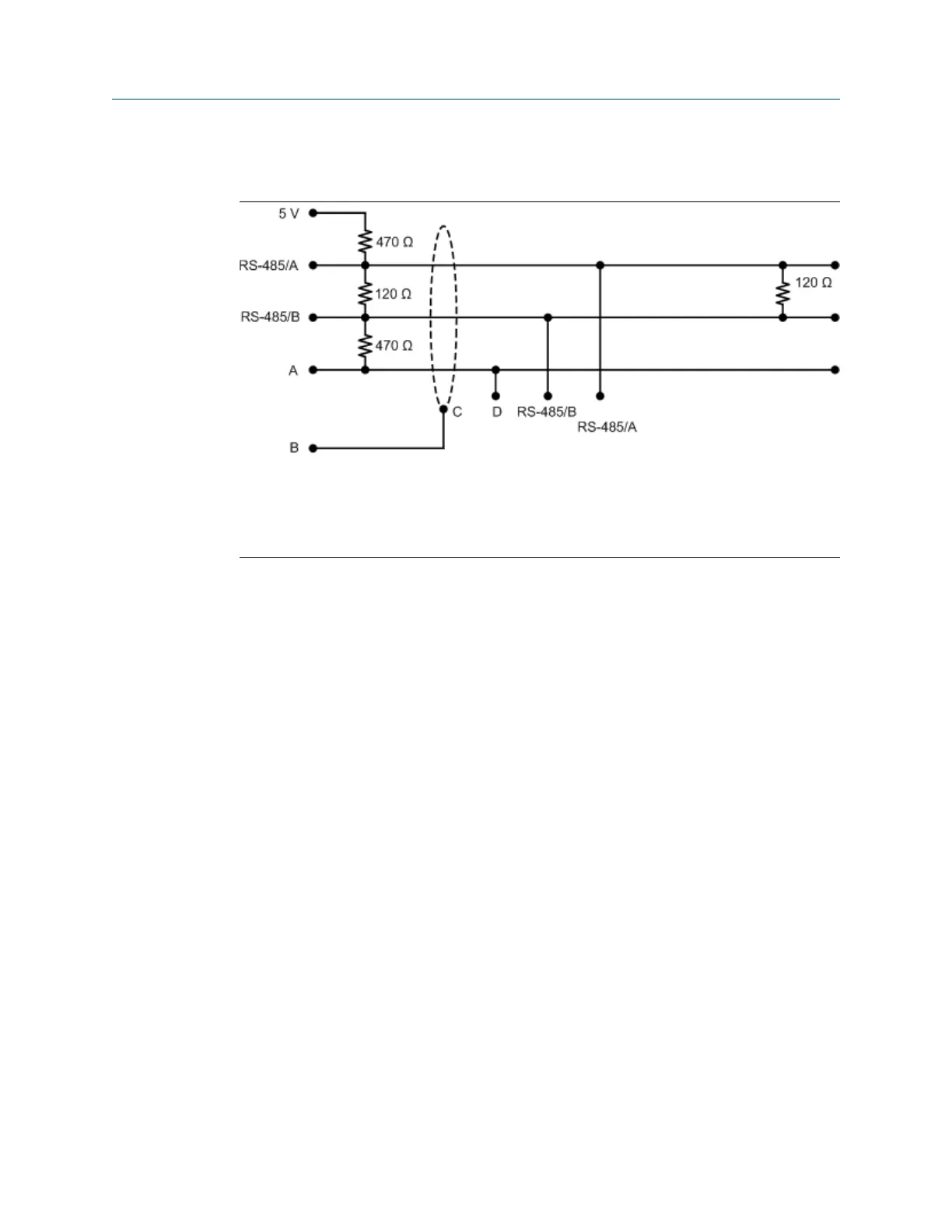

A.5 Typical connection
A. Signal ground
B. Cable shield
C. Node
D. Signal ground
Connector pin assignments User Guide
January 2019 MMI-20019808
34 Micro Motion EtherNet/IP Module
