Chapter 5 Use Of Monitoring Module M800D
This chapter introduces the front panel and functional keys briefly, and expounds screen contents, access method,
system controlling, information querying, parameter setting, access M800D through web and NMS, and parameter
setting guidance.
5.1 Operation Panel

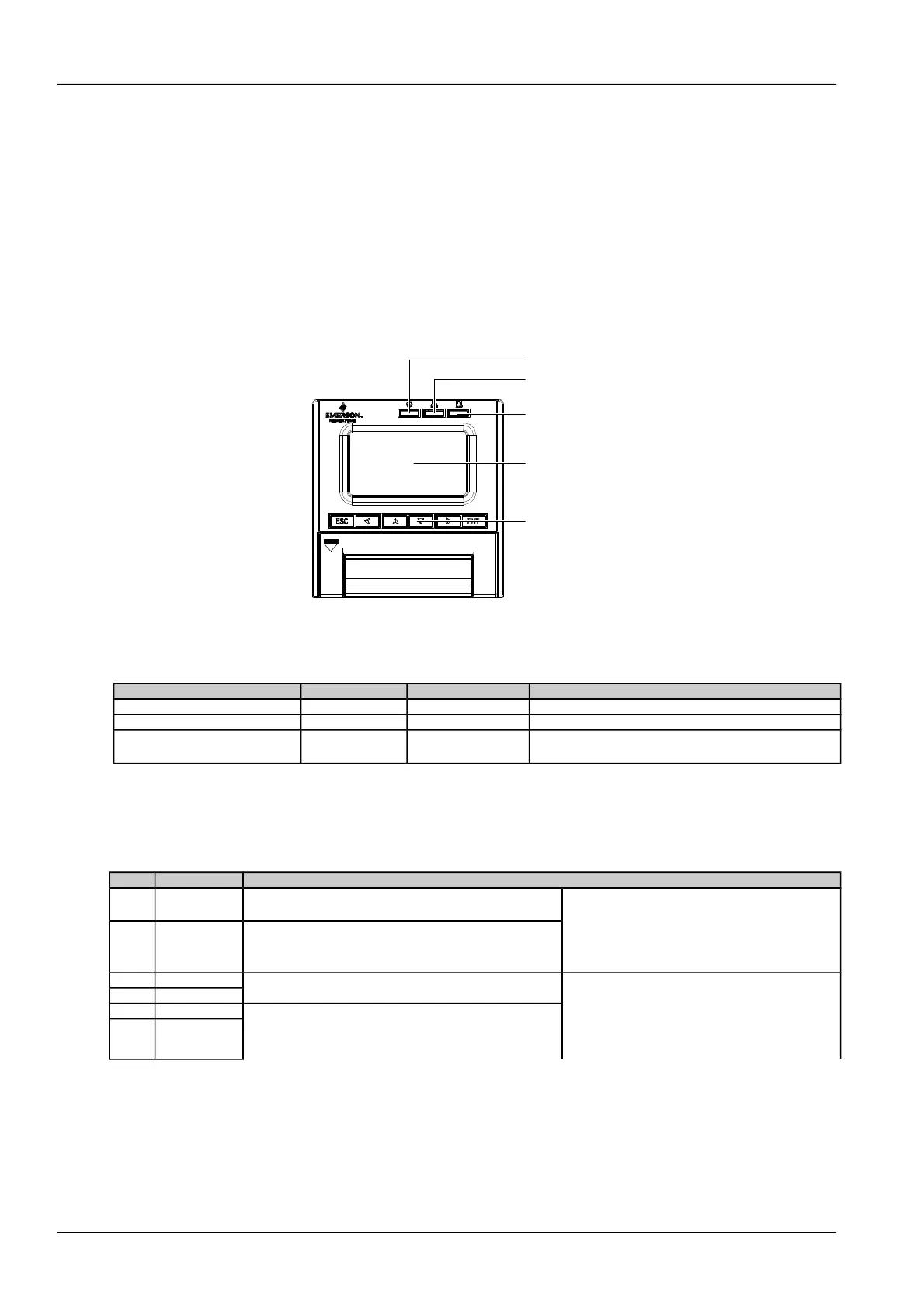

M800D Panel is illustrated in Figure 4-1:
Figure 1.1 M800D panel
Functions of LED indicators are illustrated in Table 4-1.
Table 1.2 Functions of LED indicators
LED Normal status Abnormal status Cause
Run Indicator (green) On Off No power supply
Protection Indicator (yellow) Off On The power system has at least an observation alarm
Alarm Indicator (red) Off On
The power system has at least a major alarm or critical
alarm
M800D controller uses a 128 × 64 dot- matrix LCD unit. It has 6 functional keys. Its interface is easy-to-use and it
supports multi-language (English, Chinese, French, Spanish, Portuguese, Italian and Swedish) display. The functions
of these 6 keys are shown in Table 4-2:
Table 1.3 Functions of M800D keys
Keys Name of keys Functions
ESC Return Key
Press this key to back to previous menu or cancel a
setting of a parameter
Press ESC and ENT together to reset M800D
ENT Enter key
Press this key to go to next menu or highlight editable
area for parameter setting, validate the change made to
a parameter setting
▲ Up
Press ▲ or ▼ to scroll through the menus
These four arrow keys can be used to change
the value of a parameter: Press ▲ or ▼ to move
the cursor to the parameter to be changed and
press ◄ or ► to change the value of a
parameter
▼ Down
◄ Left
Change the edit value of a parameter. In main screen,
press ◄ or ► to adjust the contrast of LCD
► Right
