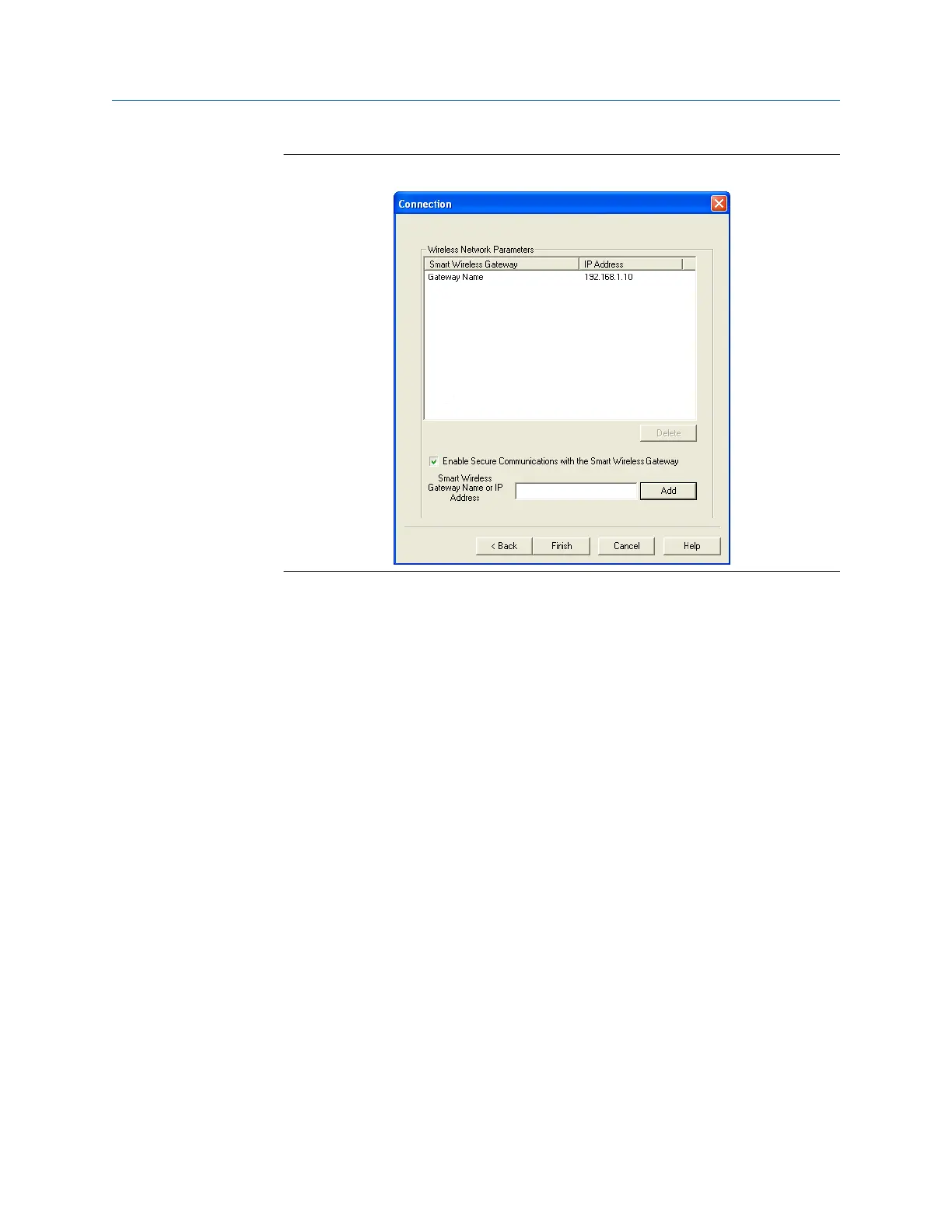

Figure 4-3: Wireless Network in the Network Configuration
4.5.2 Setup a HART modem for AMS Wireless Configurator
Use the following procedure to configure a HART modem for AMS Wireless Configurator:
Procedure
1. Open the Network Configuration application.
2. Select Add…
3. Select HART modem and select Install…
4. Select Next.
5. Enter a name for the HART modem and select Next.
6. Select the HART master type (default is AMS Wireless Configurator will be Primary
HART master) and select Next.
7. Select the COM port for the HART modem and select Next.
8. Check the box to Check to support Multi Drop devices.
9. Check the box to Include WirelessHART Adapter.
10. Select Finish to close the configuration window.
11. Select Close to exit the Network Configuration application.
4.6
Licensing and credits
The latest licensing agreements are included on each disk of the software pack.
Commissioning Reference Manual
September 2020 00809-0200-4420
40 Emerson.com/Rosemount
