enphase Envoy Communications Gateway User Manual

Envoy Installation and Operation
 2013 Enphase Energy Inc. 141-00011 Rev 05
45
Clear GFI Tripped Condition
This condition occurs only with the M215, M190, D380, M210, M200, and M175 microinverters. A solid
red status LED on the microinverter indicates a ground fault (GFDI) error. The LED will remain red and
the fault will continue to be reported by the Envoy until the error has been cleared.
If a microinverter registers a GFI Tripped condition, you can attempt to clear this condition through the
Envoy Interface. An Envoy is required to send the clear-gfi message to clear the condition. If the condition
does not clear after you perform the following procedure, contact Enphase Energy customer support at
support@enphaseenergy.com.
To send the clear-gfi message to a microinverter:

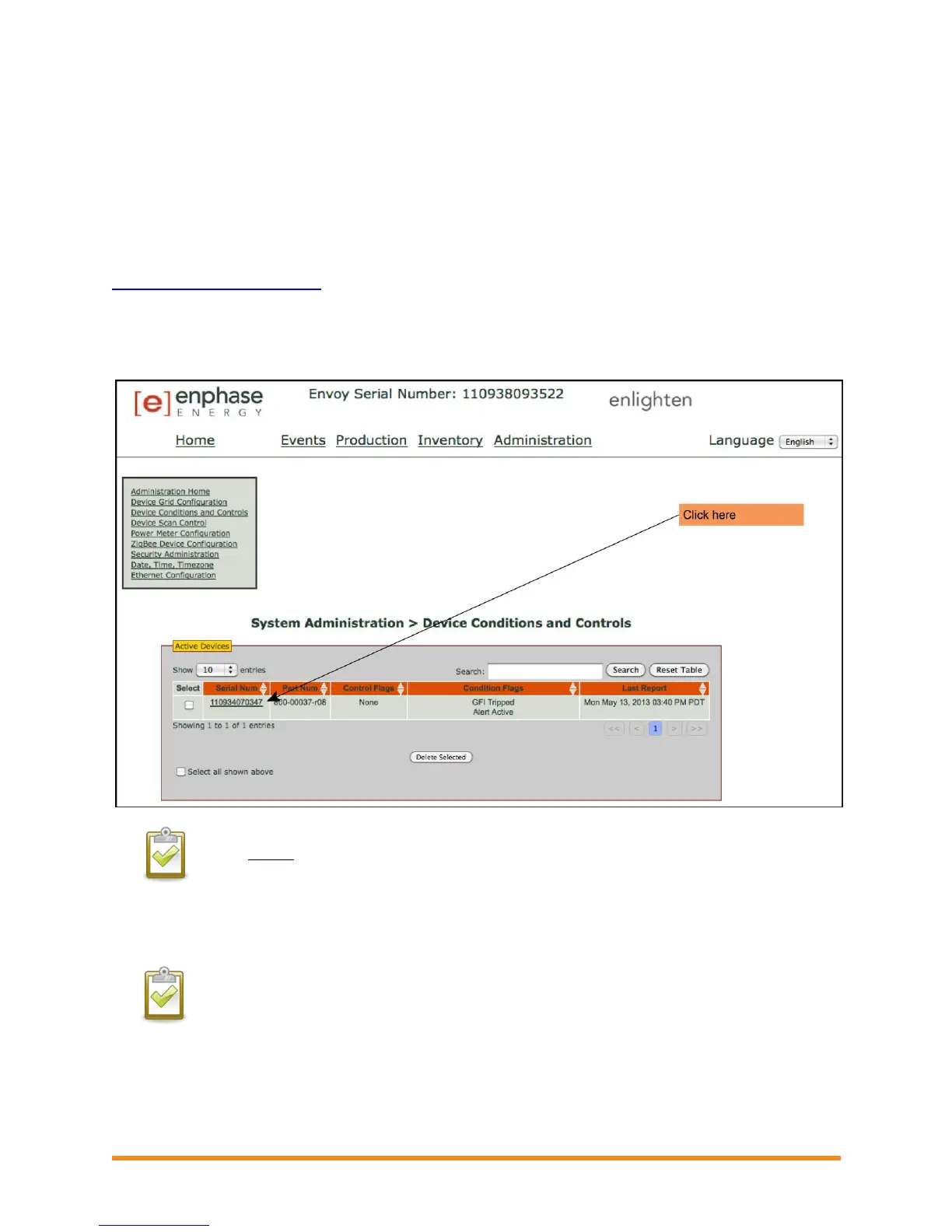

1. From the Administration menu, choose Device Conditions and Controls.
NOTE: Do not click or select the box under the column labeled Select.
2. Click on the serial number of the unit showing the GFI condition.
The Control Flags screen appears.
CAUTION: The other control flags (reboot and cmd-alert) on this screen should be used only
when recommended by Enphase. Their functions are:
 reboot - reboots the inverter
 cmd-alert - clears a condition flag for a command sent

enphase Envoy Communications Gateway Specifications

General

Product Type	Communications Gateway
Compatibility	Enphase microinverters
Weight	2.2 lbs
Power Supply	12V DC
Communication	Ethernet, Wi-Fi
Monitoring	Real-time monitoring
