Epson EH-TW7100 User Manual

Preparing
17
Projection Distance and Lens Shift Maximum Values
The size of the projection increases as the projector is moved away from the screen.
Use the table below to setup the projector at the optimum position from the screen. The values given here
are for your reference only.
The maximum lens shift adjustment values are shown in the following table.
c
The projected image becomes smaller after correcting distortion. Increase the projection distance
to fit the projected image to the screen size.

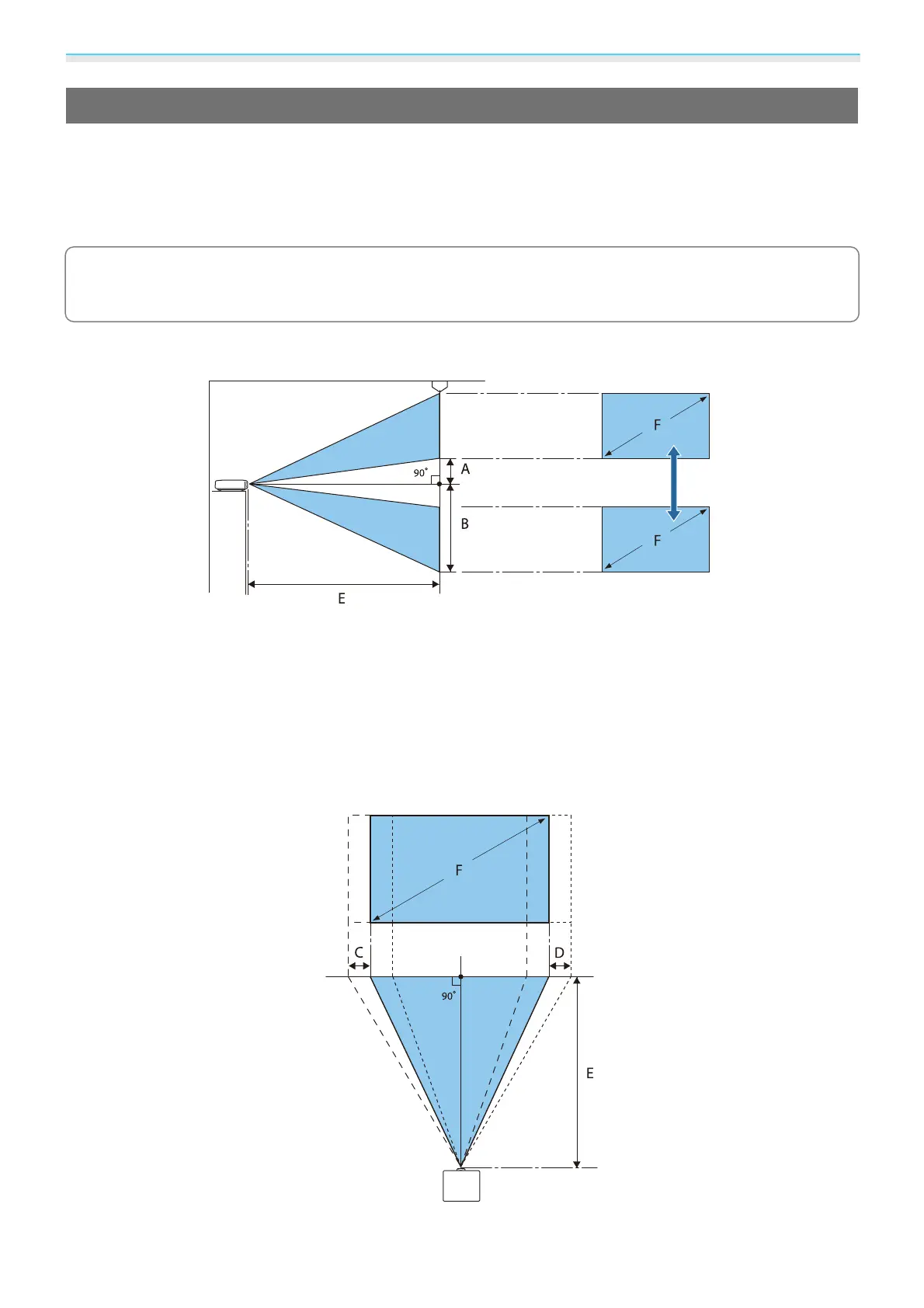

When adjusting the projection position vertically in lens shift
A : Distance from the center of the lens to the bottom edge of the projected image (when lens shift is raised
to its highest level)
B : Distance from the center of the lens to the bottom edge of the projected image (when lens shift is lowered
to its lowest level)
E : Projection distance from the projector to the screen
F : Size of the projected image
When adjusting the projection position horizontally in lens shift
C : Lens center movement distance when the projector is moved (when lens shift is set to maximum left)

Epson EH-TW7100 Specifications

General

Matrix size	0.61 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	2.95 - 4.77 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	100000:1
Screen size compatibility	40 - 500 \
Projector native resolution	2160p (3840x2160)
Keystone correction, horizontal	-30 - 30 °
Lamp type	UHE
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Focus	Manual
Throw ratio	1.32 - 2.15:1
Zoom capability	Yes
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.49 - 1.77
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-24 - 24 %
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Built-in display	No
Video processing	10 bit
Video color modes	Auto, Cinema, Dynamic, Natural, Bright cinema
Supported 3D formats	Side by side, Top and bottom
Supported video modes	2160p
Supported 3D technologies	Samsung Active 3D
Analog signal format system	-
Supported graphics resolutions	3840 x 2160
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	387 W
Power consumption (PowerSave)	297 W
Audio (L/R) out	1
Serial interface type	RS-232C
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
Noise level	32 dB
Country of origin	Philippines
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	24 dB
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 30 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	10 W
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	18 pc(s)
Quantity per pallet (UK)	36 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	310 mm
Width	410 mm
Height	157 mm
Weight	6900 g
Package depth	500 mm
Package width	495 mm
Package height	235 mm
Package weight	8947 g
