Epson EH-TW7100 User Manual

Introduction
8
Name Function
l
Control panel
Operates the projector. s p.8

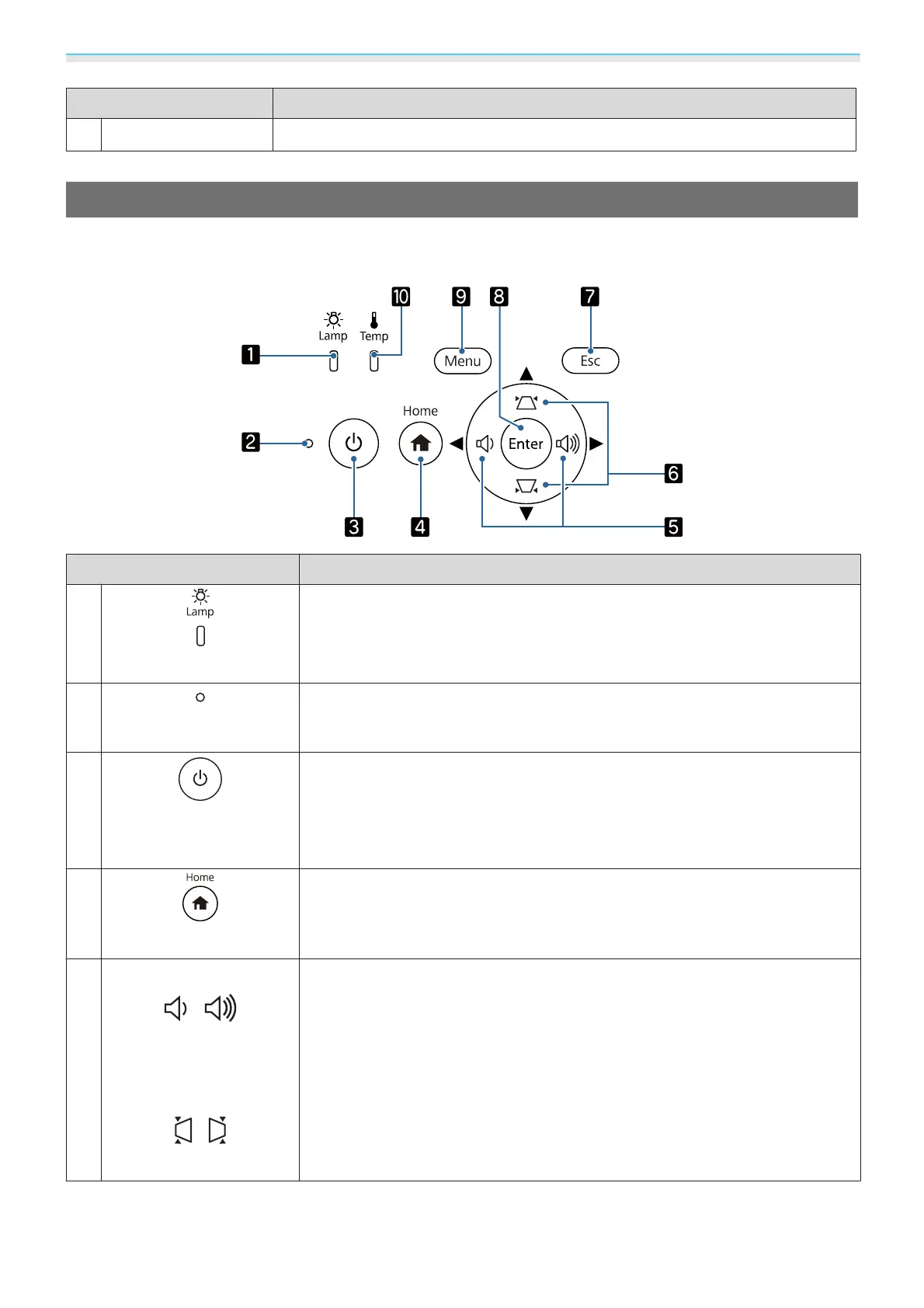

Control Panel
The control panel varies depending on the projector model you are using. The examples in this section are
for the control panel for the EH-TW7100.
Buttons (Indicators) Function
a
(Lamp indicator)
Flashes orange when it is time to replace the lamp. Shows the projector's errors
through a combination of other indicators lit and flashing.
s p.71
b
(Status indicator)
Flashes to indicate the projector is warming up or cooling down. Shows the
projector's status through a combination of other indicators lit and flashing.
s p.71
c
Standby
(Standby indicator)
Turns the projector on or off. s p.25
Lit when the projector is on. Shows the projector's status through a combina-
tion of other indicators lit and flashing.
s p.71
d
[Home]
Displays or closes the Home screen. s p.26
e
EH-TW7100:
Volume (Left/Right)
EH-TW7000:
Left/Right
•
Adjusts the volume. (EH-TW7100 only) s p.33
•
Selects menu items or adjustment values while displaying the projector's menu.
s p.58
•
When the Keystone screen is displayed, you can adjust horizontal distortion in
the projected image.
s p.30

Epson EH-TW7100 Specifications

General

Matrix size	0.61 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	2.95 - 4.77 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	100000:1
Screen size compatibility	40 - 500 \
Projector native resolution	2160p (3840x2160)
Keystone correction, horizontal	-30 - 30 °
Lamp type	UHE
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Focus	Manual
Throw ratio	1.32 - 2.15:1
Zoom capability	Yes
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.49 - 1.77
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-24 - 24 %
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Built-in display	No
Video processing	10 bit
Video color modes	Auto, Cinema, Dynamic, Natural, Bright cinema
Supported 3D formats	Side by side, Top and bottom
Supported video modes	2160p
Supported 3D technologies	Samsung Active 3D
Analog signal format system	-
Supported graphics resolutions	3840 x 2160
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	387 W
Power consumption (PowerSave)	297 W
Audio (L/R) out	1
Serial interface type	RS-232C
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
Noise level	32 dB
Country of origin	Philippines
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	24 dB
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 30 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	10 W
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	18 pc(s)
Quantity per pallet (UK)	36 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	310 mm
Width	410 mm
Height	157 mm
Weight	6900 g
Package depth	500 mm
Package width	495 mm
Package height	235 mm
Package weight	8947 g
