Epson EH-TW7100 User Manual

Preparing
20
Connecting a Device
Attention
•
Make cable connections before connecting to a power outlet.
•
Check the shape of the cable's connector and the shape of the port, and then connect. If you force a connector
of a different shape into the port, it could cause damage and a malfunction to occur.

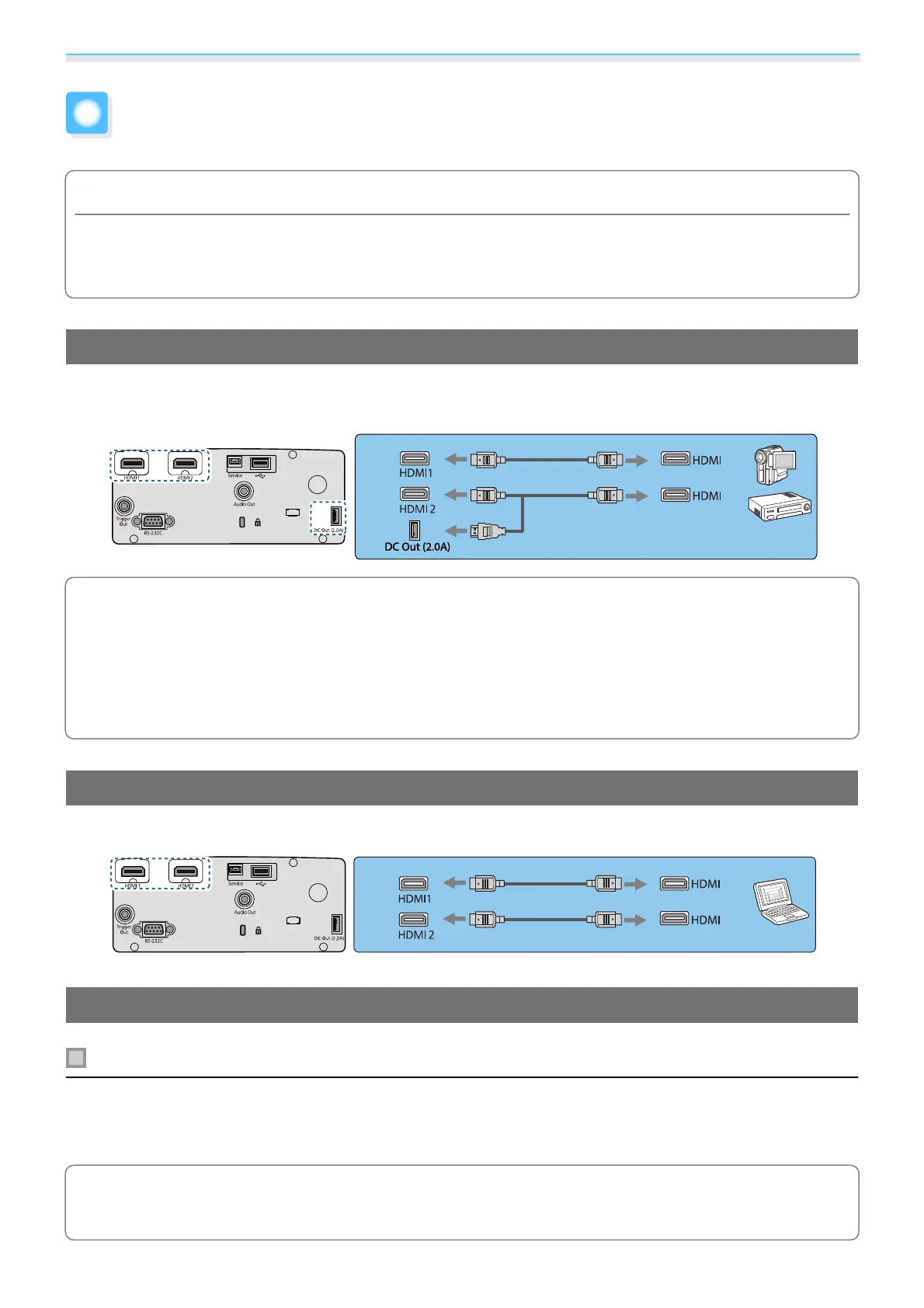

Connecting Video Equipment
To project images from DVD/Blu-ray players, connect to the projector using an HDMI cable (commercially
available).
c
•
To display signals in the 18 Gbps transmission band, such as 4k60p/4:4:4, use a premium HDMI cable.
If you use a cable that does not support it, images may not be displayed properly. If you experience
any trouble displaying images at 18 Gbps, change the EDID setting to Normal.
sSignal - Advanced -
EDID p.61
•
You can also connect your AV system to enjoy the audio from connected equipment.
•
When using the power supply port for an optical HDMI cable, connect it to the DC Out (2.0A) power
supply port.
Connecting a Computer
To project images from a computer, connect to the projector using an HDMI cable (commercially available).
Connecting External Equipment
Connecting to the Trigger Out port (EH-TW7100 only)
To connect external devices such as motorized screens, connect a mini-jack stereo cable (3.5 mm) to the
Trigger Out port. When set to on, a signal (12 V DC) is output from this port to communicate the projector's
status (On or Off) to connected devices such as electric screens.
c
When using the Trigger Out port, set the Trigger Out function to Power or Anamorphic Wide. s
Extended - Operation - Trigger Out p.65

Epson EH-TW7100 Specifications

General

Matrix size	0.61 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	2.95 - 4.77 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	100000:1
Screen size compatibility	40 - 500 \
Projector native resolution	2160p (3840x2160)
Keystone correction, horizontal	-30 - 30 °
Lamp type	UHE
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Focus	Manual
Throw ratio	1.32 - 2.15:1
Zoom capability	Yes
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.49 - 1.77
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-24 - 24 %
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Built-in display	No
Video processing	10 bit
Video color modes	Auto, Cinema, Dynamic, Natural, Bright cinema
Supported 3D formats	Side by side, Top and bottom
Supported video modes	2160p
Supported 3D technologies	Samsung Active 3D
Analog signal format system	-
Supported graphics resolutions	3840 x 2160
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	387 W
Power consumption (PowerSave)	297 W
Audio (L/R) out	1
Serial interface type	RS-232C
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
Noise level	32 dB
Country of origin	Philippines
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	24 dB
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 30 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
RMS rated power	10 W
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	18 pc(s)
Quantity per pallet (UK)	36 pc(s)
Harmonized System (HS) code	85286200
