38 Setting Up the Projector
Connecting an S-Video Source
1. Connect the S-Video cable to the S-Video connector on your
device and the
S-Video port on the projector.
2. If you want to play sound through the projector, see page 41 for
instructions on connecting an audio cable.
When you’ve finished making connections, see page 45 for
instructions on turning on the projector and Chapter 2 for
instructions on displaying and adjusting the image.
note
If the S-Video cable was not
p
rovided with your video
device, you can purchase one
f
rom Epson; see page 18.

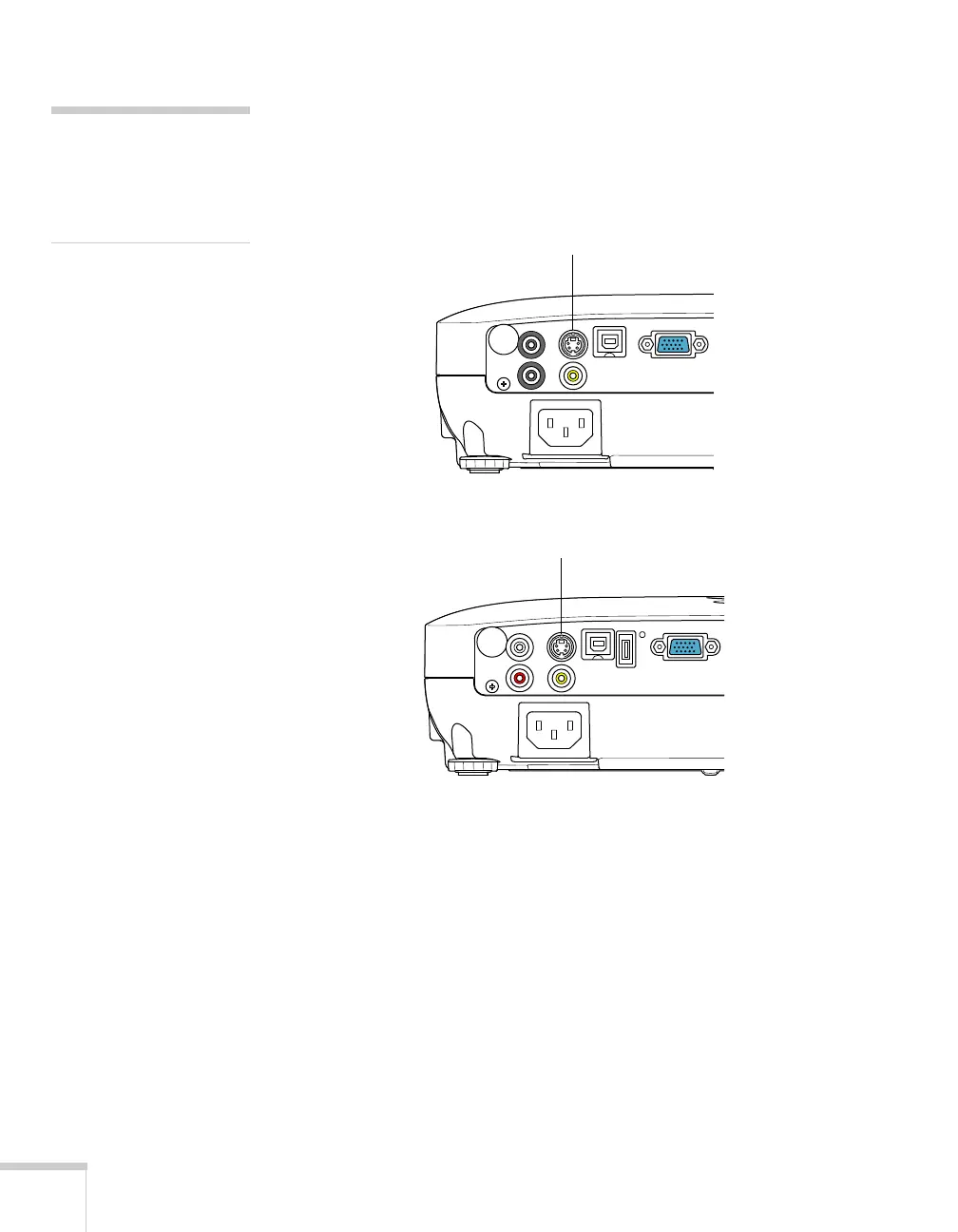

VS200/EX3200
S-Video port
EX5200/EX7200
S-Video port

Epson EX3200 Specifications

Projection Specifications

pixel number	480, 000 dots (800 x 600) x 3
white light output	2600 lumens
color light output	2600 lumens
aspect ratio	4:3
native resolution	800 x 600 (SVGA)
contrast ratio	Up to 2000:1
color reproduction	16.77 million colors
lamp type	200 W UHE
lamp life in ECO Mode	Up to 5000 hours
lamp life in Normal Mode	Up to 4000 hours
throw ratio range	1.45 – 1.96
size projected distance	30" – 350" (0.76 – 8.90 m)
keystone correction vertical	± 30 degrees

Lens Specifications

f-number	1.44
focal length	16.6 mm
zoom ratio	Digital zoom 1.0 – 1.3

Power and Noise

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	280 W
power consumption power off	0.3 W
fan noise normal mode	37 dB
fan noise ECO mode	29 dB

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
operating angle right/left	± 30 degrees
operating angle upper/lower	± 15 degrees
operating distance	19' (6 m)

Dimensions and Weight

dimensions including feet	11.6" x 9.0" x 3.1"
dimensions excluding feet	11.6" x 9.0" x 3.0"
weight	5.1 lb/2.3 kg
