Maintaining the Projector 89

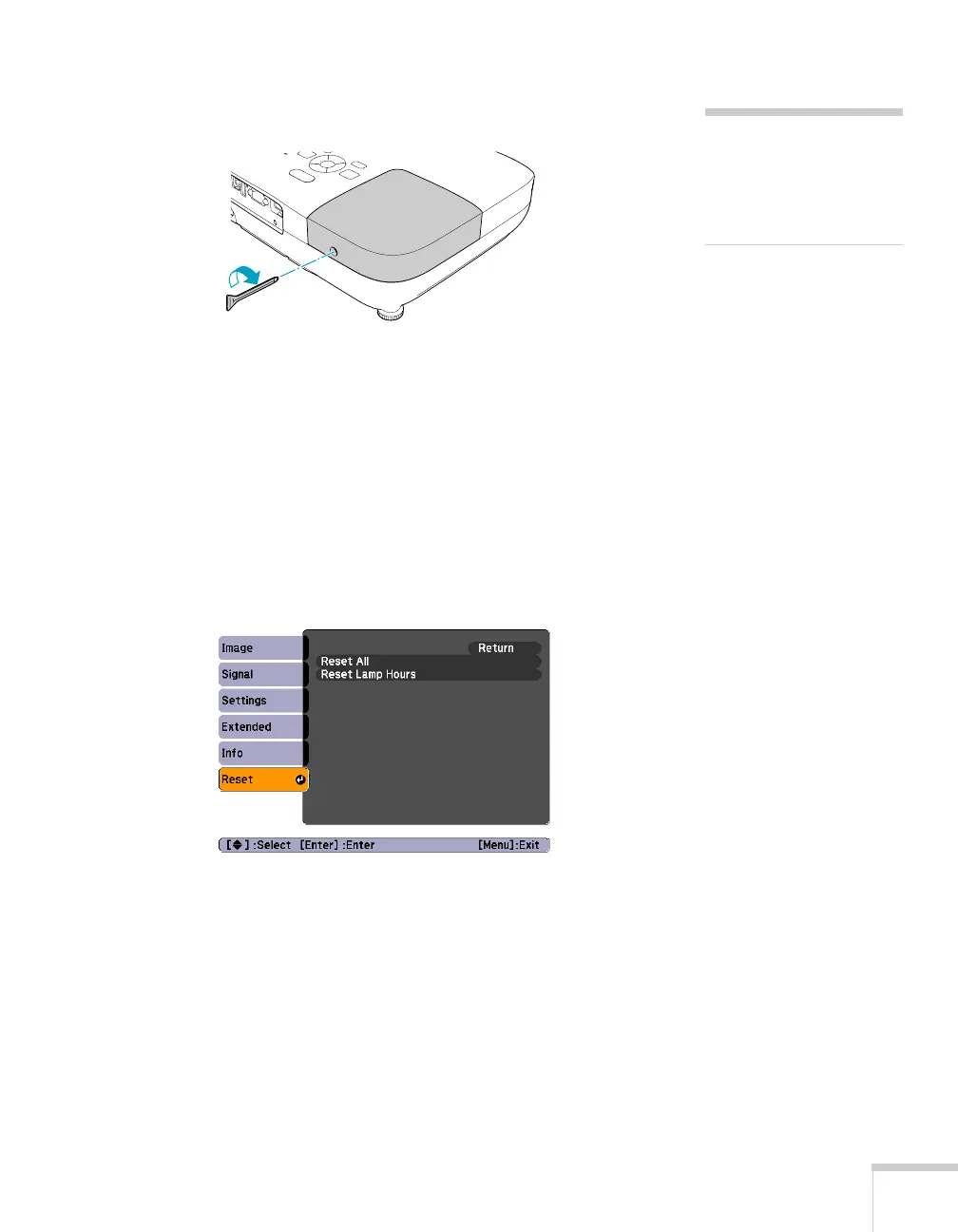

7. Replace the lamp cover, then tighten its screw.
8. Reset the lamp timer as described in the next section.
Resetting the Lamp Timer
After you replace the lamp, you need to reset the lamp timer using the
projector’s menu system.
1. Press the
Menu button on the remote control or on the
projector’s control panel. You see the main menu.
2. Select the
Reset menu and press Enter. You see this screen:
3. Select
Reset Lamp Hours and press Enter.
4. When you see the prompt, select
Yes and press Enter.
5. When you’re finished, press
Menu to exit.
note
Tighten the lamp cover
securely so you do not receive
a lamp cover error when you
turn the projector back on.

Epson EX3200 Specifications

Projection Specifications

pixel number	480, 000 dots (800 x 600) x 3
white light output	2600 lumens
color light output	2600 lumens
aspect ratio	4:3
native resolution	800 x 600 (SVGA)
contrast ratio	Up to 2000:1
color reproduction	16.77 million colors
lamp type	200 W UHE
lamp life in ECO Mode	Up to 5000 hours
lamp life in Normal Mode	Up to 4000 hours
throw ratio range	1.45 – 1.96
size projected distance	30" – 350" (0.76 – 8.90 m)
keystone correction vertical	± 30 degrees

Lens Specifications

f-number	1.44
focal length	16.6 mm
zoom ratio	Digital zoom 1.0 – 1.3

Power and Noise

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	280 W
power consumption power off	0.3 W
fan noise normal mode	37 dB
fan noise ECO mode	29 dB

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
operating angle right/left	± 30 degrees
operating angle upper/lower	± 15 degrees
operating distance	19' (6 m)

Dimensions and Weight

dimensions including feet	11.6" x 9.0" x 3.1"
dimensions excluding feet	11.6" x 9.0" x 3.0"
weight	5.1 lb/2.3 kg
