Epson EX3200 User Manual

Setting Up the Projector 39
Connecting a Component Video Source
If your video equipment has component video connectors (three
connectors labeled either Y/Cb/Cr or Y/Pb/Pr), you can purchase a
component-to-VGA video cable from Epson (see page 18) or an
electronics dealer.
1. Connect the component end of the cable (3 male RCA) to the Y/
Cb/Cr (or Y/Pb/Pr) connectors on your device.
2. Connect the other end of the cable (HD15 male) to the
Computer (Component Video) port on your projector using an
optional component-to-VGA video cable or adapter.
3. You may need to change the
Input Signal setting in the
projector’s Signal menu to
Auto (see page 72).

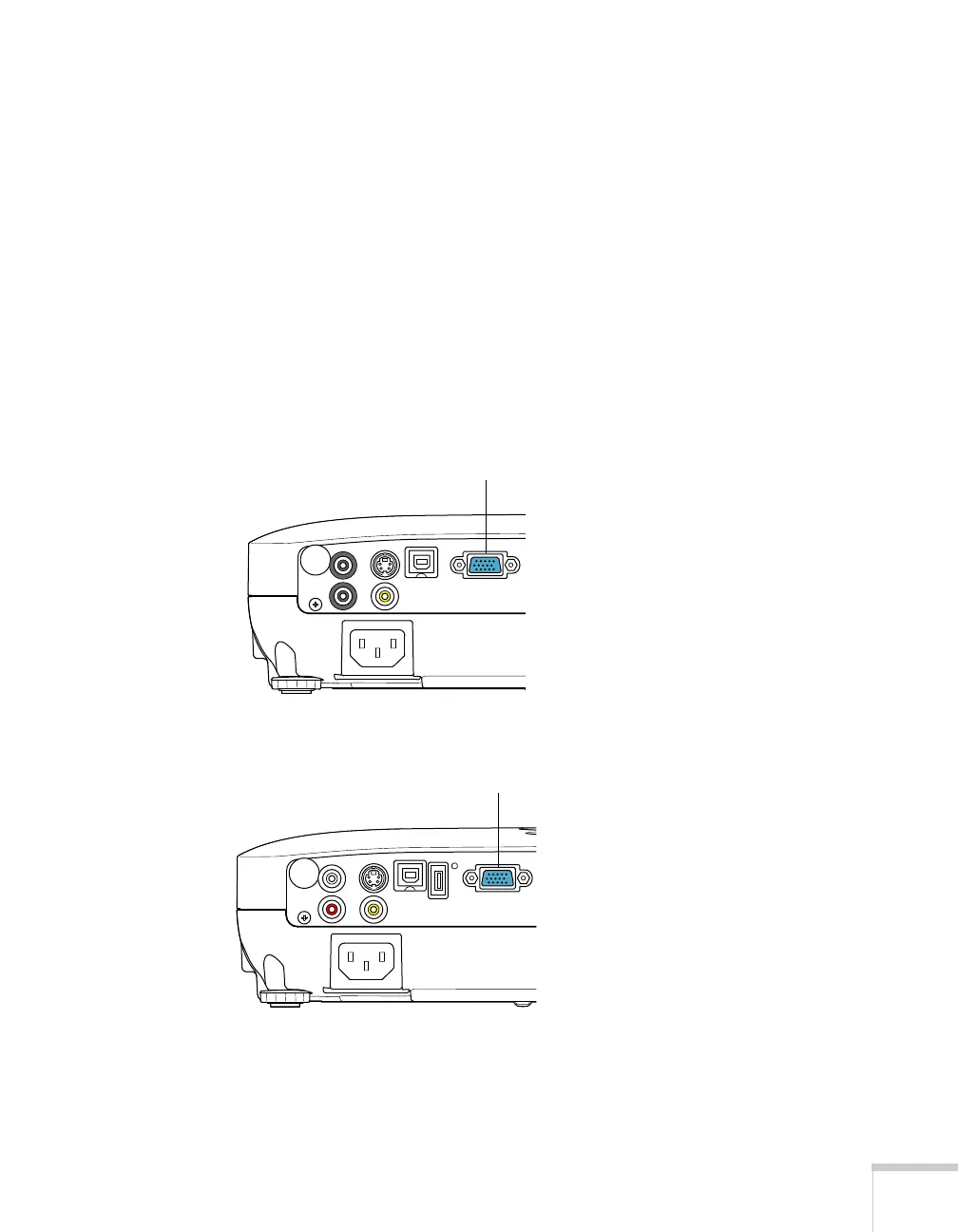

VS200/EX3200
Computer (Component
Video) port
EX5200/EX7200
Computer (Component
Video) port

Epson EX3200 Specifications

Projection Specifications

pixel number	480, 000 dots (800 x 600) x 3
white light output	2600 lumens
color light output	2600 lumens
aspect ratio	4:3
native resolution	800 x 600 (SVGA)
contrast ratio	Up to 2000:1
color reproduction	16.77 million colors
lamp type	200 W UHE
lamp life in ECO Mode	Up to 5000 hours
lamp life in Normal Mode	Up to 4000 hours
throw ratio range	1.45 – 1.96
size projected distance	30" – 350" (0.76 – 8.90 m)
keystone correction vertical	± 30 degrees

Lens Specifications

f-number	1.44
focal length	16.6 mm
zoom ratio	Digital zoom 1.0 – 1.3

Power and Noise

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	280 W
power consumption power off	0.3 W
fan noise normal mode	37 dB
fan noise ECO mode	29 dB

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
operating angle right/left	± 30 degrees
operating angle upper/lower	± 15 degrees
operating distance	19' (6 m)

Dimensions and Weight

dimensions including feet	11.6" x 9.0" x 3.1"
dimensions excluding feet	11.6" x 9.0" x 3.0"
weight	5.1 lb/2.3 kg
