Epson EX3200 User Manual

Fine-Tuning the Projector 71
Adjusting Signal Settings
Although the projector normally detects and optimizes the input
signal automatically, you can use the Signal menu to make manual
adjustments. In addition to changing the position of the projected
image, you can correct tracking and sync for computer images, or
change the aspect ratio.

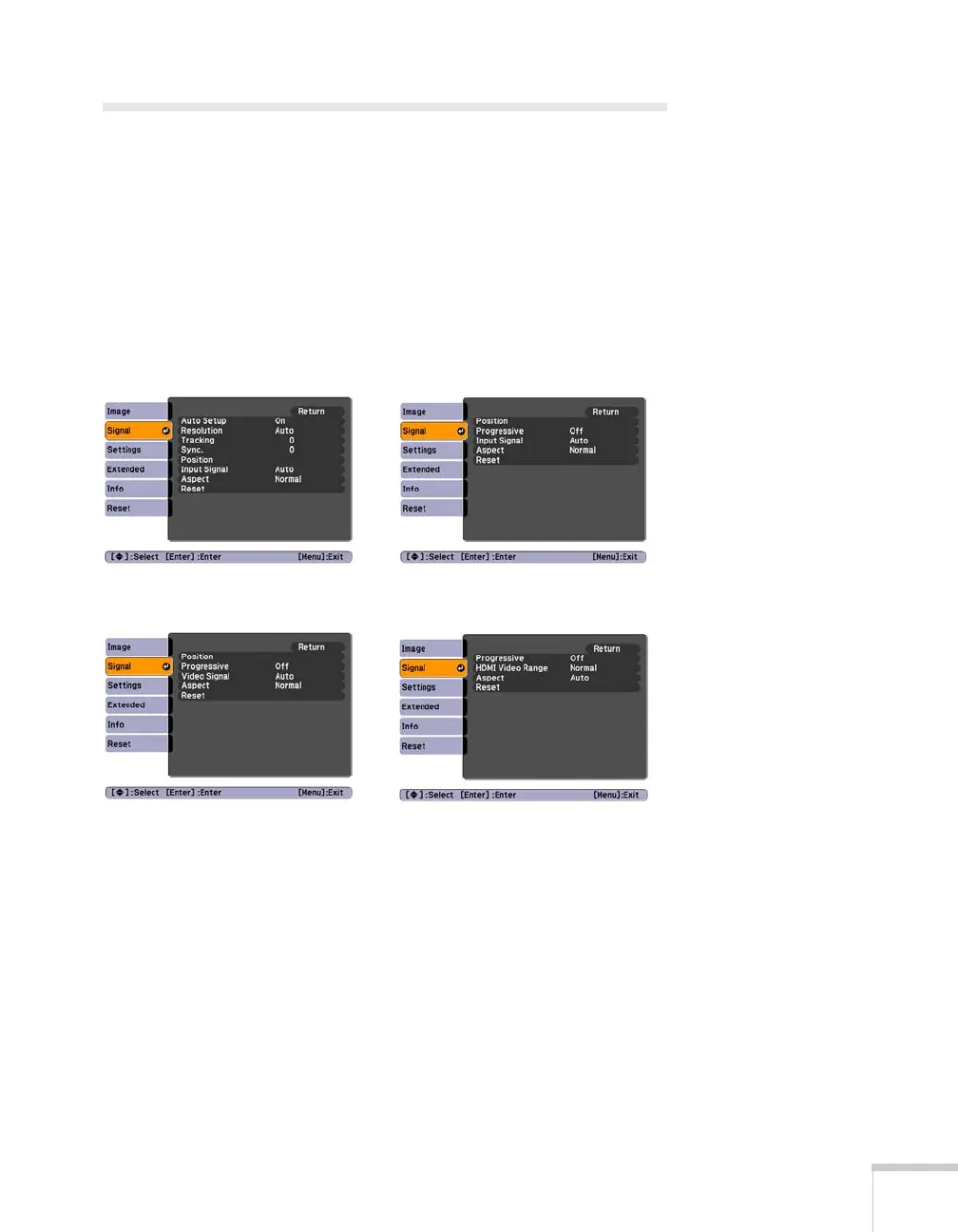

1. Press the
Menu button and select the Signal menu. You see a
screen similar to one of those below. (The settings will be different
depending on the source you are projecting from.)
Computer/RGB video Component video
Composite video/S-Video HDMI (EX5200/EX7200 only)

Epson EX3200 Specifications

Projection Specifications

pixel number	480, 000 dots (800 x 600) x 3
white light output	2600 lumens
color light output	2600 lumens
aspect ratio	4:3
native resolution	800 x 600 (SVGA)
contrast ratio	Up to 2000:1
color reproduction	16.77 million colors
lamp type	200 W UHE
lamp life in ECO Mode	Up to 5000 hours
lamp life in Normal Mode	Up to 4000 hours
throw ratio range	1.45 – 1.96
size projected distance	30" – 350" (0.76 – 8.90 m)
keystone correction vertical	± 30 degrees

Lens Specifications

f-number	1.44
focal length	16.6 mm
zoom ratio	Digital zoom 1.0 – 1.3

Power and Noise

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	280 W
power consumption power off	0.3 W
fan noise normal mode	37 dB
fan noise ECO mode	29 dB

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
operating angle right/left	± 30 degrees
operating angle upper/lower	± 15 degrees
operating distance	19' (6 m)

Dimensions and Weight

dimensions including feet	11.6" x 9.0" x 3.1"
dimensions excluding feet	11.6" x 9.0" x 3.0"
weight	5.1 lb/2.3 kg
