80 Fine-Tuning the Projector
Capturing the Image
Start by displaying the image you want to use from either a computer
or video source, such as a DVD player or digital camera. Then follow
these steps to capture the image and transfer it to the projector:

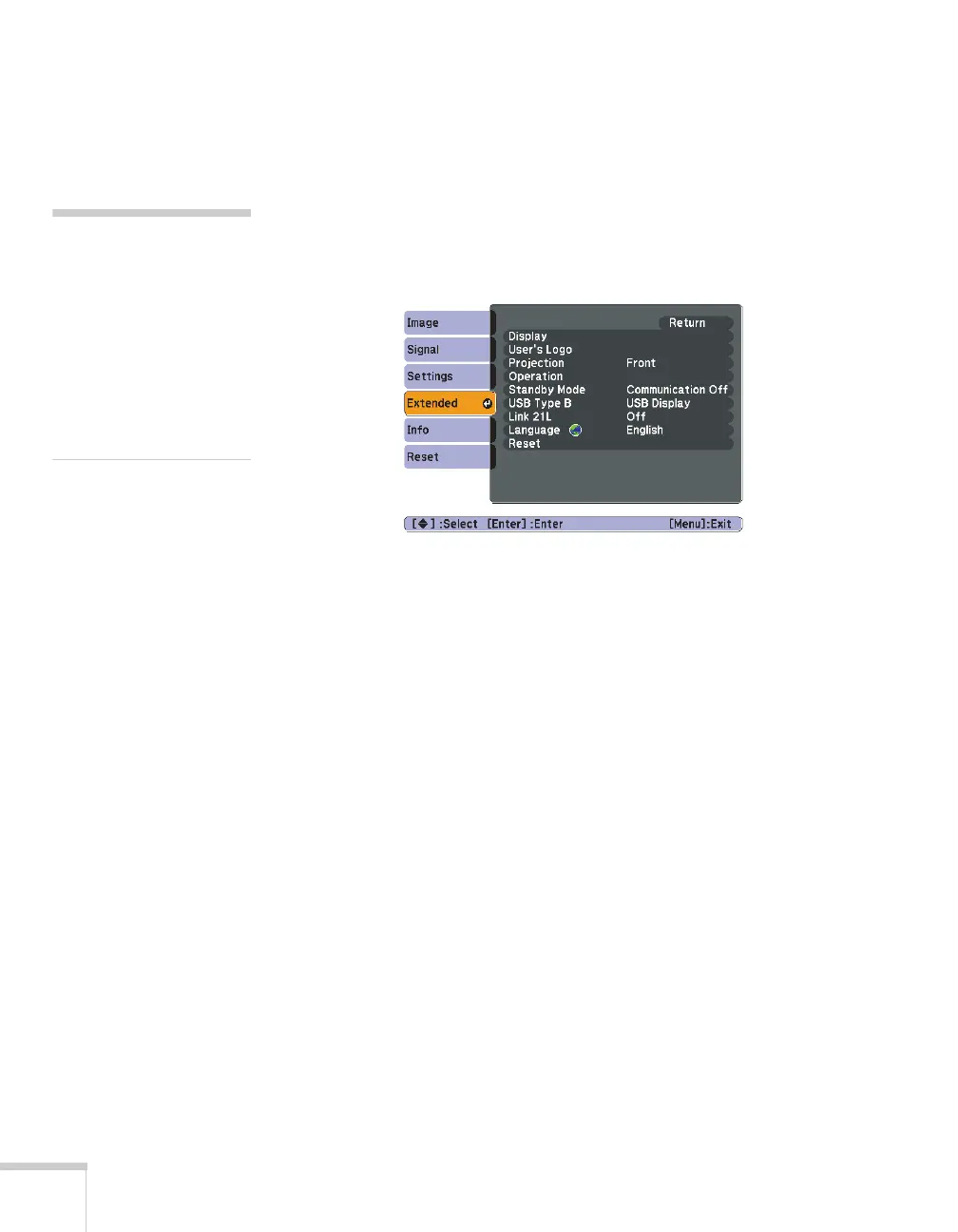

1. Press the
Menu button on the remote control, highlight the
Extended menu, and press Enter.
2. Highlight
User’s Logo and press Enter.
3. When you see a message asking
Choose this image as the
User’s Logo?
, select Yes and press Enter. A selection box
displays over the image.
4. Use the arrow buttons to select the area of the image you want to
use. Then press
Enter.
5. When you see the message
Select this image?, highlight Yes
and press
Enter.
6. Use the arrow buttons to select a zoom factor (display size) and
press
Enter.
7. When the message
Save this image as the User’s Logo?
appears, select
Yes and press Enter. Saving the logo may take a
few moments. Do not use your projector, remote control, or
video source while the logo is being saved.
8. When you see the message
Completed, press Menu to exit.
note
When you choose an image
f
or the user’s logo, it erases
any previously used image.
You can save an image up to
300 × 400 pixels in size.
Once you have saved a new
user’s logo, you cannot
return to the factory default
logo.

Epson EX3200 Specifications

Projection Specifications

pixel number	480, 000 dots (800 x 600) x 3
white light output	2600 lumens
color light output	2600 lumens
aspect ratio	4:3
native resolution	800 x 600 (SVGA)
contrast ratio	Up to 2000:1
color reproduction	16.77 million colors
lamp type	200 W UHE
lamp life in ECO Mode	Up to 5000 hours
lamp life in Normal Mode	Up to 4000 hours
throw ratio range	1.45 – 1.96
size projected distance	30" – 350" (0.76 – 8.90 m)
keystone correction vertical	± 30 degrees

Lens Specifications

f-number	1.44
focal length	16.6 mm
zoom ratio	Digital zoom 1.0 – 1.3

Power and Noise

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	280 W
power consumption power off	0.3 W
fan noise normal mode	37 dB
fan noise ECO mode	29 dB

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
operating angle right/left	± 30 degrees
operating angle upper/lower	± 15 degrees
operating distance	19' (6 m)

Dimensions and Weight

dimensions including feet	11.6" x 9.0" x 3.1"
dimensions excluding feet	11.6" x 9.0" x 3.0"
weight	5.1 lb/2.3 kg
