Using the sheet guide
You can use the supplied sheet guide to load one single sheet, multipart forms, or envelopes at a time
from the rear of the printer. Your single-sheet paper can be up to 257 mm (10.1 inches) wide on the
LQ-590II/LQ-590IIN and 420 mm (16.5 inches) wide on the LQ-2090II/LQ-2090IIN. See “Printer
Specifications” on page 144 for more details.
!
Caution:
Do not load carbon paper or labels in the sheet guide.
Front sheet guide
Installing the front sheet guide
Follow these steps to install the sheet guide in the front position:
1. Open the front cover, and then remove the tractor unit if it is installed in the front push position.
To remove it, press the tractor’s lock tabs, then tilt the tractor up and pull it out of the printer.

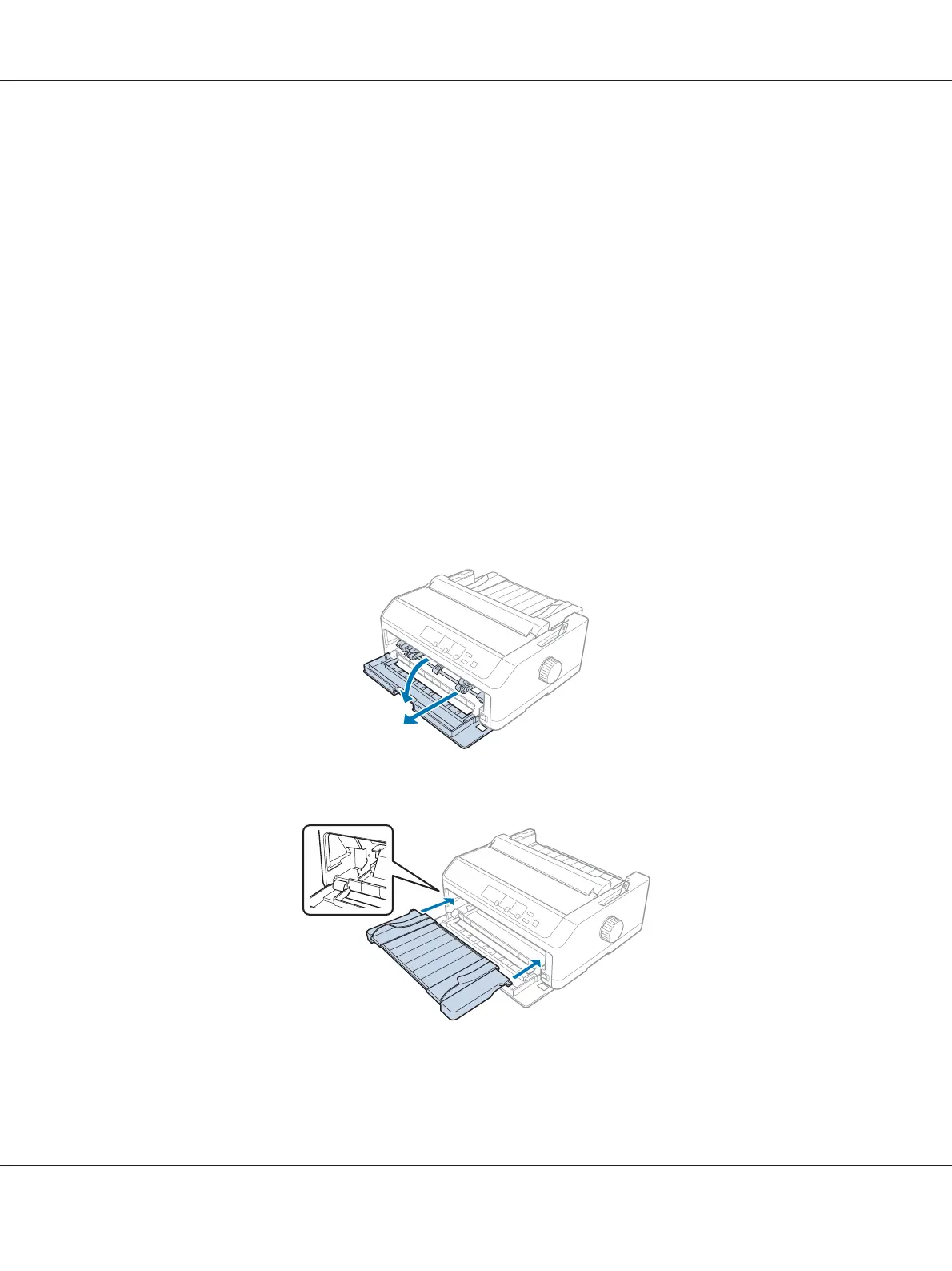

2. Fit the plastic tabs on the sheet guide over the mounting notches on the printer as shown below.
You are now ready to load paper in the front using the sheet guide. See “Loading paper in the rear sheet
guide” on page 47 for instructions.
LQ-590II/LQ-590IIN/LQ-2090II/LQ-2090IIN User’s Guide
Paper Handling 45

Epson LQ-590II Specifications

General

Mean time between failures (MTBF)	25000 h
Color	-
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Built-in barcodes	Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E
Maximum printing width (columns)	80
Standard interfaces	Ethernet, USB 2.0
Continuous paper thickness range	0.065 - 0.49 mm
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Product color	Black
Country of origin	Indonesia
Sound pressure level (printing)	55 dB
Pallet width	800 mm
Pallet height	7430 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	14 pc(s)
Quantity per pallet (UK)	28 pc(s)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Package depth	340 mm
Package width	40 mm
Package height	80 mm
Package weight	9280 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	375 mm
Width	437 mm
Height	177 mm
Weight	7200 g
