35

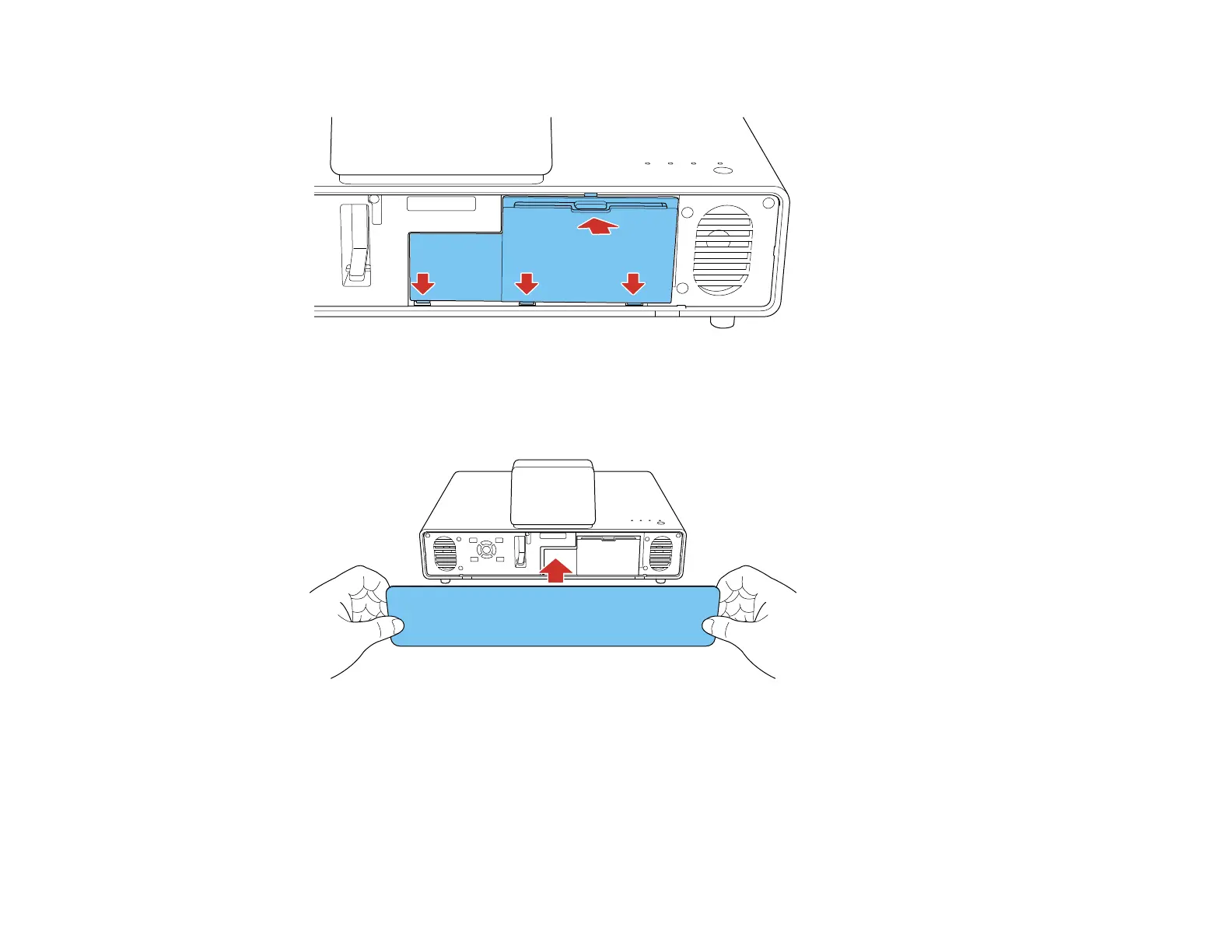

7.
Replace
the
storage
space
cover
as
shown.
Note:
Make
sure
to
clear
the
cables
or
the
cover
will
not
close.
8.
Replace
the
front
cover
of
the
projector.
Parent
topic:
Projector
Connections
Connecting
to
an
HDMI
Video
Source
If
your
video
source
has
an
HDMI
port,
you
can
connect
it
to
the
projector
using
an
optional
HDMI
cable.
34
36
Table of Contents
Table of Contents
3
LS500W/LS500B/LS500WATV/LS500BATV User's Guide
9
Introduction to Your Projector
10
Projector Features
10
Product Box Contents
11
Additional Components
12
Optional Equipment and Replacement Parts
12
Warranty and Registration Information (U.S. and Canada)
13
Warranty and Registration Information (Latin America)
14
Notations Used in the Documentation
14
Where to Go for Additional Information
14
Additional Projector Software and Manuals
14
Projector Part Locations
15
Projector Parts - Front/Top
16
Projector Parts - Rear/Top
17
Projector Parts - Connectors
18
Projector Parts - Base
20
Projector Parts - Control Panel
21
Projector Parts - Remote Control
22
Setting up the Projector
28
Projector Placement
28
Projector Setup and Installation Options
28
Projection Distance
29
Projector Connections
31
Connecting a Streaming Device
31
Connecting to an HDMI Video Source
35
Connecting External Speakers Using HDMI ARC
36
Connecting to External Speakers
37
Installing Batteries in the Remote Control
38
Using the Projector on a Network
40
Wired Network Projection
40
Connecting to a Wired Network
40
Selecting Wired Network Settings
41
Wireless Network Projection
44
Installing the Wireless LAN Module
45
Connecting Directly to a Smartphone or Tablet
45
Selecting Wireless Network Settings Manually
47
Wireless LAN Menu Settings
50
Selecting Wireless Network Settings in Windows
51
Selecting Wireless Network Settings on Mac
51
Setting up Wireless Network Security
52
Using Basic Projector Features
54
Turning on the Projector
54
Using the Home Screen
56
Turning off the Projector
58
Selecting the Language for the Projector Menus
59
Adjusting the Image Position
60
Focusing the Image
62
Adjusting the Front Feet
62
Image Shape
63
Correcting Image Shape with Quick Corner
63
Correcting Image Shape with the Keystone Buttons
65
Resizing the Image with the Zoom Setting
67
Viewing 3D Images
68
3D Viewing Range
69
Remote Control Operation
69
Pairing the Remote Control (LS500WATV/LS500BATV)
71
Selecting an Image Source
71
Image Aspect Ratio
73
Changing the Image Aspect Ratio
73
Available Image Aspect Ratios
74
Color Mode
74
Changing the Color Mode
75
Available Color Modes
75
Turning on Automatic Luminance Adjustment
76
Adjusting Gamma
77
Controlling the Volume with the Volume Buttons
78
Adjusting Projector Features
80
Operating Connected Devices Using the HDMI Link Features
80
Shutting off the Picture and Sound Temporarily
81
Projector Security Features
82
Locking the Projector's Lens Settings and Buttons
82
Unlocking the Projector's Buttons
84
Installing a Security Cable
84
Using Advanced Image Adjustment Features
84
Creating Image Presets
85
Adjusting Detail Enhancement
87
Adjusting the Color Convergence (Panel Alignment)
88
Adjusting the Color Tone (Color Uniformity)
92
Saving Settings to Memory and Using Saved Settings
94
Adjusting the Menu Settings
96
Using the Projector's Menus
96
Image Quality Settings - Image Menu
98
Input Signal Settings - Signal Menu
101
Projector Feature Settings - Settings Menu
104
Projector Setup Settings - Extended Menu
107
Projector Network Settings - Network Menu
110
Projector Information Display - Info Menu
112
Event ID Code List
113
Projector Reset Options - Reset Menu
115
Maintaining and Transporting the Projector
117
Projector Maintenance
117
Cleaning the Lens
117
Cleaning the Projector Case
118
Air Filter and Vent Maintenance
118
Cleaning the Air Filter and Vents
119
Replacing the Air Filter
122
Replacing the Remote Control Batteries
125
Transporting the Projector
127
Solving Problems
128
Projection Problem Tips
128
Projector Light Status
128
Solving Image or Sound Problems
131
Solutions When no Image Appears
131
Solutions When "No Signal" Message Appears
133
Displaying from a PC Laptop
133
Displaying from a Mac Laptop
134
Solutions When "Not Supported" Message Appears
134
Solutions When Only a Partial Image Appears
135
Solutions When the Image Is Not Rectangular
135
Solutions When the Image Contains Noise or Static
136
Solutions When the Image Is Fuzzy or Blurry
137
Solutions When the Image Brightness or Colors Are Incorrect
137
Solutions When a 3D Image Does Not Display Correctly
138
Solutions to Sound Problems
139
Solving Projector or Remote Control Operation Problems
140
Solutions to Projector Power or Shut-Off Problems
140
Solutions to Remote Control Problems
141
Solutions to HDMI Link Problems
142
Solving Network Problems
142
Solutions When Wireless Authentication Fails
143
Solutions When the Image Contains Static During Network Projection
143
Where to Get Help (U.S. and Canada)
144
Where to Get Help (Latin America)
145
General Projector Specifications
147
Technical Specifications
147
Projector Light Source Specifications
148
Remote Control Specifications
149
Projector Dimension Specifications
149
Projector Electrical Specifications
149
Projector Environmental Specifications
150
Projector Safety and Approvals Specifications
150
Safety and Approvals Specifications for Latin America
151
Supported Video Display Formats
152
Notices
154
Recycling
154
Important Safety Information
154
Laser Safety Information
155
Laser Light Source Warning
157
Important Safety Instructions
157
Restriction of Use
160
List of Safety Symbols
160
FCC Compliance Statement
165
Binding Arbitration and Class Waiver
166
Trademarks
169
Copyright Notice
169
A Note Concerning Responsible Use of Copyrighted Materials
170
Copyright Attribution
170
