Operation Manual
Ergometer
Type er800S
er800S Operation Manual 24 Version: 05/02
Art-Nr: 475.051

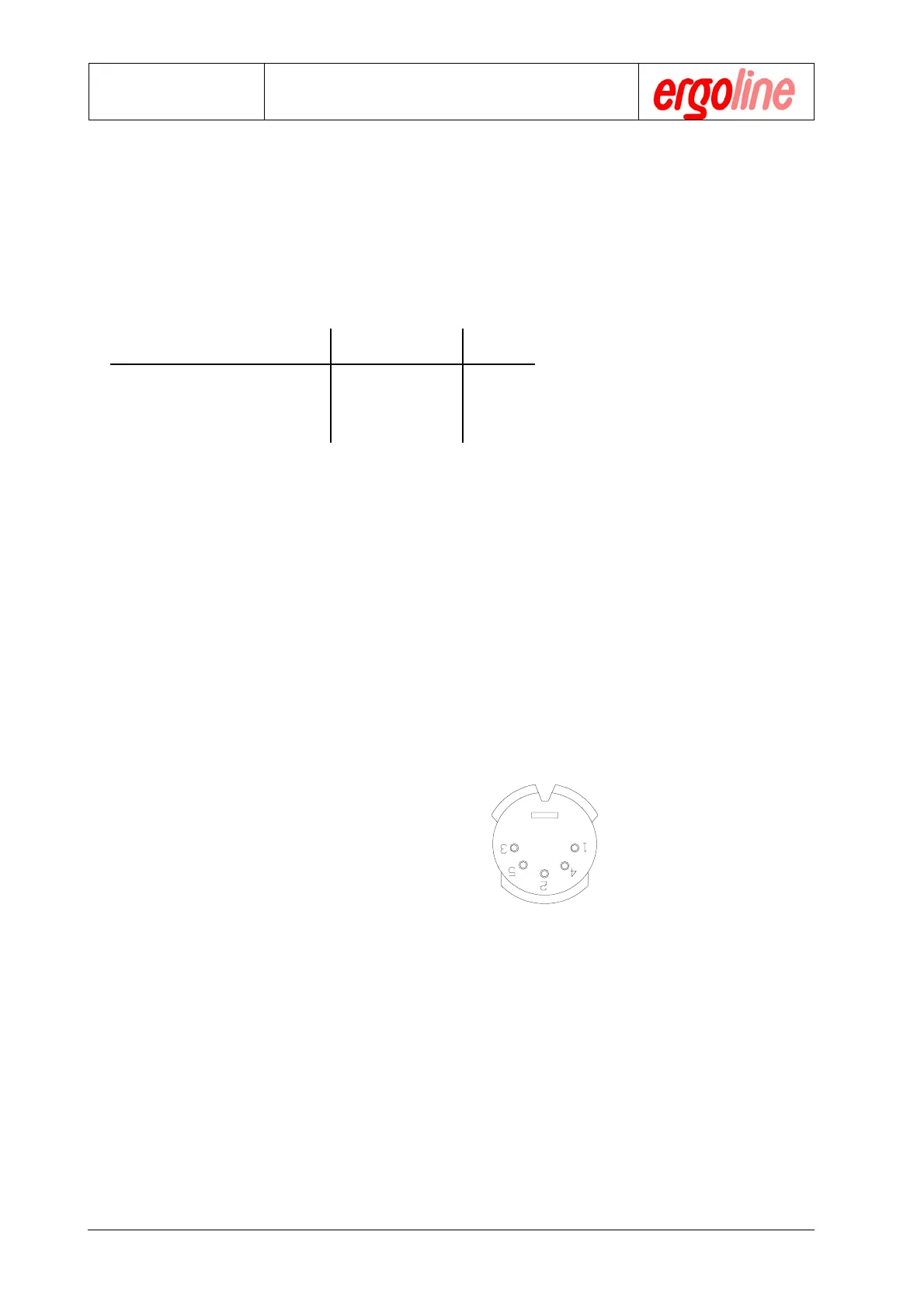

Ergometrics er800S: RS-232 Interface
Software version V.3.3/V.9.3
Interface for an er800S Data Connection to PC or ECG
Voltages:
logic low logic high
Transmit Output (Pin 1) >+7V <-7V
Receive Input (Pin 5) >+3V <-3V
Baud rate:
4800 Baud
Protocol:
Format: ASCII
Start bits: 1
Data bits: 8
Stop bits: 1
Parity: None
Handshake: None
Hardware Connection:
Pin 1: Transmit (Output)
Pin 2: GND
Pin 3: NC
Pin 4: NC
Pin 5: Receive (Input)
J4
RS232
Appendix A: Interfaces
