INTRODUCTION Manual 0-5402
2-2
2.04 Power Supply Specifications
ESAB Cutmaster
®
60 Power Supply Specifications
Input Power
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC),
Three Phase, 50/60 Hz
Input Power Cable
Power Supply includes input cable.
Cable for 400V, Three Phase,
Output Current 20 - 60 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
ESAB Cutmaster
®
60 Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
All Units
Duty Cycle 40% 60% 100%
Rating
IEC CE IEC CE IEC CE
Current
60A 60A 50A 50A 30A 30A
DC Voltage
104 104 100 100 92 92
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or the output
voltage (DC) is higher than shown in this chart.
NOTE!
IEC Rating is determined as specied by the International Electro-Technical Commission. These specications include
calculating an output voltage based upon power supply rated current. To facilitate comparison between power supplies, all
manufacturers use this output voltage to determine duty cycle.

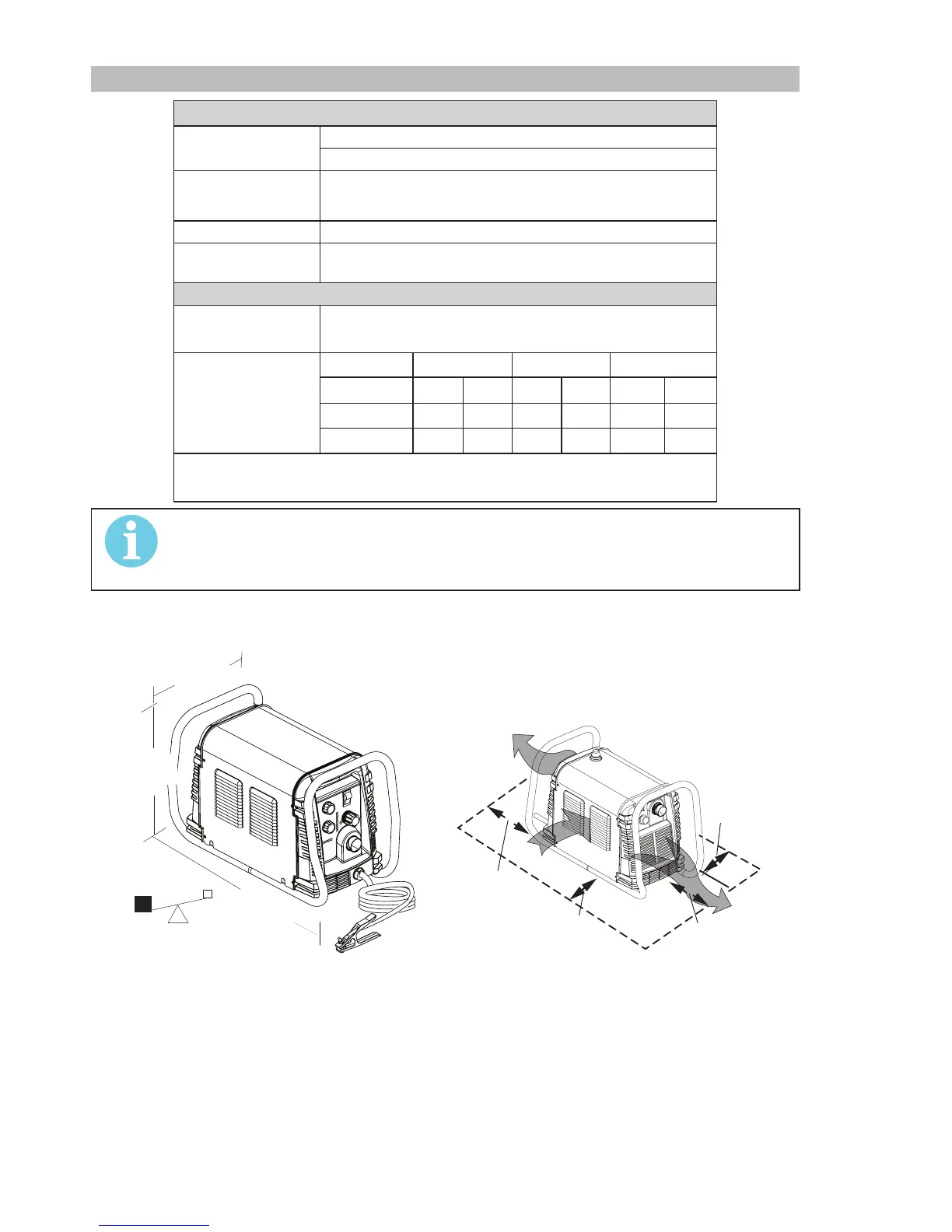

Power Supply Dimensions & Weight Ventilation Clearance Requirements
22.5"
0.57 m
43 lb / 19.5 kg
10.75"
273 mm
16.375"
416 mm
Art # A-07941
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB

ESAB Cutmaster 60 Specifications

General

Brand	ESAB
Model	Cutmaster 60
Category	Welding System
Language	English
