ESAB CUTMASTER 60
Manual 0-5402 INTRODUCTION
2T-1
SECTION 2 TORCH:
INTRODUCTION
2T.01 Scope of Manual
This manual contains descriptions, operating instruc-
tions and maintenance procedures for the 1Torch
Models SL60/Manual and SL100/Mechanized Plasma
Cutting Torches. Service of this equipment is re-
stricted to properly trained personnel; unqualified
personnel are strictly cautioned against attempting
repairs or adjustments not covered in this manual, at
the risk of voiding the Warranty.
Read this manual thoroughly. A complete under-
standing of the characteristics and capabilities of this
equipment will assure the dependable operation for
which it was designed.
2T.02 General Description
Plasma torches are similar in design to the automotive
spark plug. They consist of negative and positive sec-
tions separated by a center insulator. Inside the torch,
the pilot arc starts in the gap between the negatively
charged electrode and the positively charged tip.
Once the pilot arc has ionized the plasma gas, the
superheated column of gas flows through the small
orifice in the torch tip, which is focused on the metal
to be cut.
A single torch lead provides gas from a single source
to be used as both the plasma and secondary gas.
The air flow is divided inside the torch head. Single
- gas operation provides a smaller sized torch and
inexpensive operation.
NOTE!
An operation,Refer to Section "2T.05 Introduction to
Plasma", for a more detailed description of plasma
torch operation.
Refer to the Appendix Pages for additional speci-
cations as related to the Power Supply used.

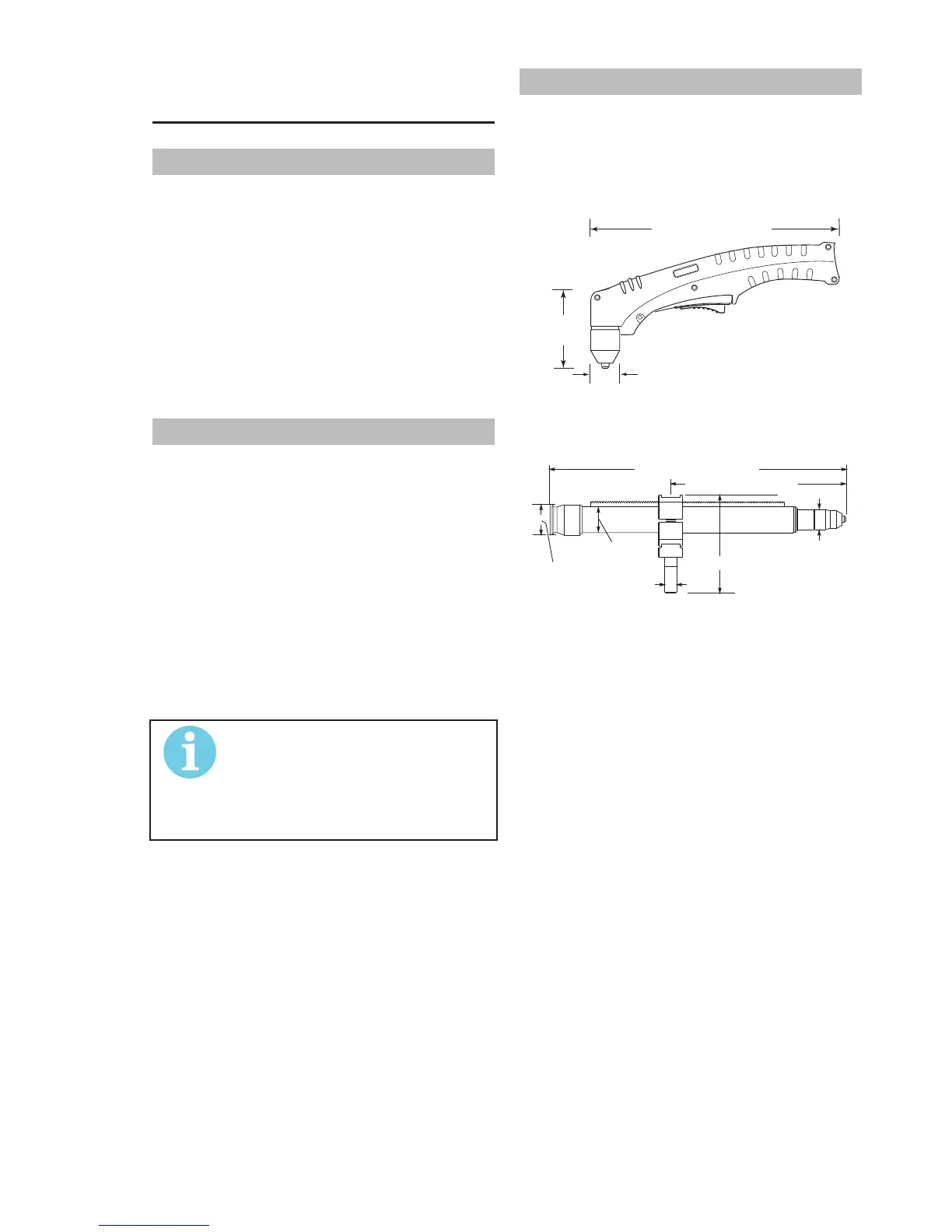

2T.03 Specifications
A. Torch Configurations
1. Hand/Manual Torch, Models
The hand torch head is at 75° to the torch
handle. The hand torches include a torch
handle and torch trigger assembly.
10.125" (257 mm)
3.75"
(95 mm)
1.17" (29 mm)
Art # A-03322_AB
2. Mechanized Torch, Model
The standard machine torch has a positioning
tube with rack & pinch block assembly.
Art # A-02998
1.75" /
44.5 mm
1.375" / 35 mm
15.875" / 403 mm
0.625" /
16 mm
4.95" / 126 mm
1.175" / 30 mm
9.285" / 236 mm
B. Torch Leads Lengths
Hand Torches are available as follows:
• 20ft/6.1m,withATCconnectors
• 50ft/15.2m,withATCconnectors
Machine Torches are available as follows:
• 5foot/1.5m,withATCconnectors
• 10foot/3.05m,withATCconnectors
• 25foot/7.6m,withATCconnectors
• 50foot/15.2m,withATCconnectors
C. Torch Parts
Starter Cartridge, Electrode, Tip, Shield Cup
D. Parts - In - Place (PIP)
Torch Head has built - in switch
12 VDC circuit rating
E. Type Cooling
Combination of ambient air and gas stream
through torch.
