ESAB CUTMASTER 60
Manual 0-5402 INSTALLATION
3T-1
SECTION 3 TORCH:
INSTALLATION
3T.01 Torch Connections
If necessary, connect the torch to the Power Sup-
ply. Connect only the ESAB model SL60 / Manual
or SL100 / Mechanical Torch to this power supply.
Maximum torch leads length is 100 feet / 30.5 m,
including extensions.
WARNING
Disconnect primary power at the source before con-
necting the torch.

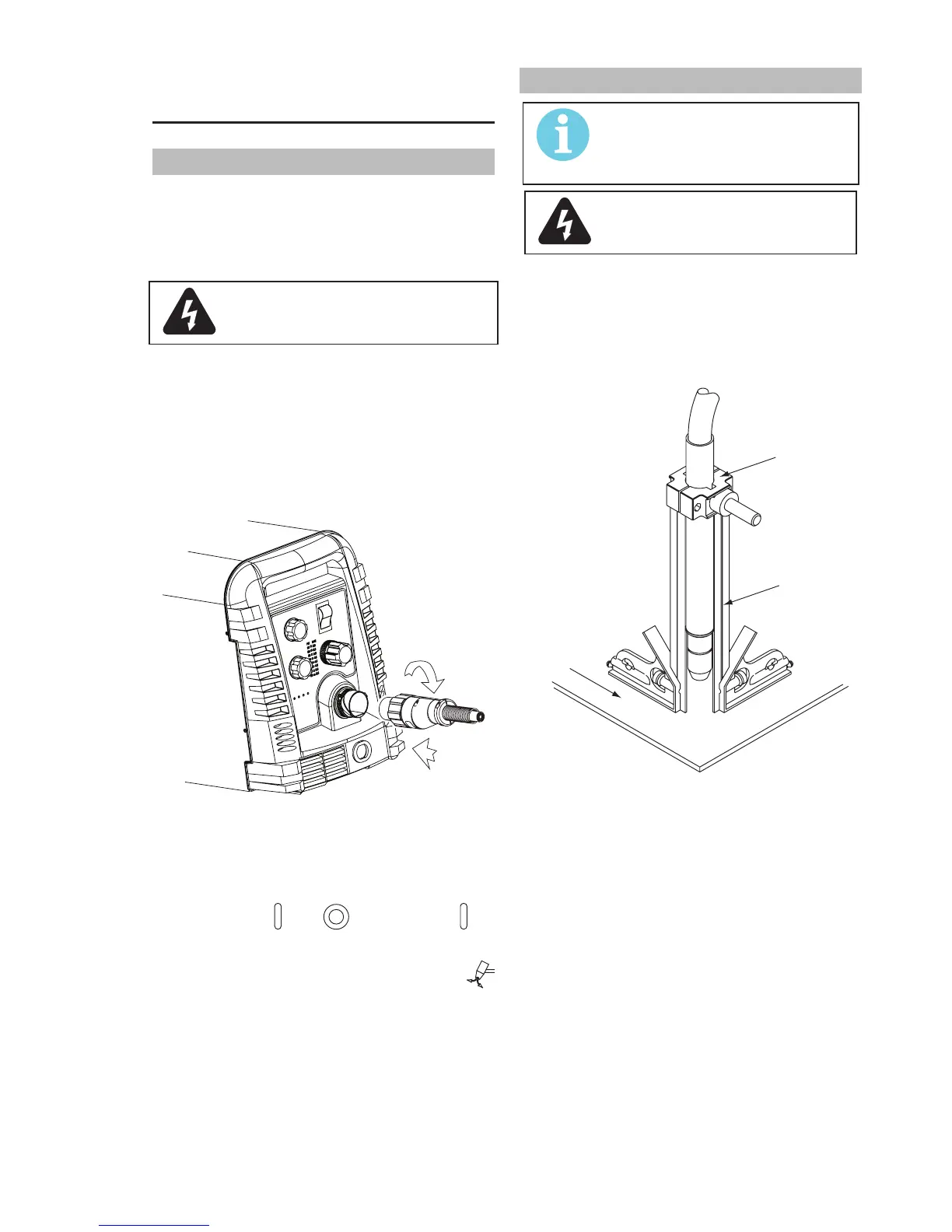

1. Align the ATC male connector (on the torch
lead) with the female receptacle. Push the
male connector into the female receptacle.
The connectors should push together with a
small amount of pressure.
2. Secure the connection by turning the locking
nut clockwise until it clicks. DO NOT use the
locking nut to pull the connection together.
Do not use tools to secure the connection.
1
2
Art # A-07885
Connecting the Torch to the Power Supply
3. The system is ready for operation.
Check Air Quality
To test the quality of air:
1. Put the ON
/ OFF switch in the ON (up)
position.
2. Put the Function Control switch in the SET
position.
3. Place a welding filter lens in front of the torch
and turn ON the air. Do not start an arc!
Any oil or moisture in the air will be visible on
the lens.
3T.02 Setting Up Mechanical Torch
NOTE!
When converting a hand torch to a mechanical
torch, one adaptor will be required inside the
power source.
WARNING
Disconnect primary power at the source before
disassembling the torch or torch leads.
The mechanical torch includes a positioning tube with
rack and pinch block assembly.
1. Mount the torch assembly on the cutting table.
2. To obtain a clean vertical cut, use a square to
align the torch perpendicular to the surface of
the workpiece.
A-02585
Workpiece
Square
Pinch Block
Assembly
Mechanical Torch Set - Up
3. The proper torch parts (shield cup, tip, start
cartridge, and electrode) must be installed for
the type of operation. Refer to Section 4T.07
for the selection of torch parts.
