OPERATION Manual 0-5402
4T-8

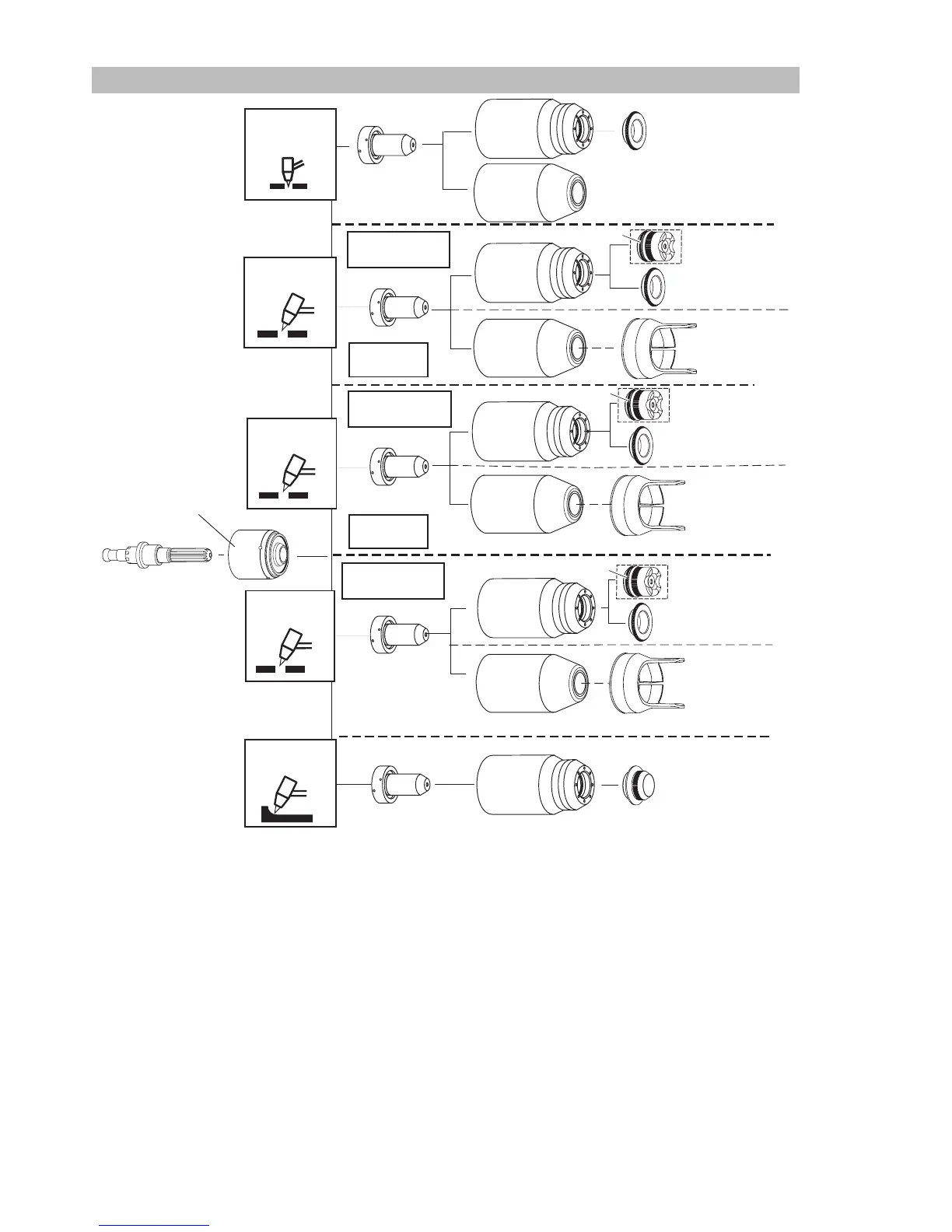

4T.07 Parts Selection for Manual and Mechanized Torch Cutting
Start
Cartridge
9-8277
Electrode
9-8215
Tips:
20A 9-8205
30A 9-8206
40A 9-8207
60A 9-8252
Tip Gouging A 9-8225 (40 Amps Max.)
Tip Gouging B 9-8226 (50 - 100 Amps)
Tip Gouging C 9-8227 (60 - 120 Amps)
Tip Gouging D 9-8228 (60 - 120 Amps)
Tip Gouging E 9-8254 (60 - 120 Amps)
Shield Cap, Gouging
9-8241
Shield Cap, Drag
40A 9-8244
40A 9-8208
50-55A 9-8209
60A 9-8210
70A 9-8231
80A 9-8211
90/100A 9-8212
120A 9-8253
Shield Cap, Drag
50-60A 9-8235
Shield Cap, Drag
70-100A 9-8236
Shield
Cup Body,
9-8237
70-120A
50-60A
40A
Shield Cap, Deflector
9-8243
Shield
Cup Body,
9-8237
Shield Cup
9-8218
Tip:
Tips:
Tips:
Tips:
DRAG TIP
CUTTING
40-120A
GOUGING
CUTTING
CUTTING
CUTTING
Art # A-11505
DRAG SHIELD
CUTTING
Shield Cap, Deflector
9-8243
Shield
Cup Body,
9-8237
Shield Cup
9-8218
O-Ring No. 8-3488
Standoff Guide
9-8281
Shield Cap, Deflector
9-8243
Shield
Cup Body,
9-8237
Shield Cup
9-8218
O-Ring No. 8-3488
STANDOFF
CUTTING
DRAG SHIELD
CUTTING
Standoff Guide
9-8281
STANDOFF
CUTTING
DRAG SHIELD
CUTTING
STANDOFF CUTTING
Shield Cap, Deflector
9-8243
Shield
Cup Body,
9-8237
Shield Cup
9-8218
O-Ring No. 8-3488
Standoff Guide
9-8251
