Appendix
108
Platinous User’s Manual

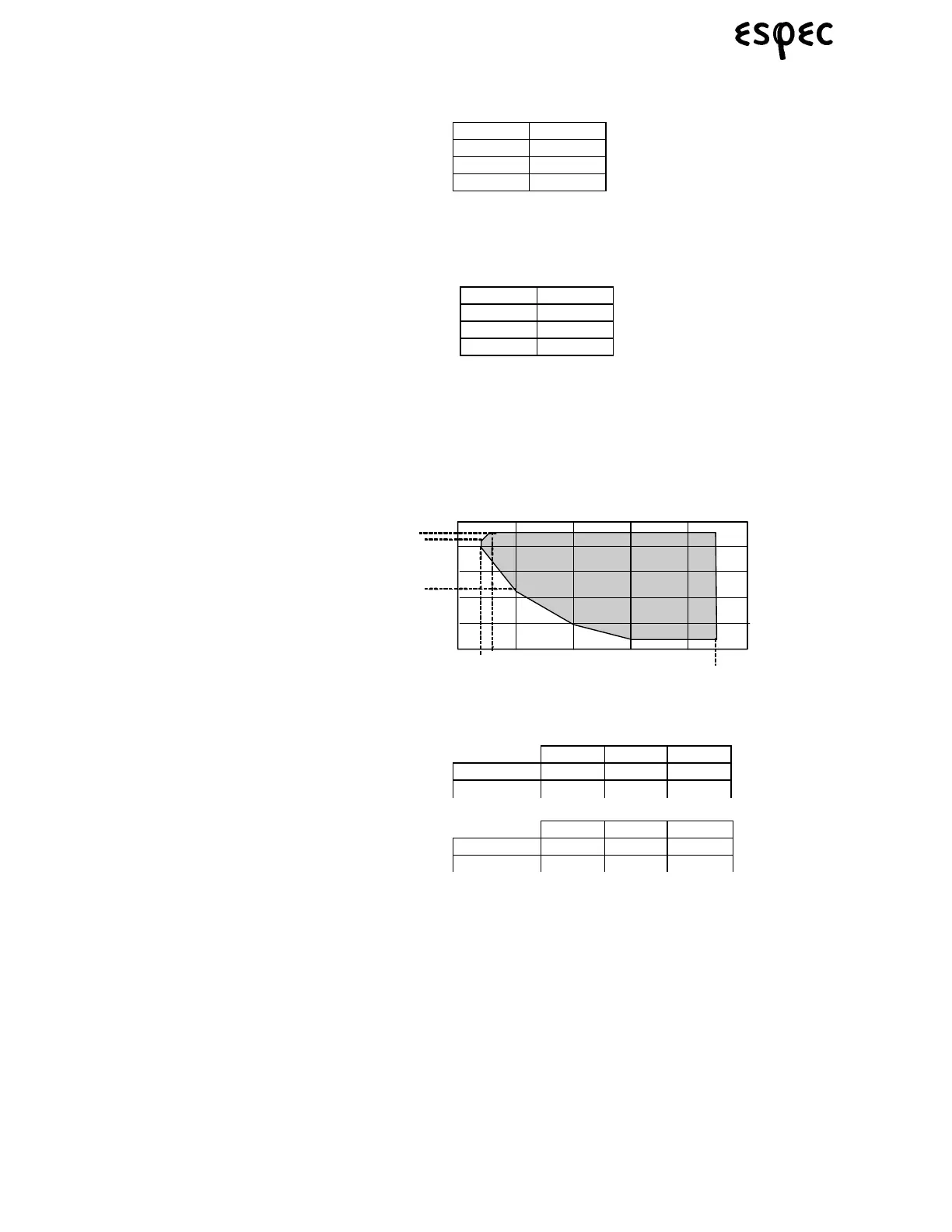

9.1.3 ESX Series: Ultra-Cold Temperature and Humidity Chambers
1. Product Name Ultra Low Temperature and Humidity Chamber.
2. Model
 A = Refrigeration Cooling is by Air.
 W = Refrigeration Cooling is by Water.
3. Temperature Control System Balanced Temperature and Humidity Control System: BTHC.
4. Power 208/230V 3Ph 60Hz ±5%
200/220V 3Ph 50Hz ±5%
5. Ambient Temperature Allowable Range of Operation: 5 to 35°C (41 to 95°F).
Range of Assured Performance: 10 to 25°C (50 to 77°F).
6. Performance
6.1. Temperature Range -70 to 180°C (-95 to 356°F).
6.2. Temperature Constancy ± 0.3°C (± 0.5°C for Type 4) at -70 to 100°C.
± 0.5°C (± 0.7°C for Type 4) at 101 to 180°C.
6.3. Temperature Uniformity ± 0.7°C (± 1.0°C for Type 4) at -70 to 100°C.
±1.0°C (± 1.5°C for Type 4) at 101 to 180°C.
6.4. Humidity Range 10 to 98% RH.
6.5. Humidity Constancy ± 2.5% RH (± 3.0% RH for Type 4).
6.6. Humidity Uniformity ± 3.0% RH (± 5.0% RH for Type 4).
6.7. Temperature Heat-Up Time
(208V Supply)
6.8. Temperature Pull-Down Time
6.8.1. 50Hz.
Model Size
ESX-2C 8 cu. Ft
ESX-3C 14 cu. Ft
ESX-4C 32 cu. Ft
Model Amps
ESX-2C 32 A
ESX-3C 32 A
ESX-4C 38 A
ESX-2C ESX-3C ESX-4C
23 to 150°C 22 min. 30 min. 25 min.
-40 to 125°C 27 min. 30 min. 25 min.
ESX-2C ESX-3C ESX-4C
23 to -65°C 48 min. 72 min. 114 min.
125 to -40°C 45 min. 72 min. 114 min.
20°C
40°
C
80°C
60°C
0
20
40
60
80
100
100°C
85°
C
90
98
%RH
10°C
15°C
45
