Platinous User’s Manual 27
Names and Functions of Parts
4.1.4 Test Area (2)

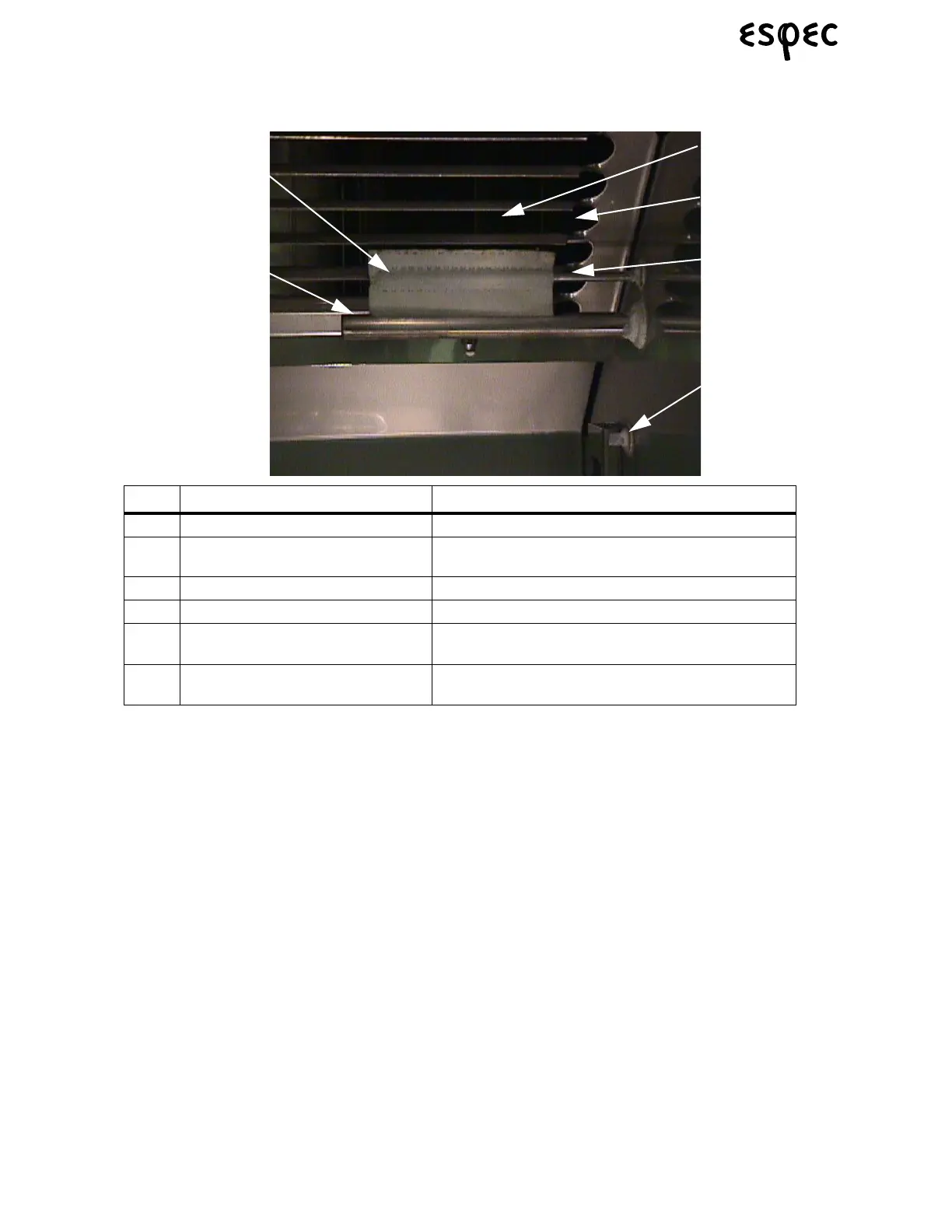

FIGURE 4.13. TEST AREA CEILING
*Not provided on temperature only chambers
Name Function/Use
(1) Air Flow Register Regulate internal airflow direction from here.
(2) Dry-Bulb Temperature Sensor (Not
shown)
Detects dry-bulb (test area) temperature.
(3) Wet-Bulb Temperature Sensor* Detects wet-bulb temperature (test area humidity).
(4) Wick Pan* Supplies water to the wet-bulb wick.
(5) Wet-Bulb Wick* Used in detecting wet-bulb temperature (test area
humidity).
(6) Product Temperature Control Option
Sensor Connection
Used for optional product temperature control.
Air Flow Register (1)
Wet Bulb
Temperature
Sensor (3)
Product Temp.
Control Option
Sensor Connection
(6)
Wet Bulb Wick (5)
Wick Pan (4)
Dry-Bulb
Temp. Sensor
(behind grille)
