4.4 Electrical Compartment

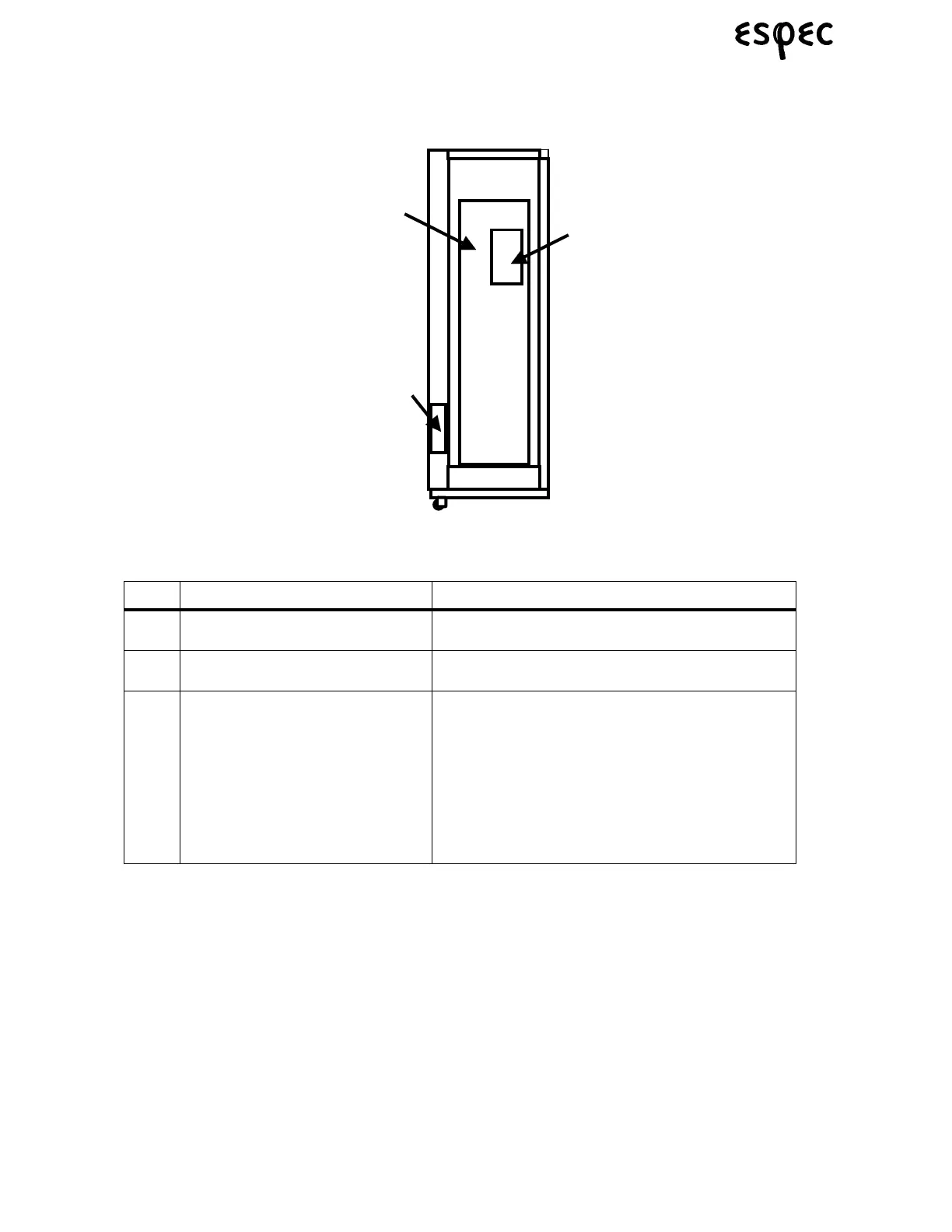

FIGURE 4.17. ELECTRICAL COMPARTMENT PARTS
Name Function/Use
(1) Temperature (& Humidity) Controller Controls temperature (& humidity) to the target tempera-
ture (& humidity).
(2) Electric Parts Chassis Distributes power to the heater, refrigerator and other
components.
(3) Option Panel with:
• Time Signal Terminals
• Specimen Power Supply Control
Terminal
• Communications
Contact-type output terminal. Outputs signals via a relay
to remote devices during tests.
For supply power to specimens. If trouble occurs with
the chamber, the contact opens and shuts OFF power
supply to the specimens.
Connect a PC here to control/monitor the chamber and
manage data from remote.
Temperature
(& Humidity)
Controller (1)
Electric Parts
Chassis (2)
Option Panel (3)
