Names and Functions of Parts
24
Platinous User’s Manual
4.1.2 Left, Rear, and Top

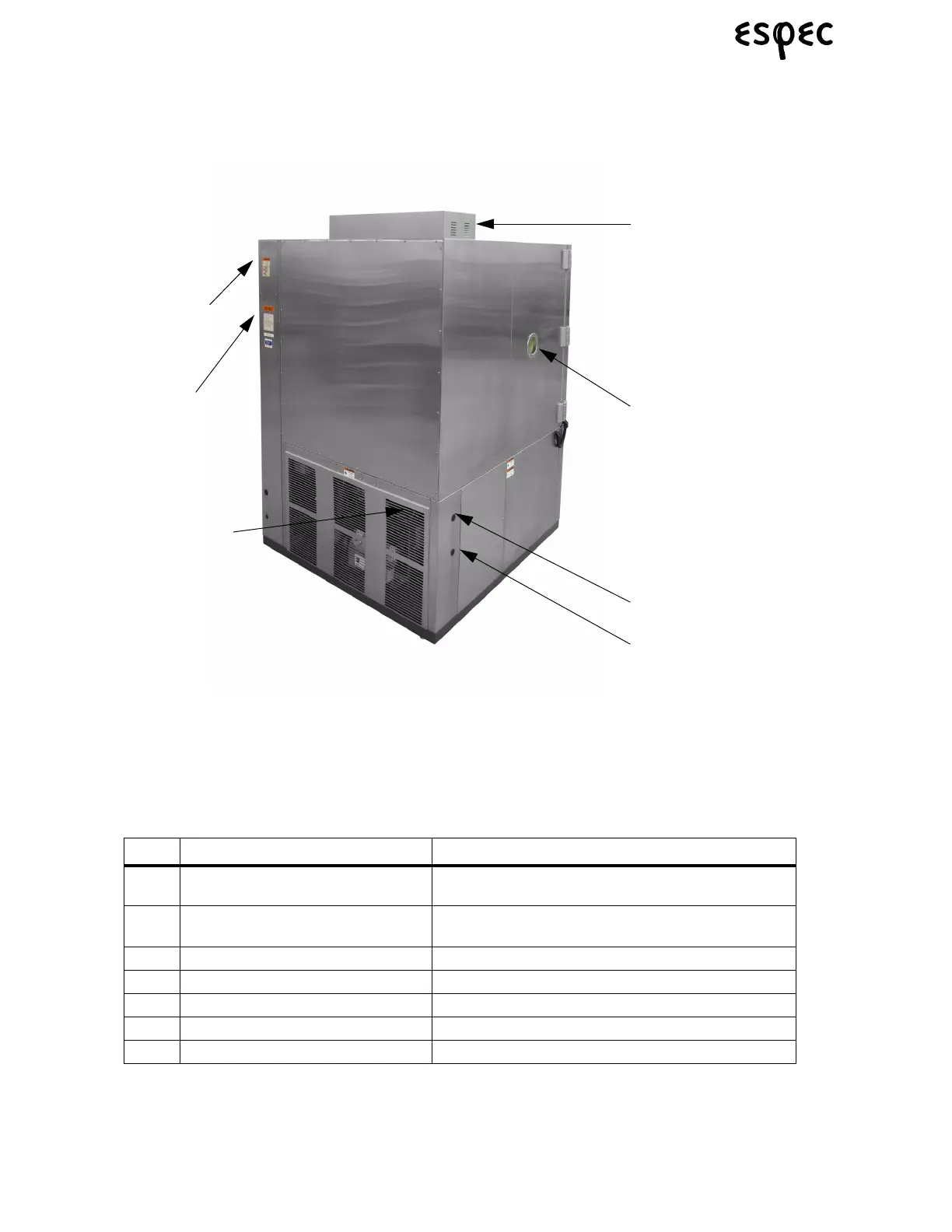

FIGURE 4.11. LEFT, REAR AND TOP
TABLE 4.6. CHAMBER LEFT, REAR, AND TOP SIDE PARTS
Name Function/Use
(1) Power Cable Port (Top Side) Feed the power cable into main power breaker (3)
through here.
(2) Cable Port Feed cables (i.e. to charge specimens) into the test
area through here.
(3) Main Power Breaker Turns primary power supply to the chamber ON/OFF.
(4) Air Circulators Air circulator motors.
(5) Water Supply Port For refrigeration cooling water (optional).
(6) Water Drain Port For refrigeration cooling water (optional).
(7) Refrigeration Ventilation For air circulation (do not block).
Refrigeration
Ventilation ()
Air Circulators (4)
Cable Port (2)
Water Drain Port (6)
Water Supply Port (5)
Power Cable Port (1)
Main Power Breaker
(3)
