Names and Functions of Parts
4.5 Water Circuit Compartment
Temperature only chambers do not have a water supply circuit, however, they are equipped with a drain
circuit.

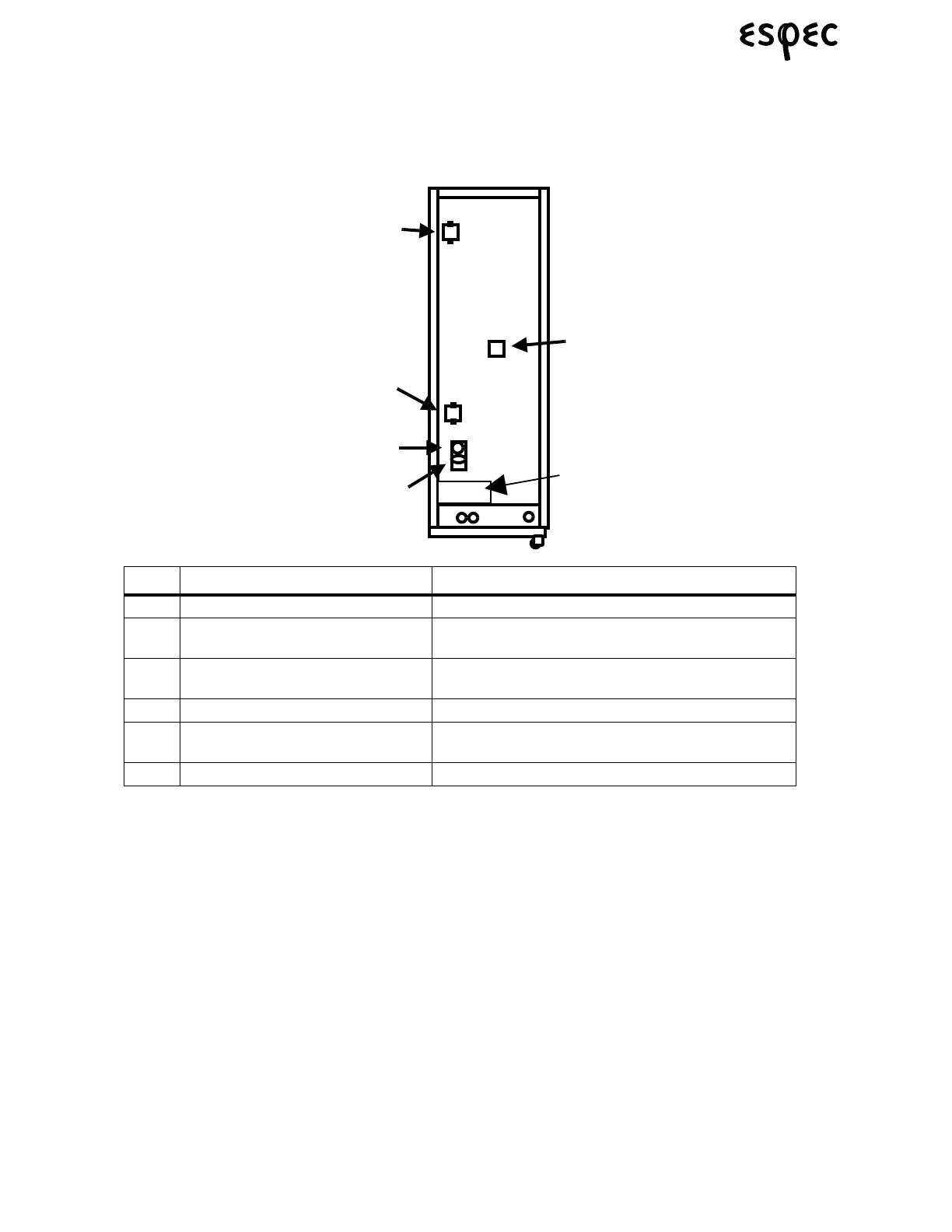

FIGURE 4.18. WATER CIRCUIT COMPARTMENT PARTS
*Humiditymodels only
Name Function/Use
1 Wick Pan Water Level Regulator* Regulates level of water in the wick pan arm.
2 Water Supply Pressure Regulator* Reduces inlet pressure to operating pressure for the
system.
3 Humidity Heater Temp. Safety* Prevents the heater from overheating when humidifying
water is low.
4 Water Supply Filter* Filters humidity supply water.
5 Humidifying Tray Water Level Regu-
lator*
Keeps water in the humidifying tray to a constant level.
6 Condensate Pump (optional) Removes water while chamber is in use.
Wick Pan
Water Level
Regulator (1)
Humidity Heater
Temp. Safety (3)
Water Supply
Pressure Regulator (2)
Humidifying Tray
Water Level
Regulator (5)
Water Supply
Filter (4)
CC
Condensate Pump (6)
