Fender RUMBLE 800 COMBO User Manual

3
SPECIFICATIONS
TYPE PR 6106
POWER REQUIREMENTS 1,500 watts (max) 380 watts (typical)
POWER AMP OUTPUT 400 watts into 8 Ω (internal) 800 watts into 4 Ω/2.67Ω (with 8Ω/4Ω extension cabinet)
INPUT IMPEDANCES 1MΩ (input) 10kΩ (aux in)
INPUT SENSITIVITY 25mVrms (input) 600mVrms (aux In, both channels driven) (for full power at 100Hz, with Gain/Master at “10” and EQ controls at “0”)
TONE CONTROLS Bass: ±15dB @ 80Hz Low-mid: ±12dB @ 280Hz High-mid: ±12dB @ 1.2kHz Treble: ±15dB @ 10kHz (“shelving” type)
SHAPE FILTER Bright: +13dB @ 10kHz Contour: +1dB @ 80Hz, -13dB @ 670Hz, +2dB @ 8kHz Vintage : Dynamic compression (-9dB max) with low pass (-6dB/oct) @ 400Hz
SPEAKERS Two 10” Eminence® neodymium 16Ω drivers, one compression tweeter with on/off switch
EFFECTS LOOP Nominal level: -10dB Send: 1kΩ (balanced) Return: 22kΩ (balanced)
LINE OUT Max level: +7dBU Impedance: 600 Ω (balanced)
HEADPHONE OUTPUT 140mW/channel into 16Ω (minimum recommended impedance)
FOOTSWITCHES Economy footswitch (included, PN 0994049000) Vintage footswitch (optional, PN 0994054000) LED footswitch (optional, PN 0994052000)
DIMENSIONS AND WEIGHT Width: 19” (48.26 cm) Height: 23.7” (60.2 cm) Depth: 14” (35.56 cm) Weight: 29 lbs. (13.15 kg)
Product specifications subject to change without notice.
ENGLISH

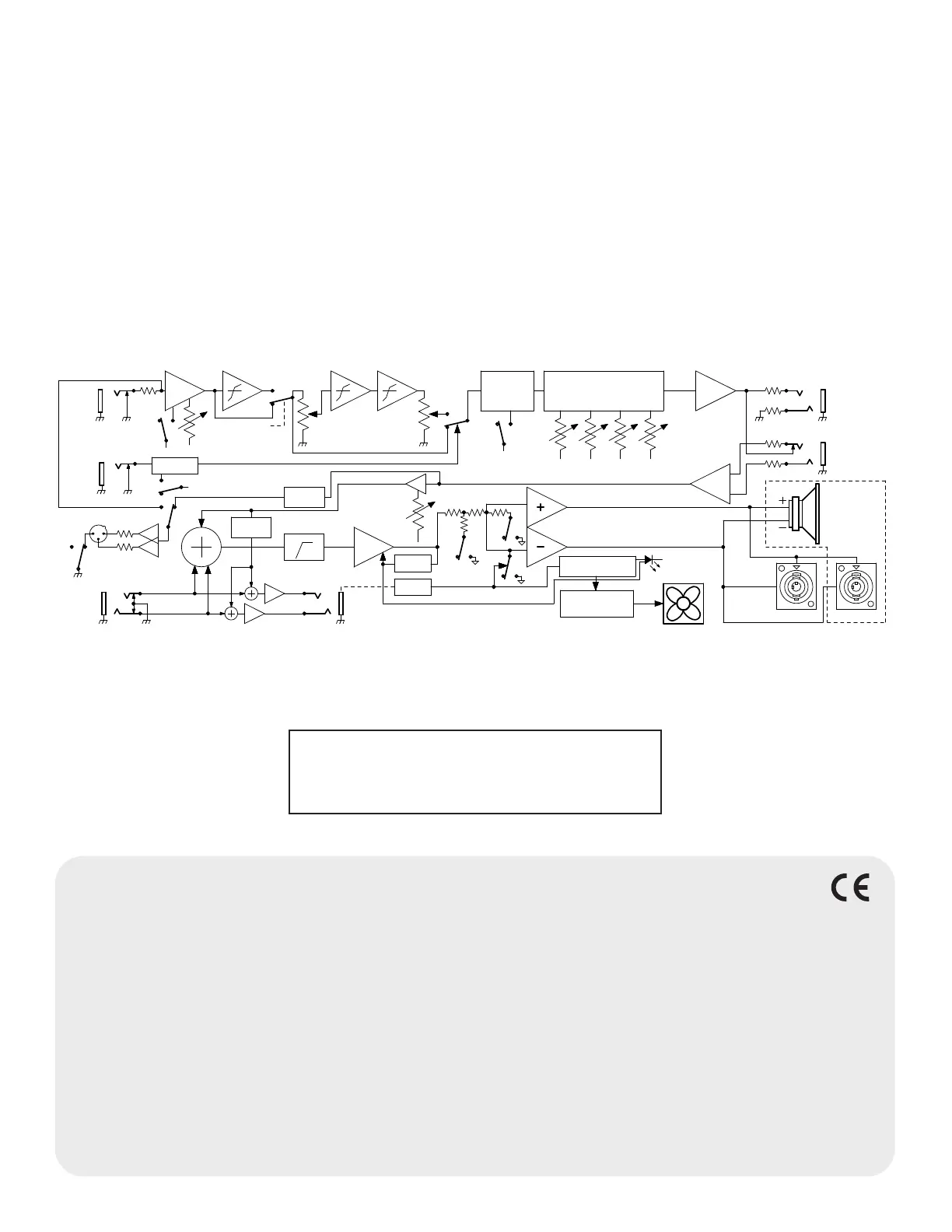

BLOCK DIAGRAM
For questions and troubleshooting,
contact a Fender specialist at:
--- (U.S. toll free)
--- (International)
The Rumble 800 Combo uses a class-D power amplier with thermal
and short circuit protection. In the event of a short circuit, the
amplier will temporarily mute (no sound from speakers; power
indicator illuminates solid amber) and resume normal operation
when the fault is removed (power indicator returns to solid red).
For increased thermal performance, the Rumble 800 combo has
variable-speed fan cooling that starts at low speed and increases as
amplier temperature rises with playing use.
Leave at least 6” clearance between the amplier vents and other
objects. If the amplier vents are blocked or if the amp is used
in an extremely hot environment, the amp may overheat and
trigger thermal protection, causing temporary speaker muting
(power indicator illuminates solid amber). Normal operation will
automatically resume after the temperature cools to a level within
operating range (power indicator returns to solid red).
Under the most severe operating conditions, the amp can overheat
to the point of interrupting power, resulting in no sound from the
speakers. In this unlikely event, normal operation will automatically
resume after the temperature cools to a level within operating range.
THERMAL PERFORMANCE AND PROTECTIONTHERMAL PERFORMANCE AND PROTECTION
CLIP DETECT
MASTER
PROTECTION
TEMP/OVERCURRENT
GND LIFT
LINE OUT
VOICING
FILTERS
CONTOUR
ACTIVE
EQUALIZATION
BASS LOW MID TREBLEHI MID
FTSW
HP DETECT
FTSW LOGIC
INPUT
AUX IN
2nd ORDER HPF
SPEAKER
CAB SIM
CAB SIM
SPEAKER
VINTAGE
HD
8 OHM
4 OHM
LOWFULL
OUTPUT
(2X HD ONLY)
EXT SPKR
(combo only)
SPEAKERS
RED POWER
FLASH YELLOW
PEAK
DRIVE
MODIFIED
2 OHM - HD
8/4 OHM
IMPEDANCE
PROTECT
1-
1+
PRE POST
-
+
LEVEL
BRIGHT
FAN
1/4IN COMBO
SPEAKON
AMPLIFIER
FAN CONTROL
VARIABLE SPEED
FX RETURN
PHONES
STEREO HEADPHONE
CLASS-D POWER AMP
TM
DELTA-COMP LIMITER
FX SEND
OVERDRIVE
GAIN
YELLOW
12
3

Fender RUMBLE 800 COMBO Specifications

General

Power	800 Watts
Headphone Output	Yes
Effects Loop	Yes
Type	Solid State
Effects	Overdrive
Cabinet Material	Lightweight Plywood
Outputs	XLR DI out
Controls	Gain, Contour, Vintage, Drive, Bass, Low-Mid, High-Mid, Treble, Master Volume
Dimensions	14" (35.6 cm) Depth
Speakers	2 x 10" Eminence Neodymium
