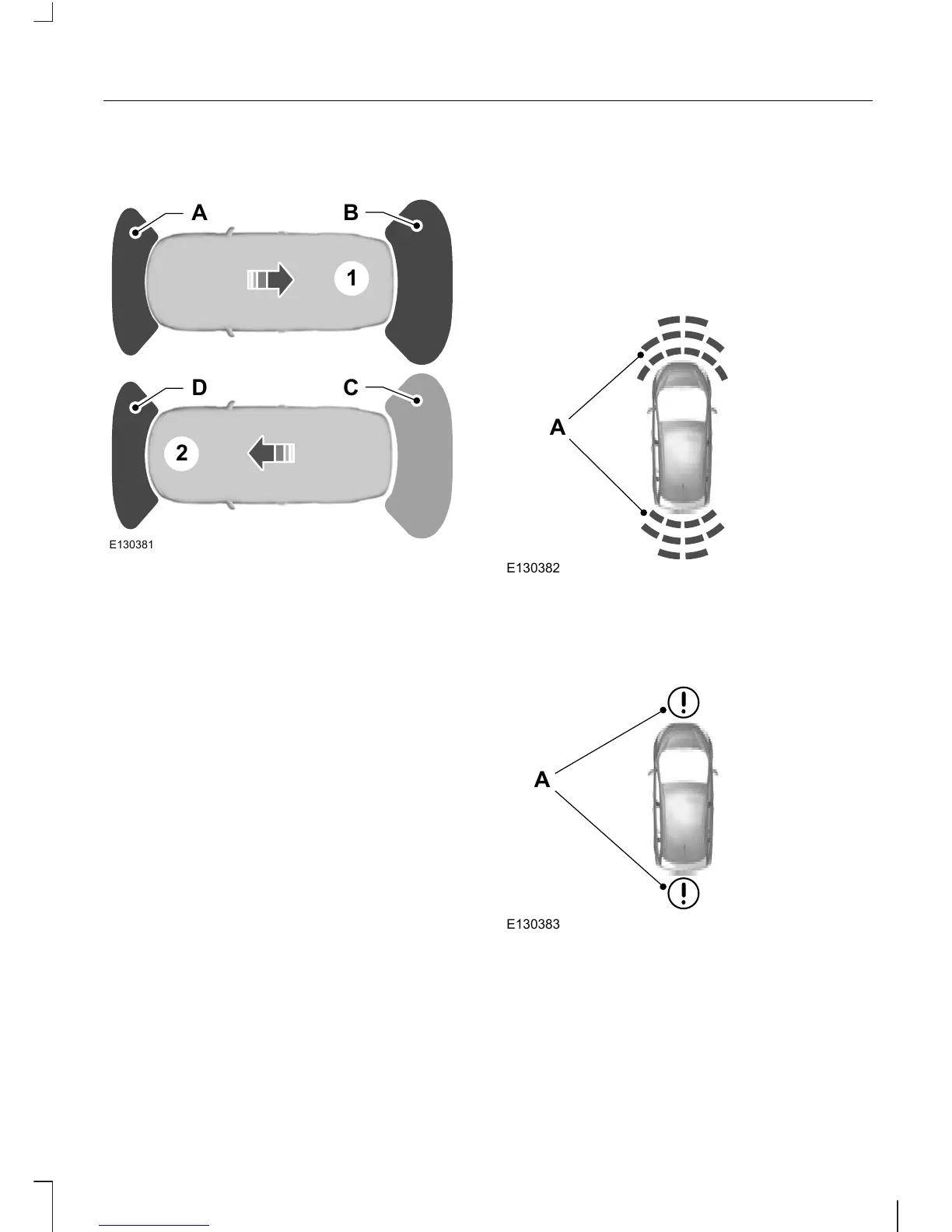

Reverse gear selected1
Neutral or forward gear
selected
2
Display and toneA
Display and toneB
Display onlyC
Display and toneD
You will hear an intermittent tone at a
distance of approximately 150
centimetres (59 inches) between the
obstacle and rear bumper, approximately
80 centimetres (31 inches) between the
obstacle and front bumper and
approximately 50 centimetres (20 inches)
to the side. Decreasing the distance
accelerates the intermittent tone. A
continuous tone will start at a distance of
less than 30 centimetres (11 inches) to the
front or rear bumper.
Note:
On vehicles with a tow bar fitted
and approved by us the continuous tone
will start at a distance of 45 centimetres
(18 inches) from the rear bumper.
You will hear an alternating tone from the
front and rear if obstacles are closer than
30 centimetres (11 inches) to the front and
rear bumpers.
Malfuction indicator.A
Note:
If a malfunction is indicated the
system will be disabled. Have the system
checked by a properly trained technician.
149
Parking aid
