Ford C-MAX 2010 User Manual

Engine oil dipstick
*
: See Engine oil check (page 190).
H
Screen washer fluid reservoir
*
: See Washer fluid check (page 191).
I
*
For easy identification, filler caps and the engine oil dipstick are marked in colour.

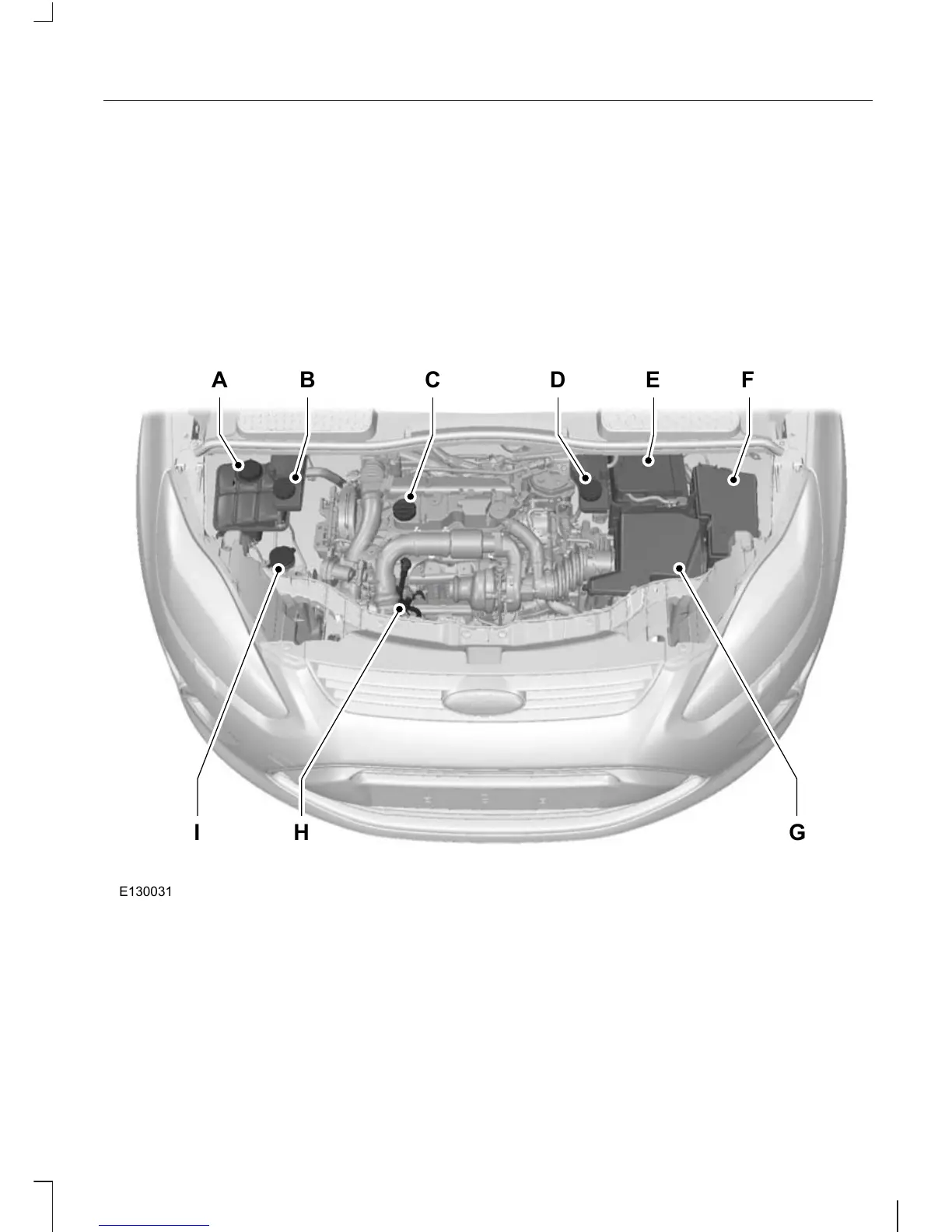

ENGINE COMPARTMENT OVERVIEW - 1.6L DURATORQ-TDCI
(DV) DIESEL
E130031
A B C D E F
GHI
Engine coolant reservoir
*
: See Engine coolant check (page 190).
A
Brake and clutch fluid reservoir (right-hand drive)
*
: See Brake and clutch
fluid check (page 191).
B
Engine oil filler cap
*
: See Engine oil check (page 190).
C
Brake and clutch fluid reservoir (left-hand drive)
*
: See Brake and clutch
fluid check (page 191).
D
187
Maintenance
