Ford KUGA - Luggage Compartment Fuse Box

To Next Page

To Previous Page

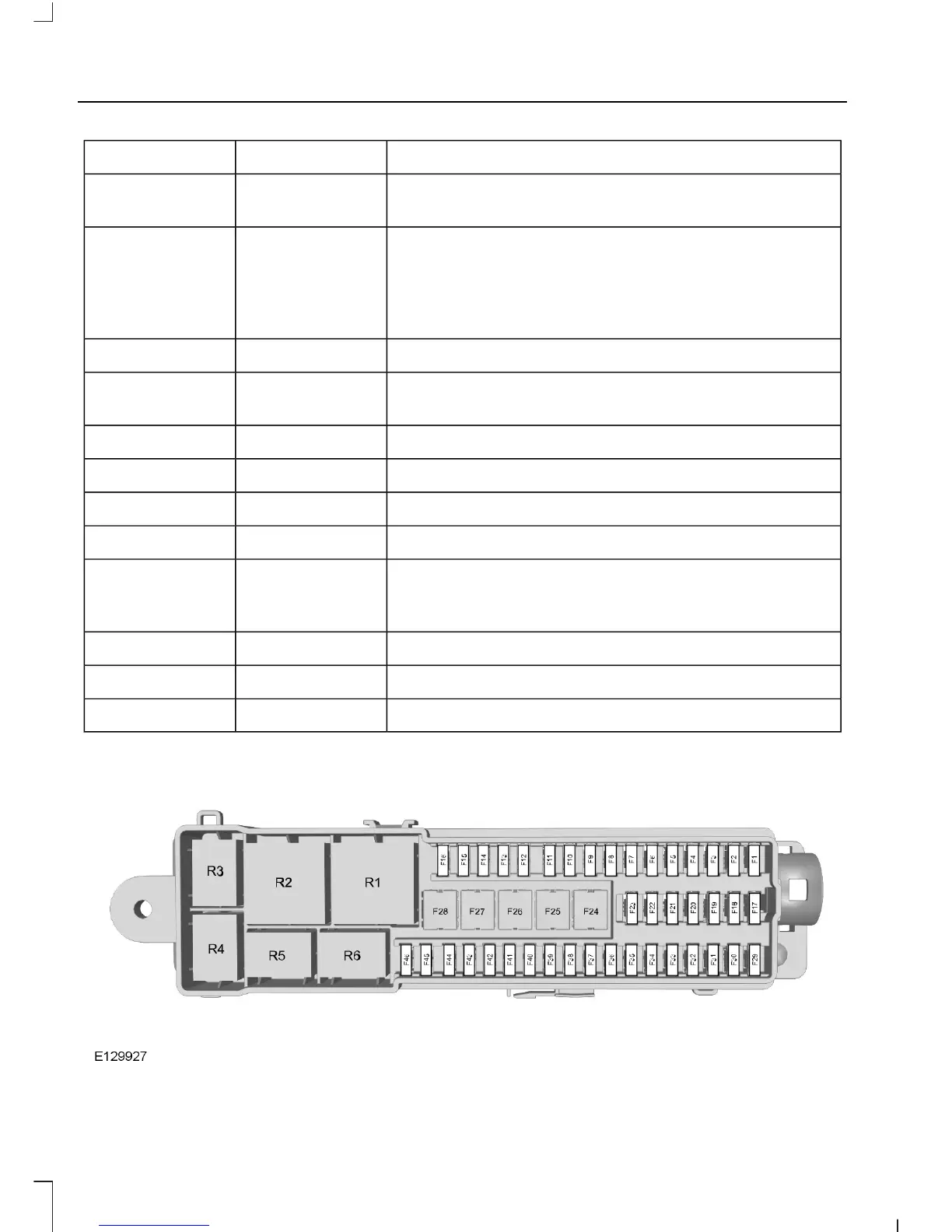

Circuits protectedFuse ratingFuse

Ignition switch.5AF78

Push button ignition switch.

Audio unit.15AF79

Navigation DVD player.

Touch screen.

Hazard flasher switch.

Door lock switch.

Moonroof.20AF80

Radio frequency receiver.5AF81

Interior motion sensor.

Windshield washer pump.20AF82

Central locking system.20AF83

Not used.-F84

Ignition switch.7.5AF85

Air bag module.10AF86

Occupant classification system.

Passenger air bag deactivation indicator.

Not used.-F87

Not used.-F88

Not used.-F89

Luggage Compartment Fuse Box
