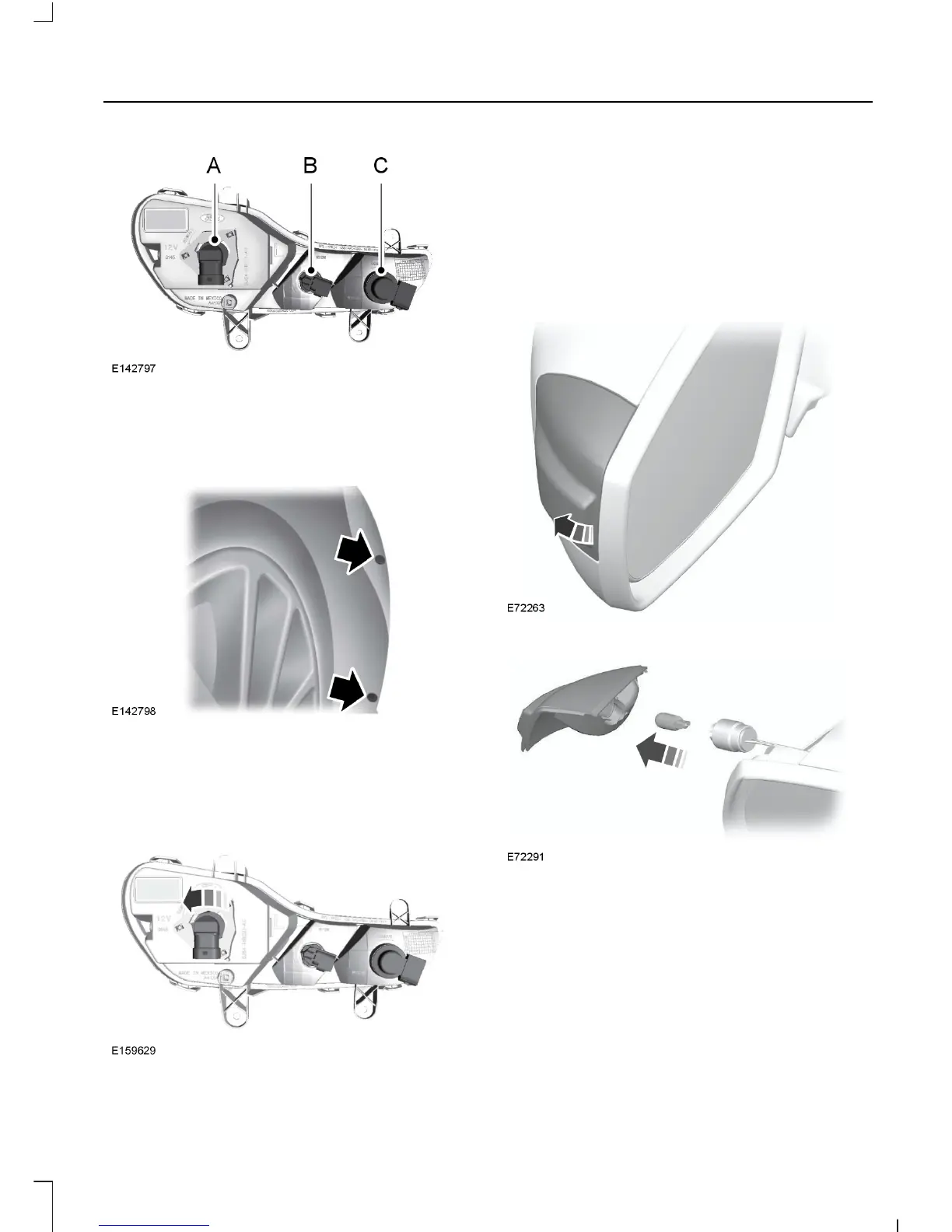

Fog lampA
Park lampB
Direction indicator lampC
1. Turn the steering wheel to full lock.
2. Remove the retaining clips from the
front wheel splash shield to gain
access to the lamp assembly.
3. Remove the bulb holder from the lamp
assembly by turning it
counterclockwise.
4. Disconnect the electrical connector.
5. Remove the bulb from the bulb holder
by pulling it straight out.
Side Repeater
1. Carefully remove the side repeater.
2. Remove the bulb holder.
3. Remove the bulb.
Approach Lamp
Note: Position the mirror glass as far inward
as possible.
193
Kuga (CBS) Vehicles Built From: 10-03-2014, Vehicles Built Up To: 31-12-2014, CG3585en enGBR, Edition date: 02/2014, None
