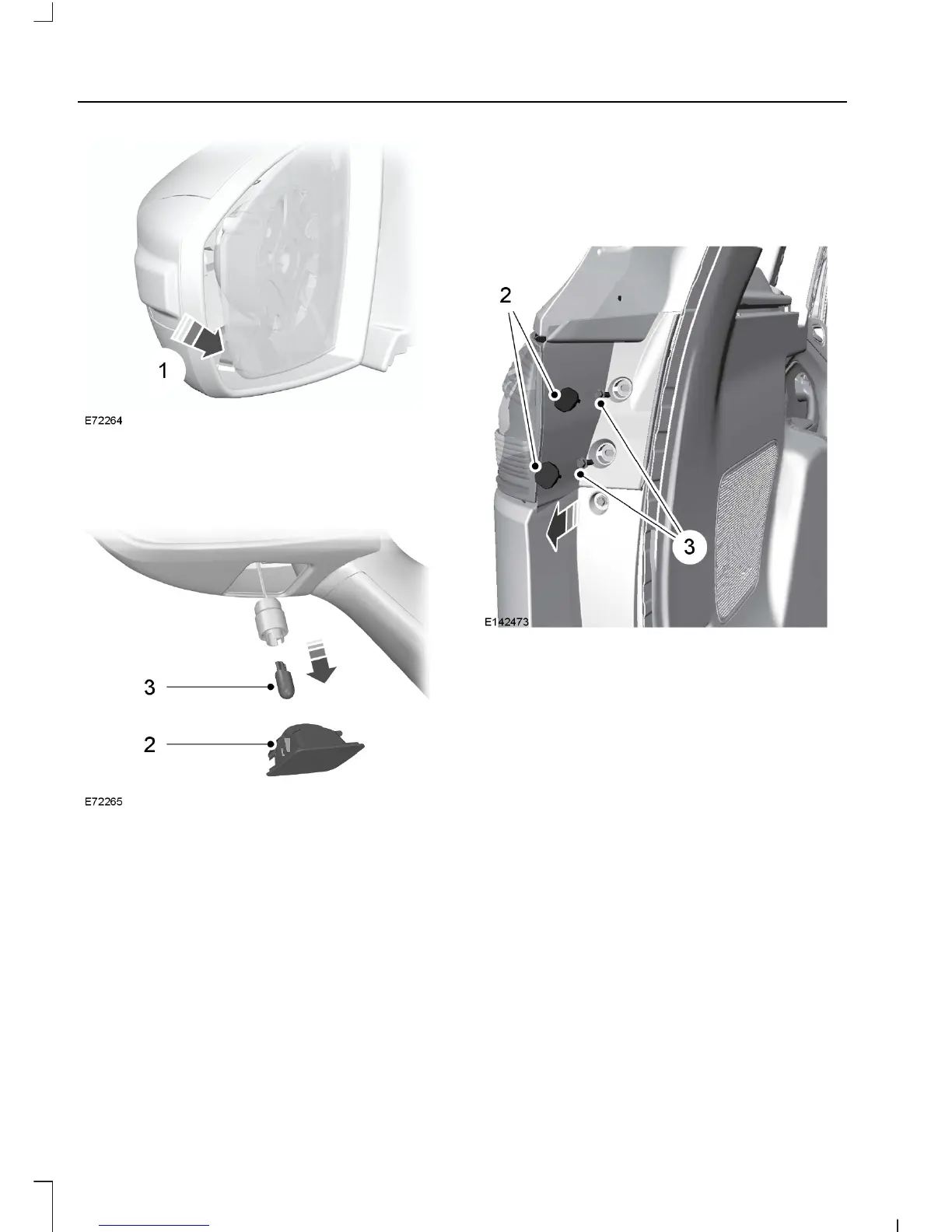

1. Insert a screwdriver into the gap
between the mirror housing and the
mirror glass and release the metal
retaining clip.
2. Remove the lamp.
3. Remove the bulb.
Rear Lamps
Type 1
Direction Indicator, Tail and Brake Lamp
1. Make sure the lighting control is in the
off position and open the liftgate.
2. Remove the two bolt covers using a
standard flat tip screwdriver.
3. Remove the two bolts from the lamp
assembly.
4. Gently pull the lamp assembly away
from your vehicle.
Type 2
Direction Indicator
Follow the same procedure as type 1 to
remove the direction indicator bulb.
Note: The tail and brake lamp bulbs are not
serviceable items, see an authorized dealer
if they fail.
194
Kuga (CBS) Vehicles Built From: 10-03-2014, Vehicles Built Up To: 31-12-2014, CG3585en enGBR, Edition date: 02/2014, None
