Fuji Electric FRENIC-Lift LM2A Series User Manual

2-2
2.2 Wiring
Follow the procedure below. In the following description, it is assumed that the inverter has already been
installed.
2.2.1 Removing the front cover
 Remove the keypad blind cover and loosen the screws
 Hold the right and left ends of the front cover and remove it.

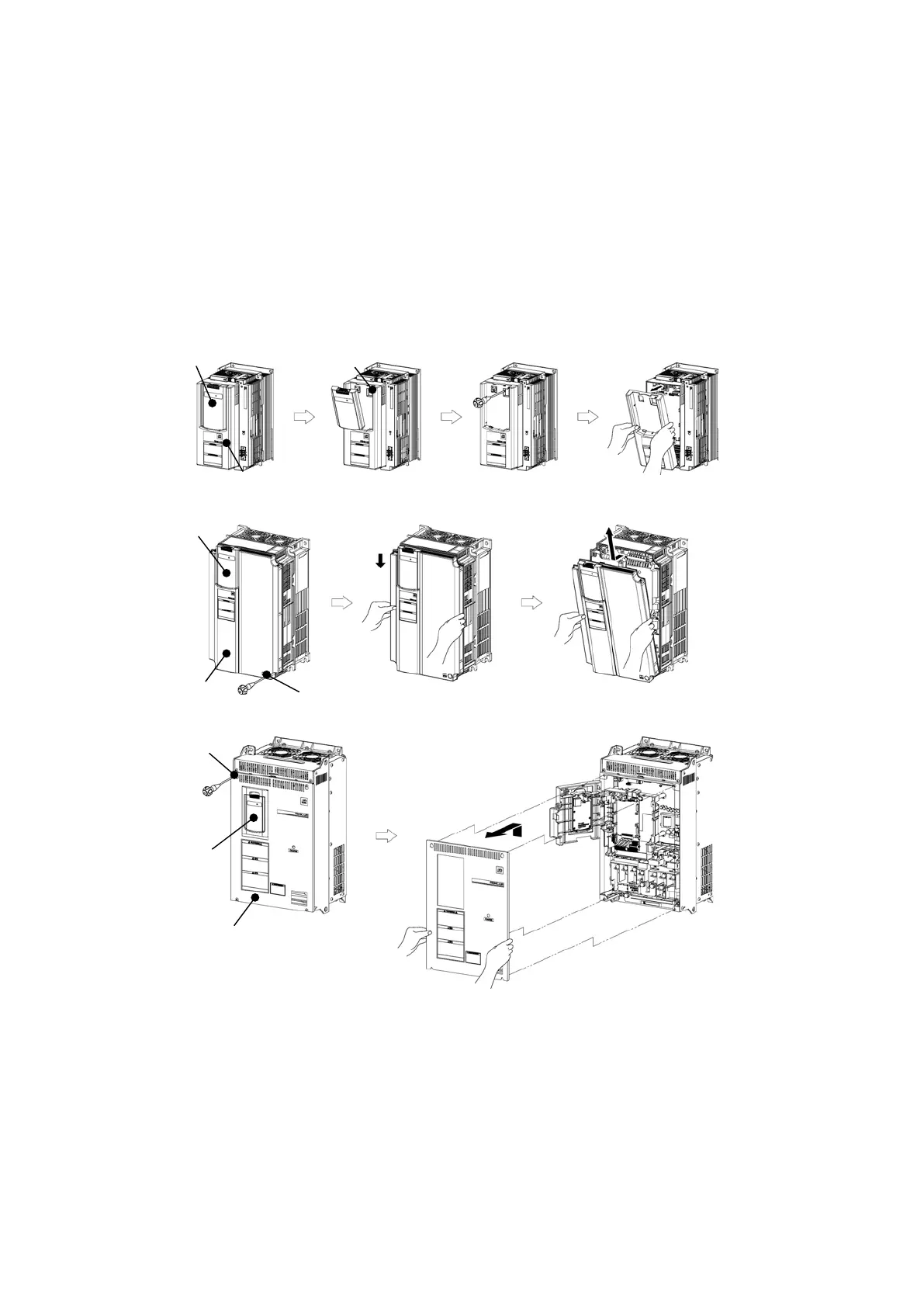

Figure 2.2 Removing the Front Cover
(FRN0011LM2A-7 / FRN0018LM2A-7□, FRN0006LM2A-4□to FRN0032LM2A-4□)
2.2.2 Mounting the front cover
After wiring, mount the front cover back into place.
(Tightening torque: 1.8N･m)
Blind cover
Front cover
Screw
(FRN0011LM2A-7□/FRN0018LM2A-7□,FRN0006LM2A-4□toFRN0032LM2A-4□)
(FRN0039LM2A-4□/FRN0045LM2A-4□)
Blind cover
Front cover
Screw
(FRN0060LM2A-4□toFRN0091LM2A-4□)
Blind cover
Front cover
Screw
