4 Handling the Rack after Installation 173
E

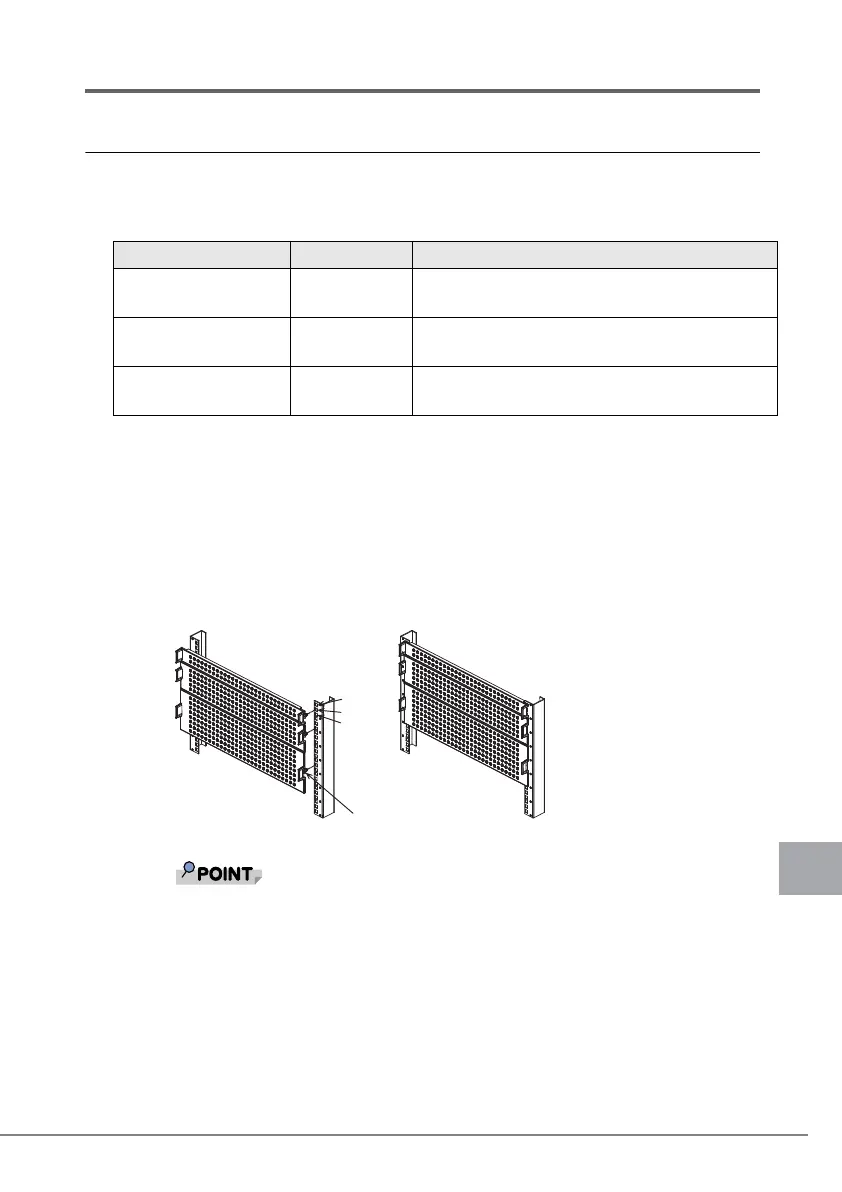

4.8 Mounting a Blank Panel
4.8.1 One-touch type
■ Confirming components
Confirm that all components have been delivered (see the table below).
■ Mounting a blank panel
1
From the front, mount a blank panel on the rack posts (front).
Fit the mating pins of the blank panel at the following locations, which differ depending on
the size of the blank panel.
・ 1 U: Two center holes on the left and right at 1 U
・ 2 U: Two lower holes on the left and right at 2 U
・ 3 U: Two center holes on the left and right at 2 U
The figure shows a general representation of 1 U, 2 U, and 3 U blank panels. In
actual work, select and mount the appropriate size of blank panel according to the
available space.
Component name Type name Component and quantity
1 U blank panel
19R-26BP1,
19RB26BP1
1 U blank panel
x 1
2 U blank panel
19R-26BP2,
19RB26BP2
2 U blank panel
x 1
3 U blank panel
19R-26BP3,
19RB26BP3
3 U blank panel
x 1
Blank panel (1 U)
Blank panel (2 U)
Blank panel (3 U)
After being attached
Mating pin
Upper hole
Lower hole
Center hole
