MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
FRESH AIR CONTROL OUTPUT

Compact Cassette Slim Duct Wall Mounted Floor / Ceiling Floor
Connector CN6 CN6 - - -
A signal linked to air conditioner indoor fan ON can be output.
* However, signal becomes OFF during cold air prevention control operation.

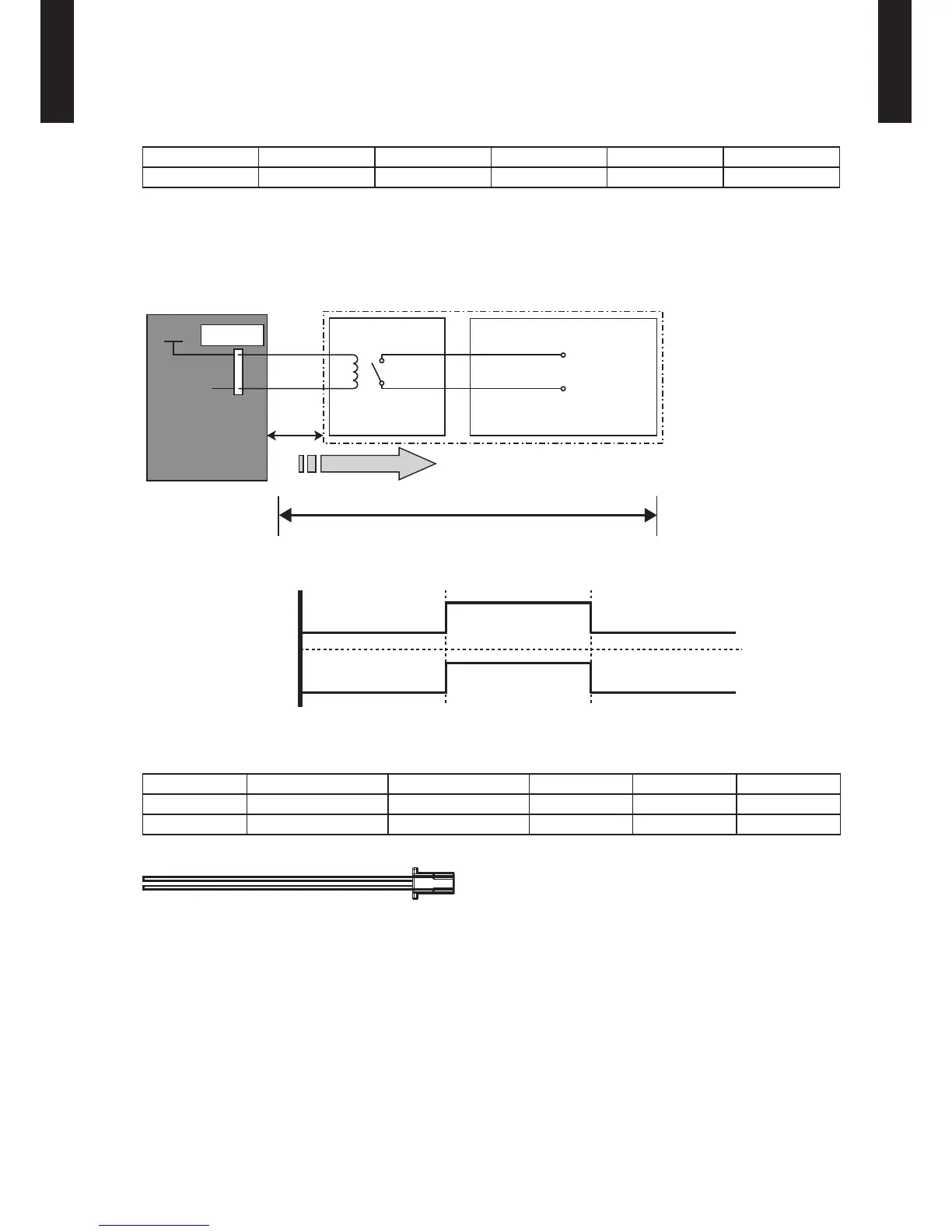

Circuit diagram example
z
* Make the distance from the PC board to the connected unit within 10 m.
Relay spec.: Rated DC 12 V, 50 mA to less.
ON
OFF
Operation
Stop
Indoor fan
Output signal
Parts (Optional)
z
Compact Cassette Slim Duct Wall Mounted Floor / Ceiling Floor
Parts name Fresh air intake kit External control set - - -
Model name UTZ-VXAA *1 UTD-ECS5A - - -
Note:
This wire is included in Fresh air intake kit (UTZ-VXAA).
Field supply
Indoor
control PC board
Connector
1
12 V
on/off
2
Signal
Relay
power
supply
Ex.) Fan
Connected unit
Ex.) Relay unit
*10 m
