- (01-28) -
MULTI TYPE
2, 3, 4 ROOMS TYPE
MULTI TYPE
2, 3, 4 ROOMS TYPE

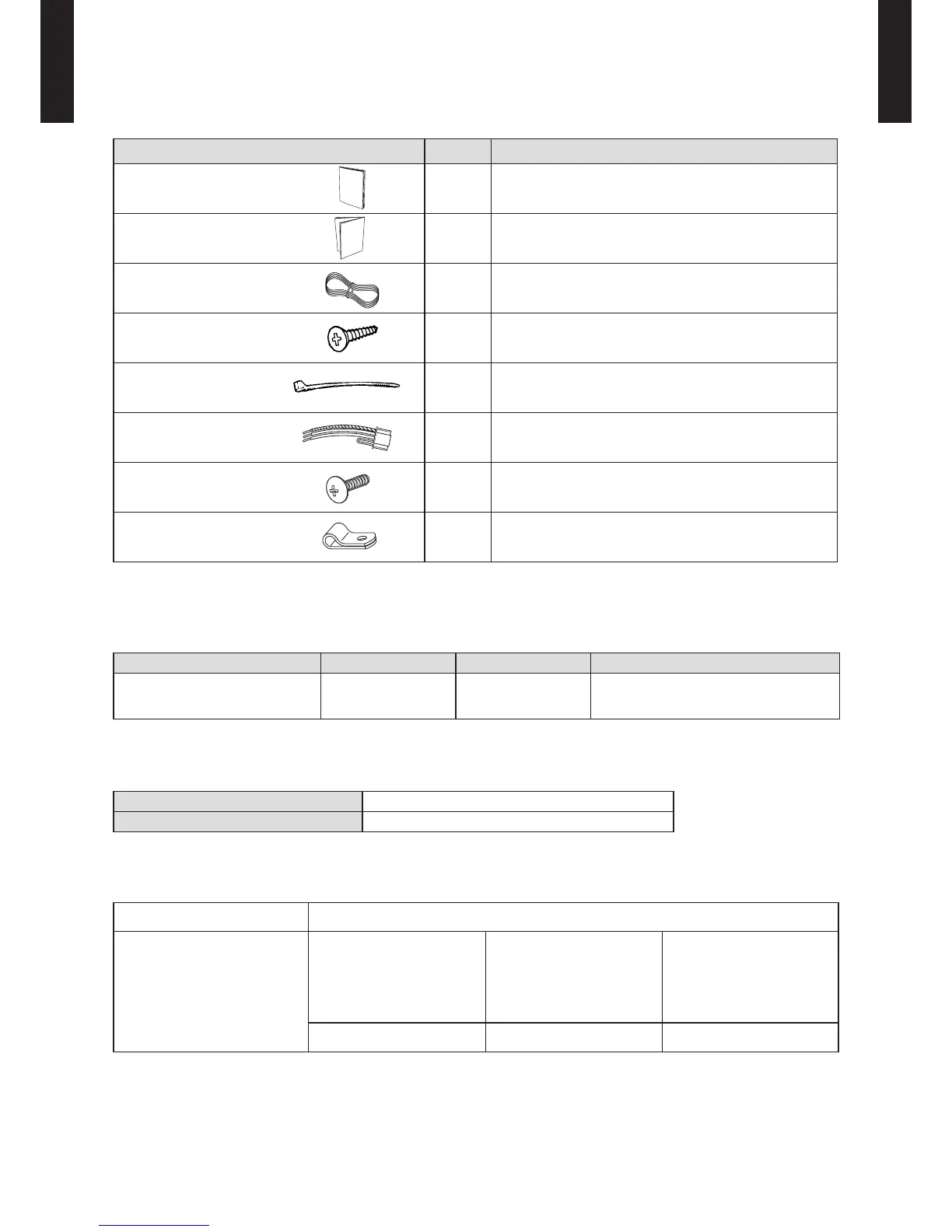

PACKING LIST
Name and shape Quantity Application
Operating manual 1
Installation manual 1
Remote controller cable
(10m)
1
For connecting the remote controller
Screw
(M4 x 16mm)
2
For installing the remote controller
Cable tie 1
To tie the remote controller and cables
Connecting cable *1 1
For connecting the remote controller cable to the
Wall mounted type indoor unit
Screw *1
(M4 x 14mm)
1
For installing the remote controller cable to the
indoor unit
Cable clamper *1 1
For installing the remote controller cable to the
indoor unit
*1: Use only if the remote controller cable must be modied for the indoor unit model.
WIRING SPECIFICATIONS
Use Cable size Wire type Remarks
Remote controller cable
0.33 mm
2
(22 AWG)
Polar 3 core Use sheathed PVC cable
SPECIFICATIONS
Dimensions [H x W x D]: (mm) 120 x 120 x 18
Weight: (g) 160
PART (OPTIONAL)
* The communication kit is necessary for connecting the wired remote controller to the Wall mounted type.
Wall mounted
Model name
AS
G07LJCA
AS
G09LJCA
AS
G12LJCA
AS
G07LUCA
AS
G09LUCA
AS
G12LUCA
AS
G14LUCA
AS
G07LMCA
AS
G09LMCA
AS
G12LMCA
AS
G14LMCA
UTY-XCBXZ1 UTY-TWBXF UTY-XCBXZ2
