Fujitsu AB*G14LVTA User Manual

- (01-24) -
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
START/STOP button1
Pressed to start and stop operation.
SET TEMP. button2
Selects the setting temperature.
MODE button3
Selects the operating mode ( AUTO , COOL , DRY ,
FAN , HEAT ).
FAN button4
Selects the fan speed ( AUTO , HIGH
,
MED ,
LOW
, QUIET ).
Vertical air ow direction and swing button5
Press for two seconds to change the swing mode
Horizontal air ow direction and swing button6
Press for two seconds to change the swing mode.
Built-in thermo sensor7
Detects the room temperature.
TIMER MODE (CLOCK ADJUST) button8
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER)
Sets the current time.
DAY (DAY OFF) button9
Temporarily cancels one day timer.
SET BACK button10
Pressed to select the set back timer.
SET TIME button11
Pressed to set time.
TIMER DELETE button12
Deletes the weekly timer schedule.
TIMER SET button13
Sets the date, hour, minute and on-off time.
ECONOMY (THERMO SENSOR) button14
FILTER RESET button15
Operation lamp16
Lights during operation and when the timer is on.
Timer and clock indicator17
Operation mode indicator18
Fan speed indicator19
Operation lock indicator20
Temperature indicator21
Displayed temperature is set temperature.
Defrost indicator22
Indicates oil recovery and defrosting operation.
Vertical swing indicator 23
Horizontal swing indicator 24
Economy indicator25
Thermo sensor indicator 26
Filter indicator27

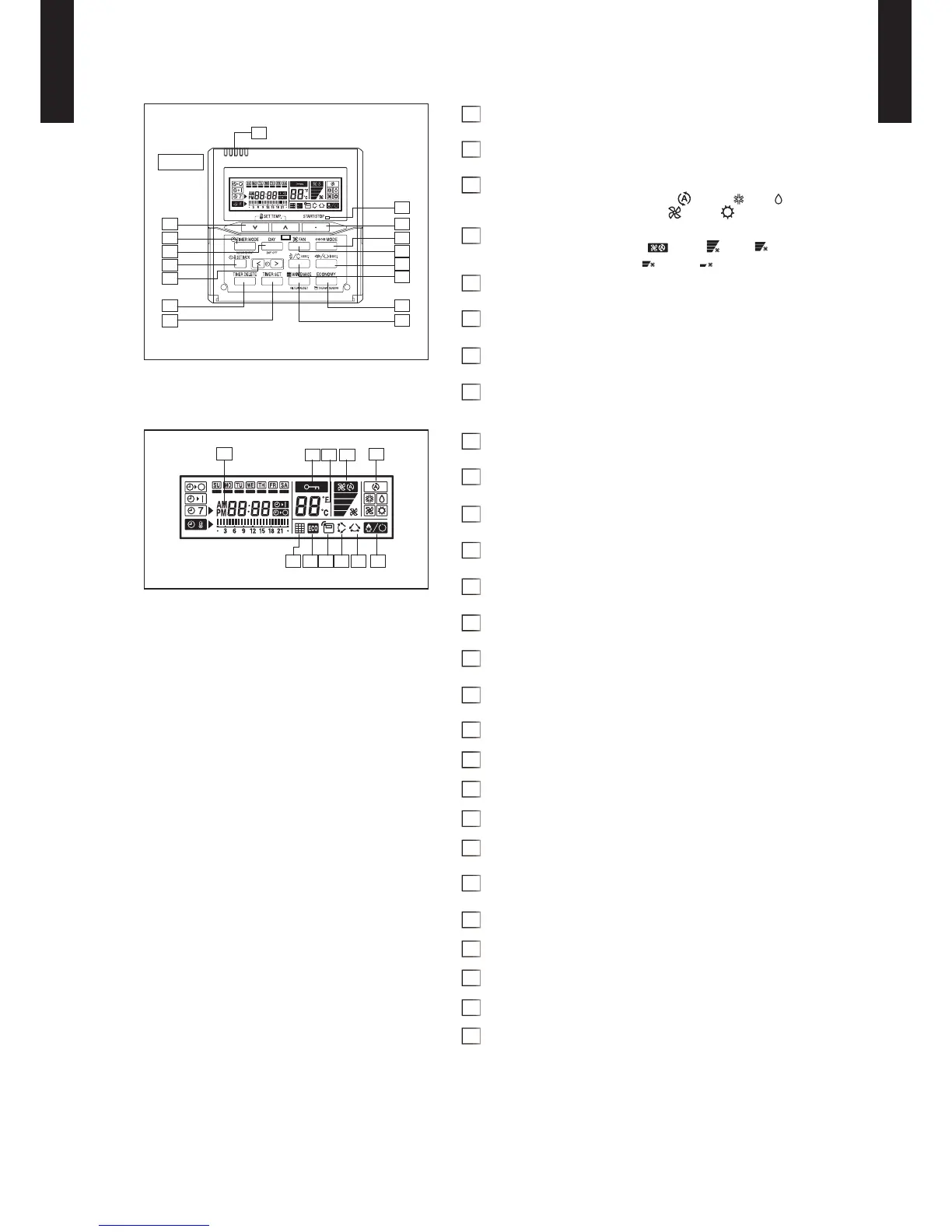

FUNCTIONS

Display panel
NOTE:
Functions will be different due to type of indoor unit.
For details, please see operation manual.
7
Display
13
12
11
10
2
8
9
16
15
14
1
3
5
4
6
18
17
1920 21
2223 242527 26
