Set Up the Cleaver

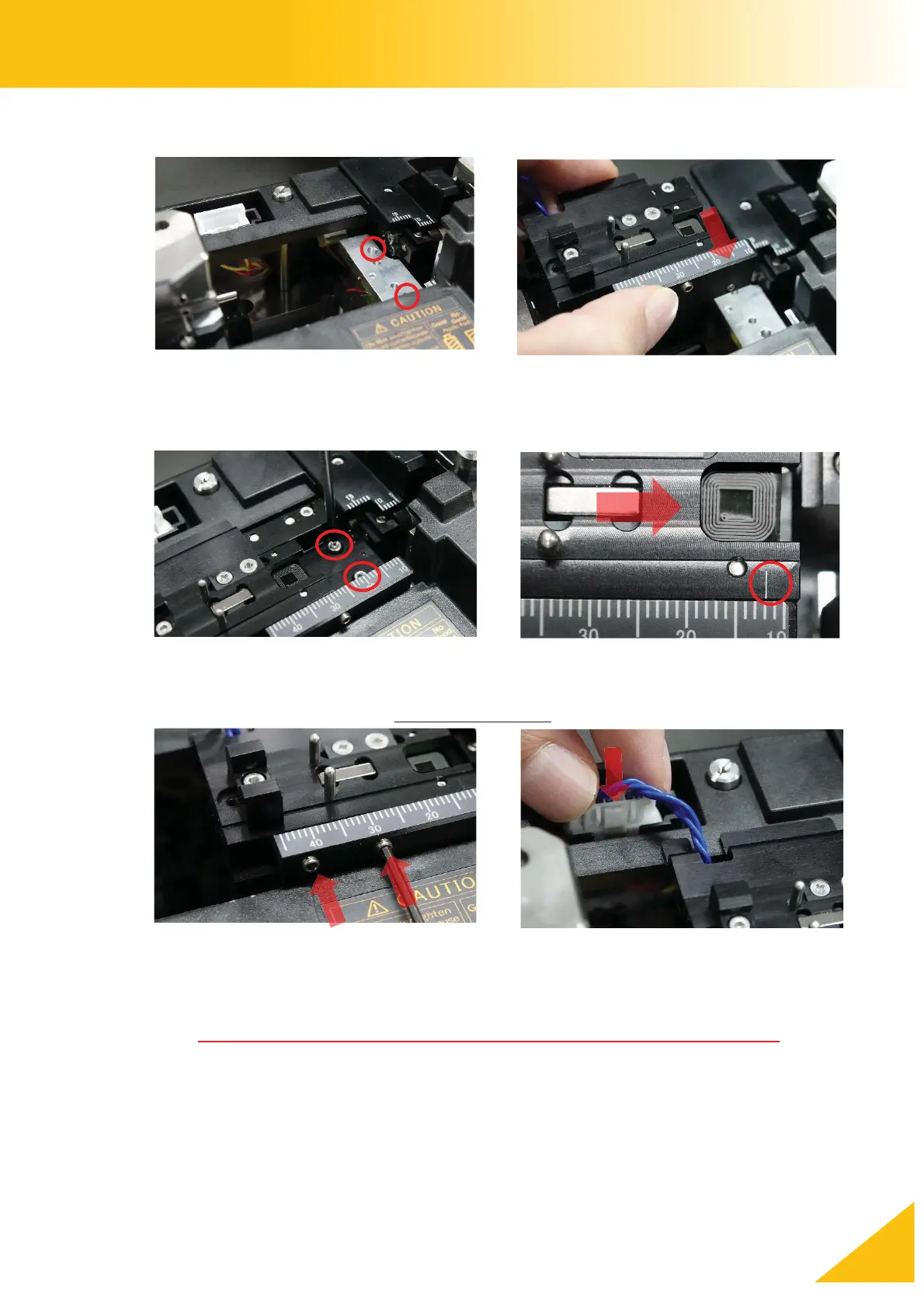

5. Align the two large pins in the underside of the Fiber Holder Adapter to the holes
shown below, circled in red.
6. Once set in place, tighten the two hex screws to secure the Fiber Holder Adapter.
Slide the Fiber Holder Adapter platform so that the mark is aligned to the 12mm
position. This is the standard fiber length used in the FSM-100M/P.
7. Tighten the two screws with red the arrows as shown below, then insert the
connector into the plug. Do not overtighten.
8. Turn the cleaver ON. The left clamp will move forward and stop at the back of the
Fiber Holder Adapter.
When removing the Fiber Holder Adapter, follow the same process as above.
