Removing and installing components
during servicing
Installing a memory m odule
2
a
1

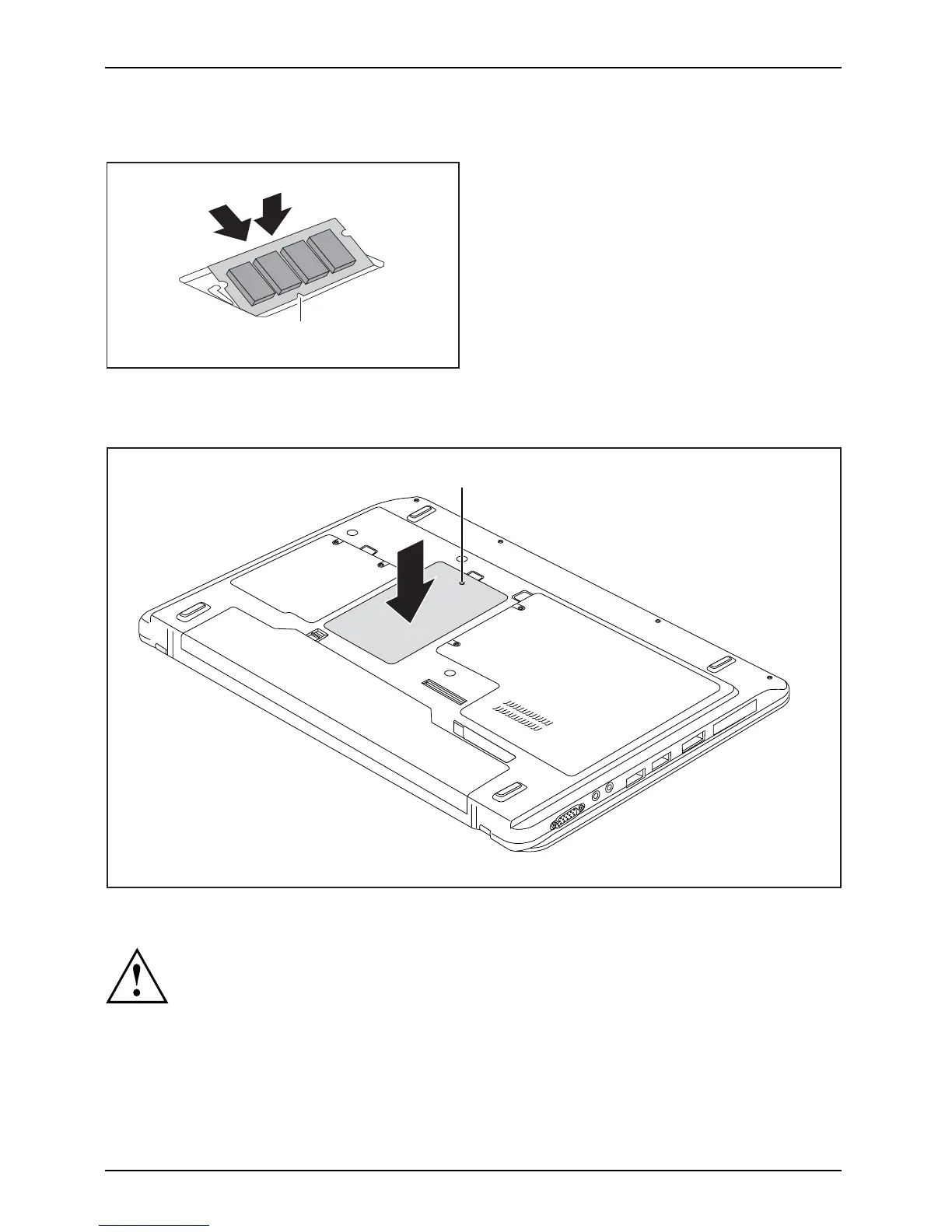

► Insert the memory m odu le with the contacts
and the recess (a) facing the slot (1).
MemoryexpansionMemorymodule
► Carefully push the memory module
downwards until you feel it click
into place (2).
Attaching the cover
2
1
► Place the cover in the correct slot (1).
If you remove more than one component at the s ame time, keep the screws for the
individual components separate from each other and make sure that you use the correct
screws. If you install the wrong screws, c ompone nts may be d amaged.
► Tighten the screw (2).
