- Device Ports
HDMI Port
Internal LAN (RJ-45) Jack
The internal LAN (RJ-45) jack is used for a Gigabit (10/100/1000) Ethernet LAN connection. You may
need to configure your notebook to work with your particular network. (Refer to your network
administrator for information on your network configuration.)
The High-Definition Multimedia Interface
(HDMI) port is a digital audio/video interface
over which uncompressed streams can be
transmitted. HDMI is used to connect compatible
digital devices with your computer (such as a big-
screen TV).
To connect an HDMI device:
1 Align the connector with the HDMI port opening on
the left side of the system.
2 Push the connector into the port until it is seated.

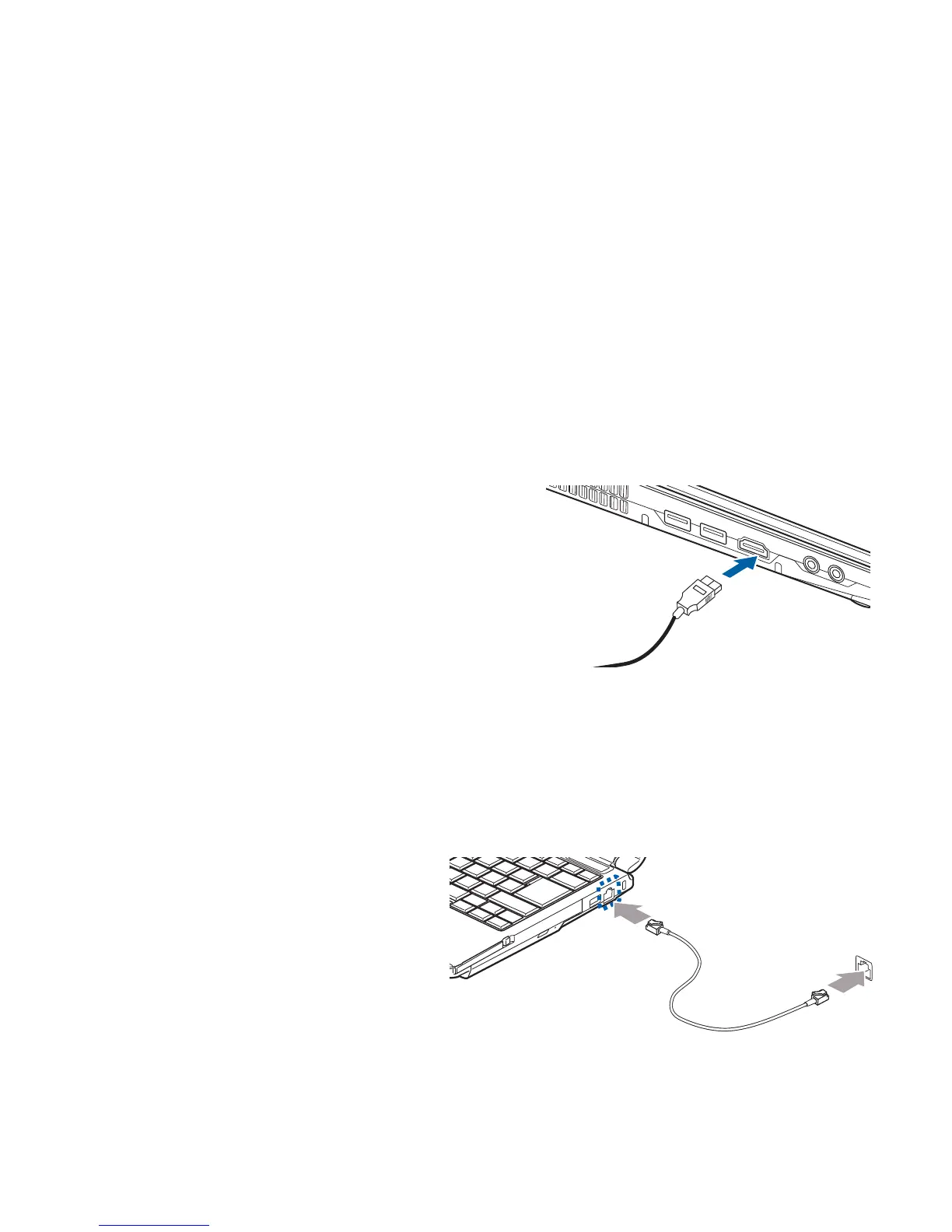

Figure 37. HDMI Interface
To connect the LAN cable follow
these easy steps:
1 Align the connector with the port
opening.
2 Push the connector into the port
until it is seated.
3 Plug the other end of the cable
into a LAN outlet.
Figure 38. Connecting LAN Device
